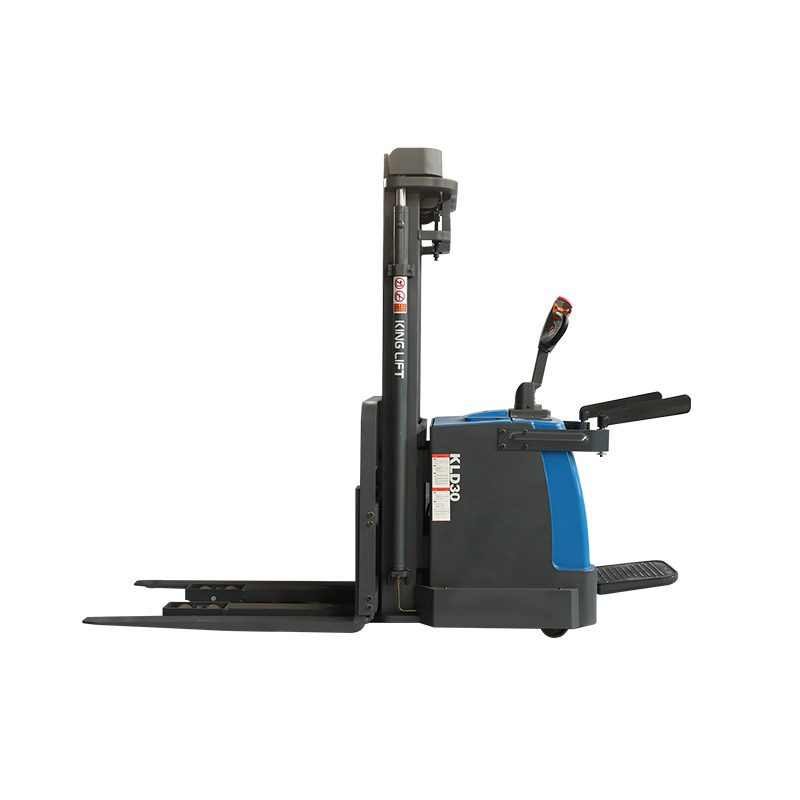

KLD-30 Series 3T 1.6m-5.5m Electric Fully Stacker 3000KG

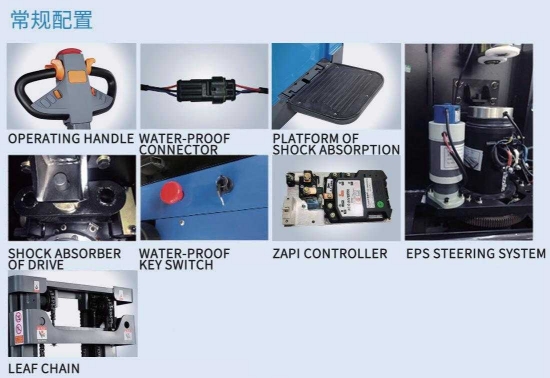

BRIEF INTRODUCTION OF PRODUCT:
1.Our product is not only comfortable but also incredibly easy to operate with the help of an operating handle.
2.With the EPS steering system, the steering force is significantly reduced, resulting in increased sensitivity and improved steering performance. This system also allows the vehicle to slow down on its own, making it easier and safer to control.
3.The vertical drive of the AC motor eliminates the need for carbon brushes, enhancing its startability and regenerative braking capabilities. This not only increases work efficiency but also extends the service duration of the product, making it more energy-saving.
4.Our product is equipped with top-notch components such as the ZAPI controller, Albright contactor, and water-proof amp connector assembly of power supply, ensuring reliable and efficient performance.

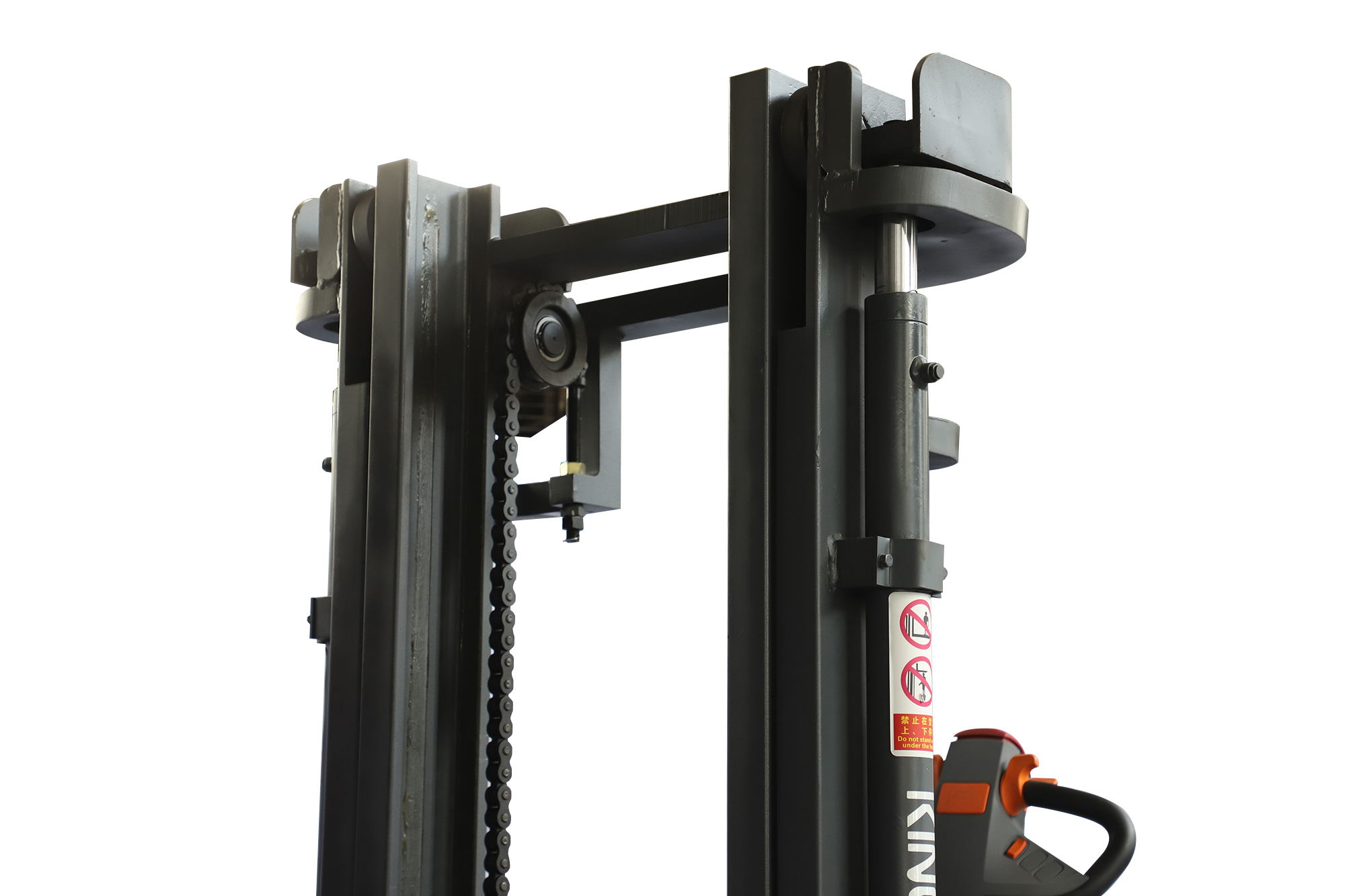

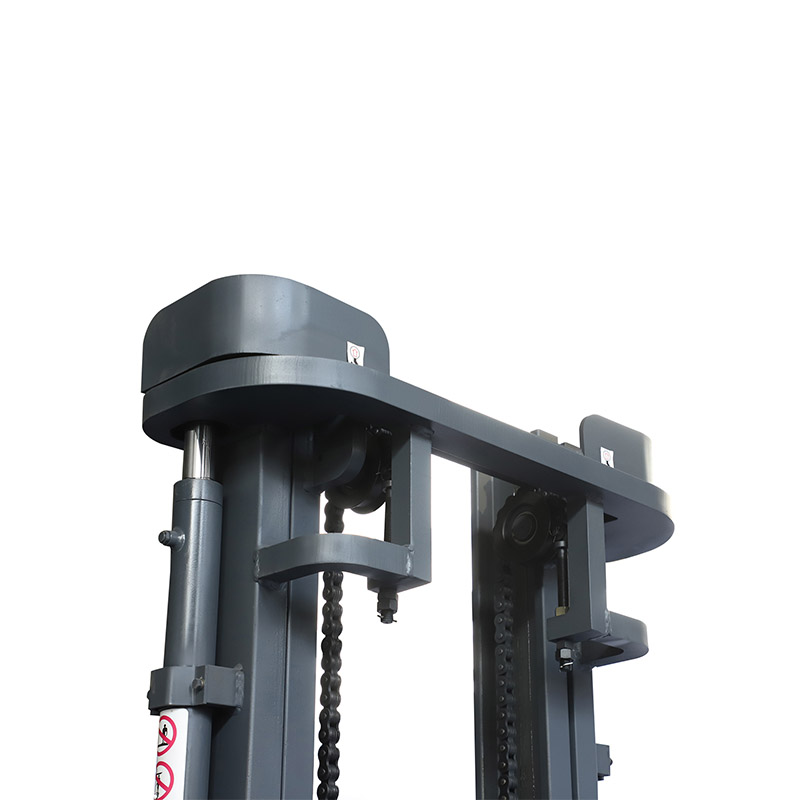

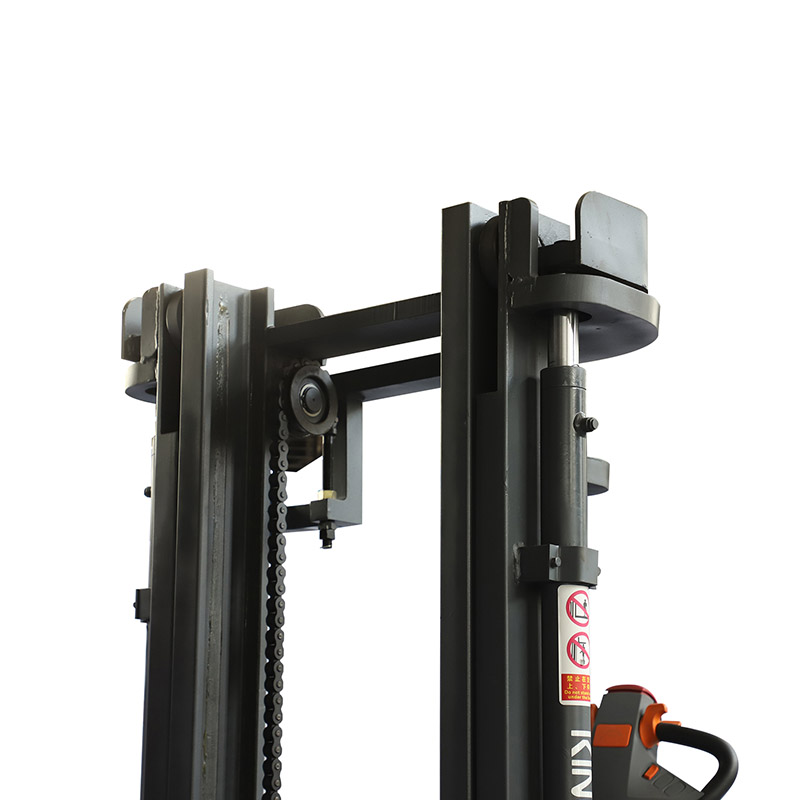

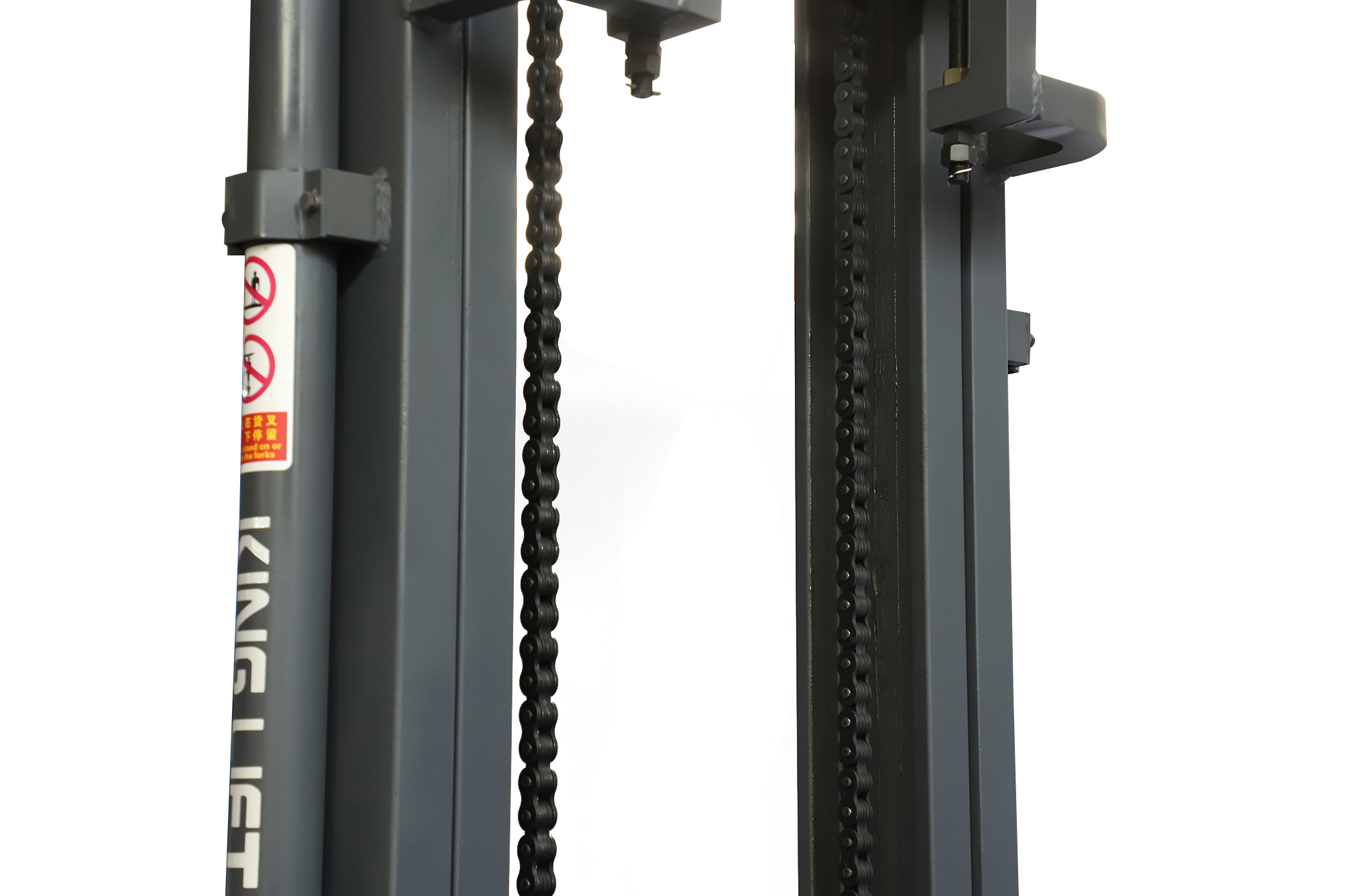

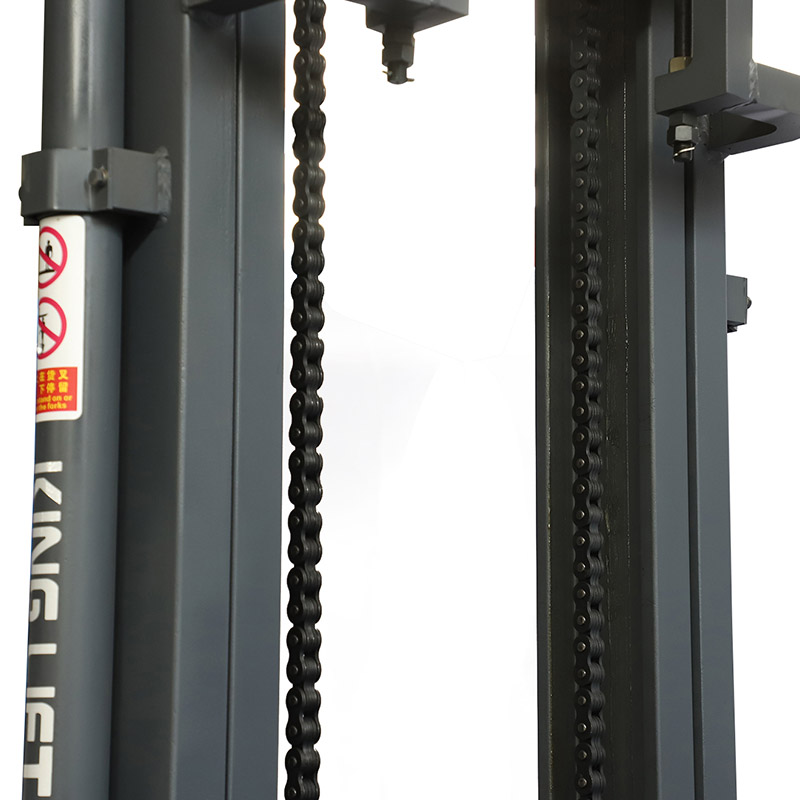

5.By adopting the national standard 1244 leaf chain instead of the traditional chain, our product enables safer lifting operations.
6.The unique drive shock absorption technology incorporated in our product ensures excellent trafficability, making it suitable for various terrains.

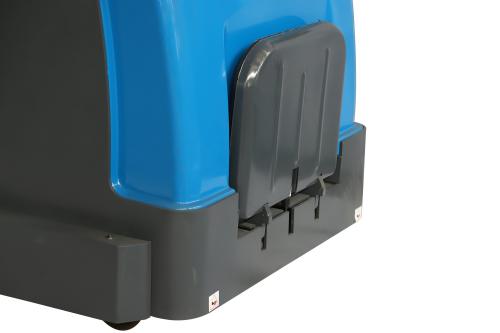

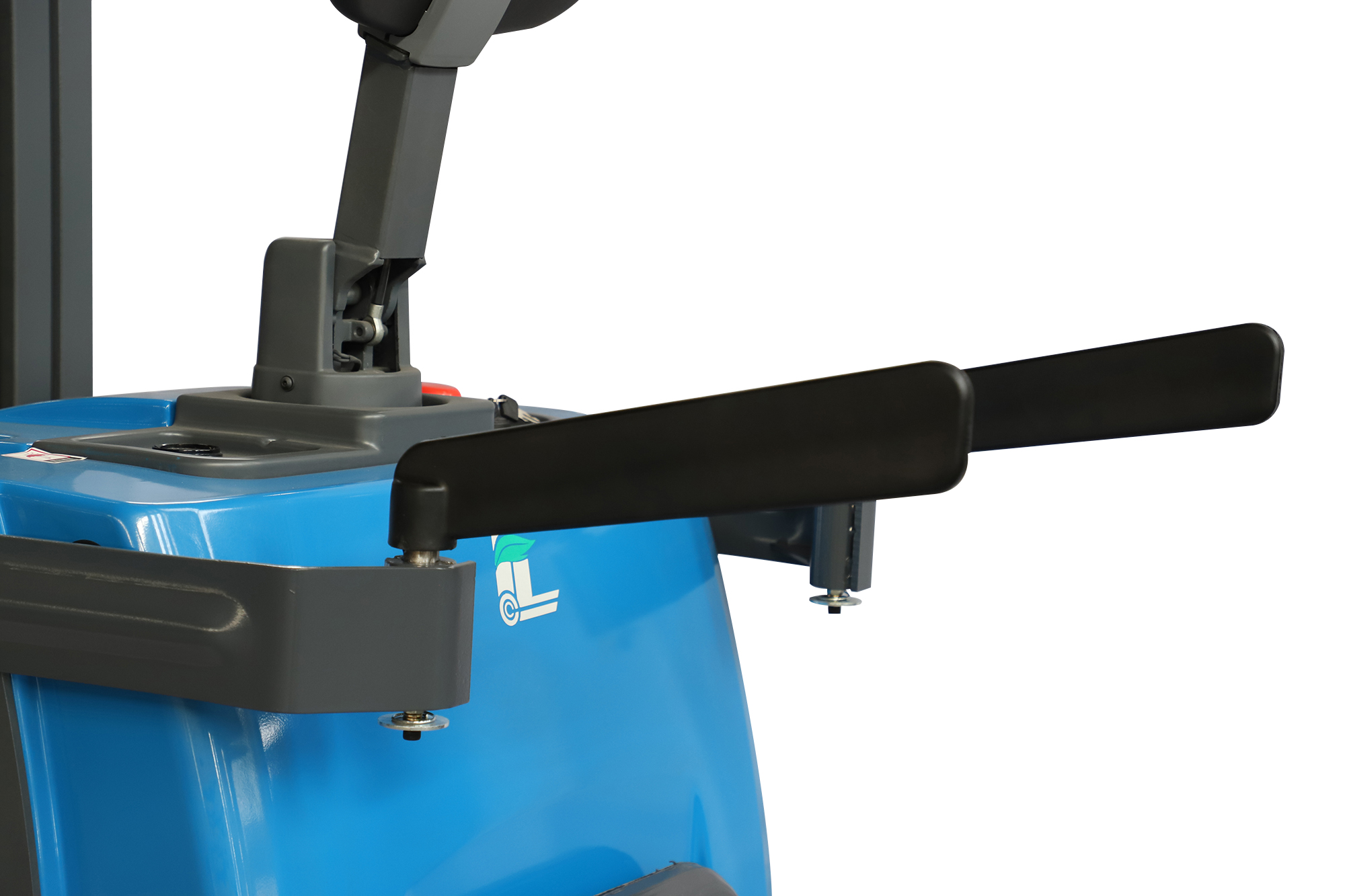

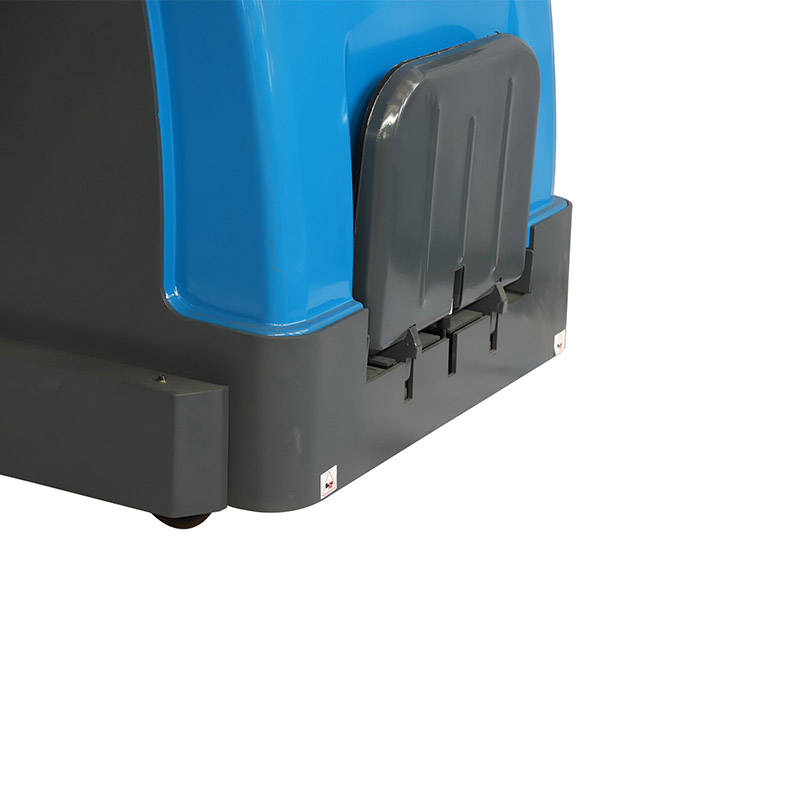

7.Our product features a folded rider platform with shock absorption, providing a comfortable and smooth ride. Additionally, it has an automatic power supply cut-off mechanism when reaching the top lifting height, adding an extra layer of safety.
OPTIONAL CONFIGURATION:
1.For those requiring refrigerated storage capabilities, we offer a special specification to meet these needs.
2.We also provide the option of an imported battery, guaranteeing high-quality performance.
3.If a higher capacity battery is desired, we offer options of 270AH or 300AH, ensuring longer usage time.
4.For customers looking for an environmentally friendly solution, our product can be equipped with a UHON battery.
5.For enhanced stability and versatility, wider straddle legs can be booked as an optional configuration.
Get A Quote
  • Product Details
  • Load Chart
  • Video
  • Contact Us
Model KLD30
Performance Maximum load capacity kg 3000
load center Q mm 500
Maximum lifting height H3 mm 2500
Travel speed (without load) km/h 6
Travel speed (with load) km/h 5.2
Lifting speed (without load) mm/s 107
Lifting speed (with load) mm/s 62
Lowering speed (without load) mm/s 54
Lowering speed (with load) mm/s 53
Gradeability (without load ) % 7
Gradeability (with load ) % 6
Service Weight (with battery) kg 1696
Dimensions Overall length of frame  L mm 2169
Overall length of frame(with platform) mm 2585
Overall width of frame  B mm 1046
Overall height when mast lowerd to lowest H1 mm 1934
Overall height when mast lifted to highest H4 mm 3513
Wheelbase Y mm 1596

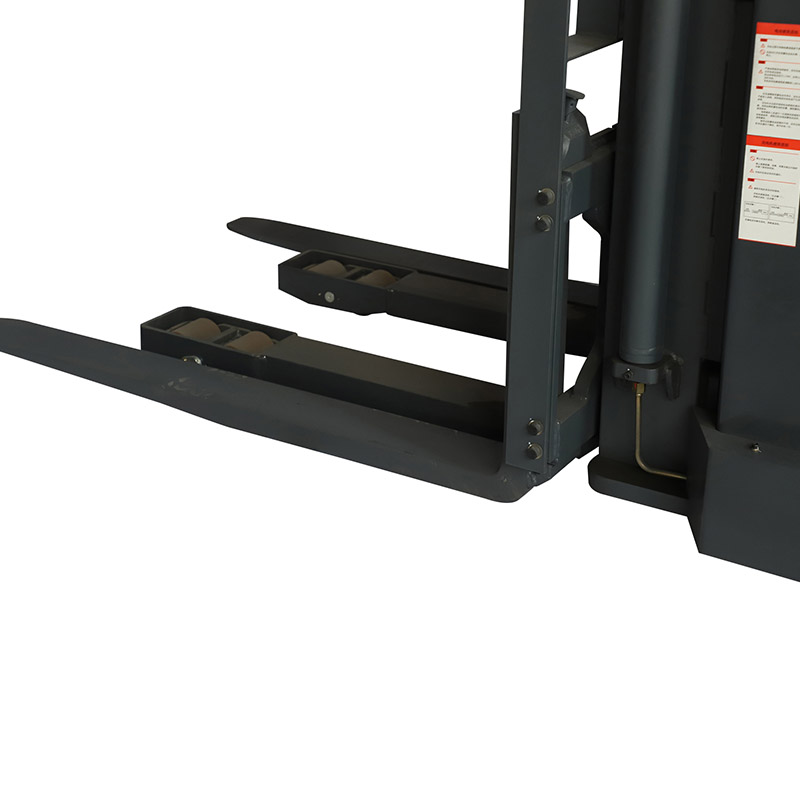

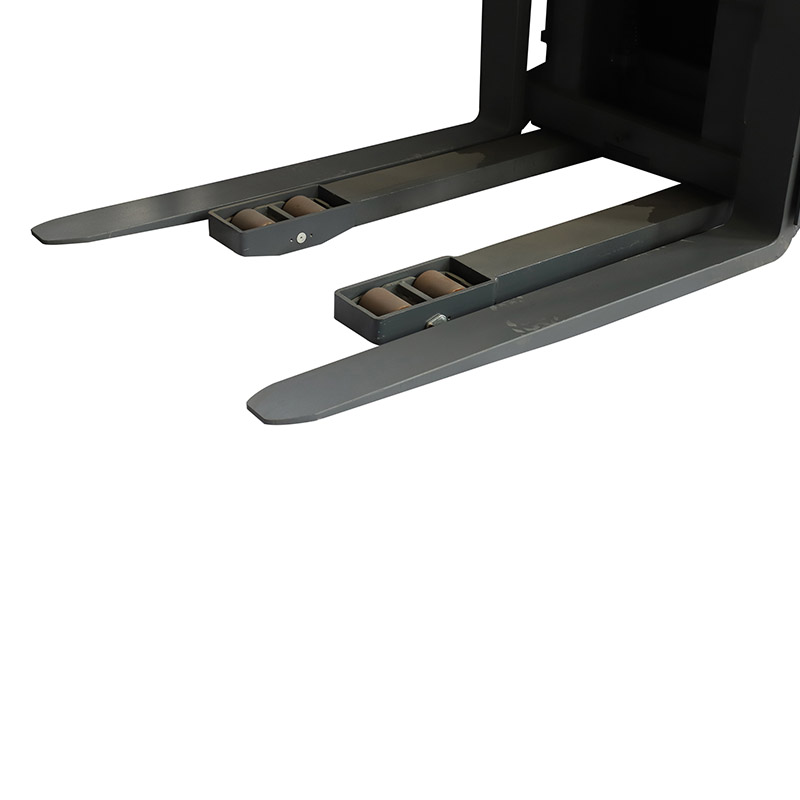

Fork length mm 1070
Fork outside width B1 mm 905
Fork inside width B2 mm 655
Fork thickness mm 45
Fork height when fork lowered to lowest mm 70
Min ground clearance mm 20
Theoretical width of minimum  aisle for right-angle  stacking (1200x1000) Asts mm 2550
Minimum turning radius (without platform) Wa mm 1893
Minimum turning radius (with platform)  Wa1 mm 2275
Tire Front wheel mm 85*95
Drive wheel mm 260*105
Caster wheel mm 130*55
Wheel material polyurethane
Electrical components Drive motor type  AC series motor
Rated output kw 3
Hoist motor type  DC series motor
Rated output kw 3
Battery    Voltag V 24
Capacity AH 210
Weight kg 195

Mast type Max fork height Mast lowered      Mast extended
KLD30 KLD30 KLD30
Simplex or Duplex mast   (2Stage)  2500 1934 3513
3000 2184 4023
3500 2434 4533
4000 2684 5043
