Wholesale KLD-N Series 1T-2T 1.6m-6m Fully Electric Stackers Applicable for single-faced pallet only Manufacturers, Factory

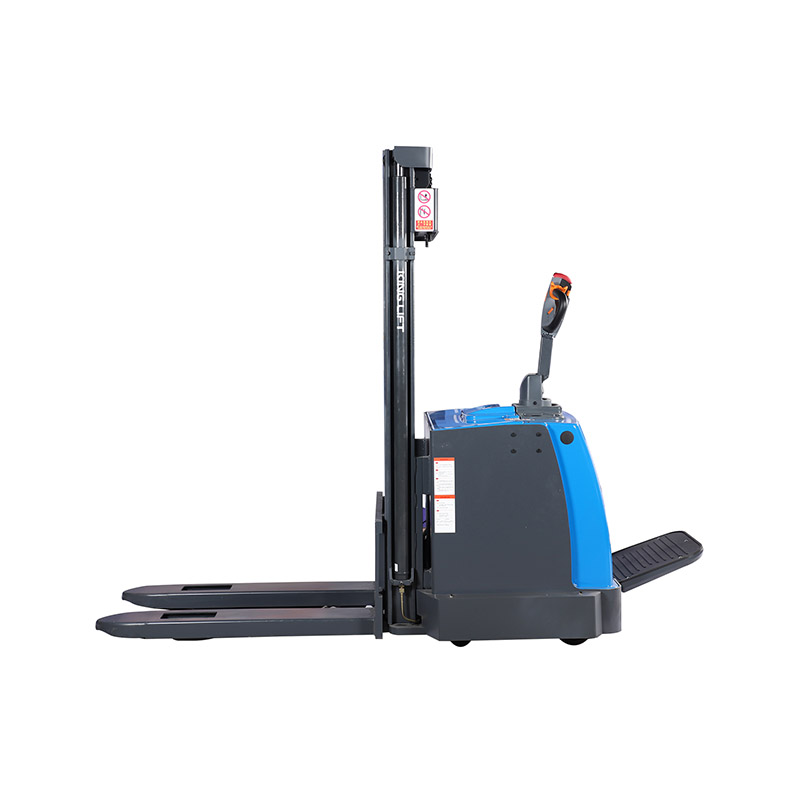

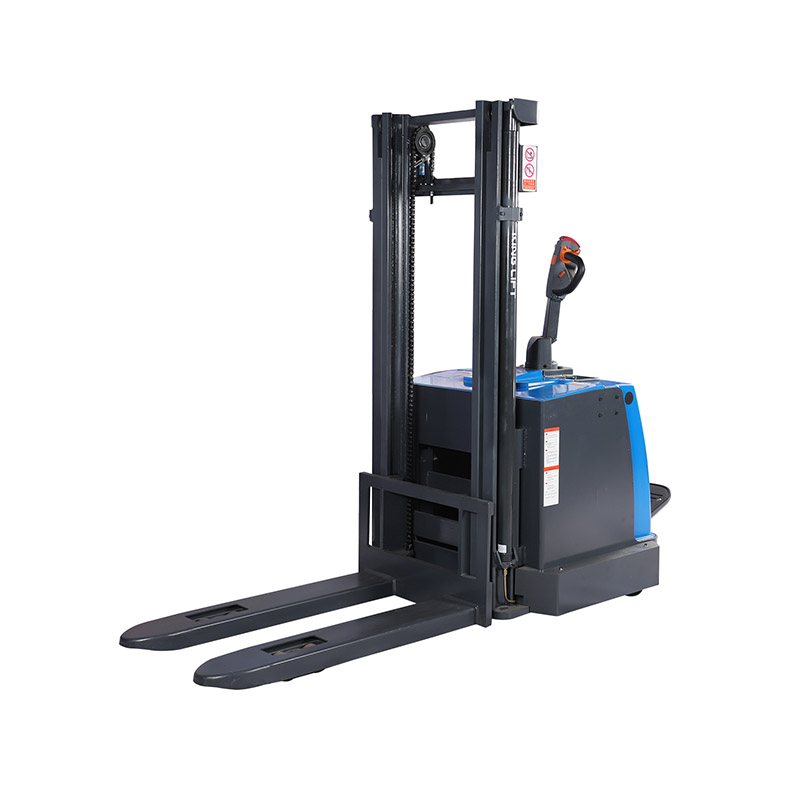

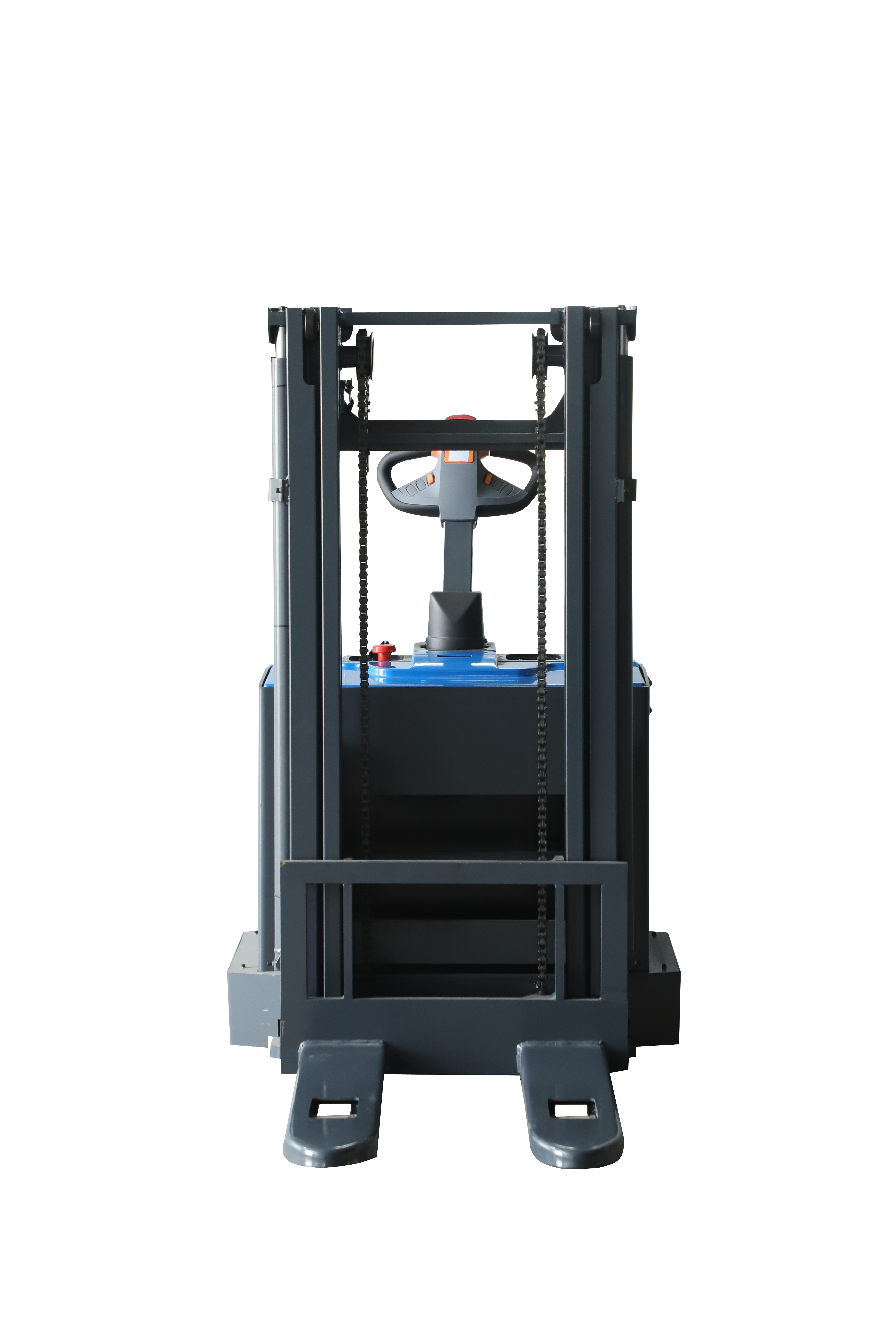

KLD-N Series 1T-2T 1.6m-6m Fully Electric Stackers Applicable for single-faced pallet only

速度

Get A Quote

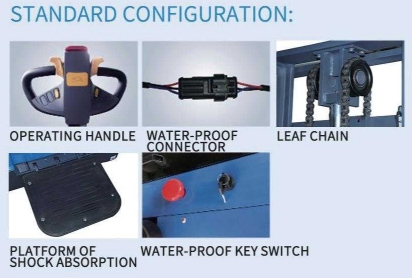

BRIEF INTRODUCTION OF PRODUCT:

1.This innovative product offers unparalleled comfort and ease of operation for operators, ensuring a seamless user experience.

2.With our cutting-edge EPS steering system, the steering force is significantly reduced, enhancing sensitivity and improving the performance of steering reversal. As a result, the vehicle automatically slows down on curves, making every operation easier and safer.

3.The vertical drive of our AC motor is designed without carbon brushes, providing a superior start function and regenerating braking function on ramps. This not only enhances work efficiency but also extends the service duration of the electric motor, while saving more energy.

4.Our product is equipped with top-notch components, including the renowned ZAPI controller, Albright contactor, and a waterproof connector assembly for the electric power supply. These high-quality components ensure reliable and efficient operation in various conditions.

5.This exceptional product boasts the use of the national standard 1223 leaf chain, replacing the traditional roller chain. This upgrade enables safer lifting operations for goods, ensuring maximum safety for operators.

6.With a folded rider platform featuring shock absorption, operators can enjoy a smooth and comfortable ride even on rough terrains. This additional feature adds to the overall ergonomic design of the product.

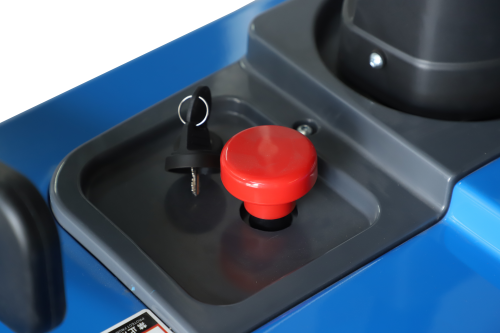

7.Safety is our utmost priority. Our product is designed to cut off the power supply itself at the top lifting height, ensuring the highest level of safety for operators and preventing any potential accidents.

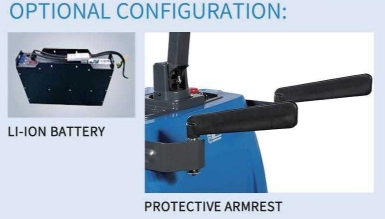

OPTIONAL CONFIGURATION:

1.For customers with refrigerated storage needs, we offer special specifications tailored to their requirements. These specifications guarantee optimal performance and reliability in temperature-controlled environments.

2.Our product can be equipped with imported batteries, further enhancing its efficiency and ensuring a longer operational time.

3.For those seeking extended battery life, we offer high-capacity batteries with options of 270AH or 300AH. These batteries provide a longer runtime, reducing the need for frequent recharging.

4.Our LHON battery option provides customers with a cutting-edge power source that offers exceptional performance and durability. This advanced battery technology ensures reliable operation and longer lifespan.

5.Customization is key, and we offer wider straddle legs to meet specific customer needs. These customized straddle legs provide enhanced stability, making the product suitable for a wider range of applications and environments.

Jiangsu Kinlift Equipment Co., Ltd.

Kinlift is China Wholesale KLD-N Series 1T-2T 1.6m-6m Fully Electric Stackers Applicable for single-faced pallet only Company and Wholesale KLD-N Series 1T-2T 1.6m-6m Fully Electric Stackers Applicable for single-faced pallet only Factory. Kinlift is a professional manufacturer of electric warehousing forklift equipment. It focuses on the research and development, production, and sales of light and small warehousing vehicles, and provides customers with special material handling and stacking optimization solutions. Its products include electric pallet trucks, All-electric stackers, reach electric forklifts, counterbalanced electric forklifts, electric tractors, and picking trucks that can also be customized according to customer requirements. Our users cover manufacturing, logistics, construction, Military industry, medicine, food, chemical industry, electronics, machinery, furniture, textile industry, chemical industry, metallurgy industry, energy industry, and many other industries. Kinlift has set up different corporate departments with excellent human resources plus sophisticated processing equipment, which is the guarantee and foundation for offering the customers all the superior products. The company has passed ISO 9001:2015 Quality Management Certification, and all the products of the electric forklift series have obtained a “ Special Equipment Manufacturing License Certificate”, in addition to possessing several Utility Model Patents issued by China National Intellectual Property Administration. The core values of KINLIFT are “ Quality, Reliable Technology, Sophisticated Management, Marketing of Service. The Credo of KINLIFT: Quality is Power, Service is Evergreen, and Customer is the Future.

Logistics and warehousing solutions:

Solution application: Our warehouse electric forklifts are suitable for various cargo handling, loading, unloading and storage needs in the logistics and warehousing industry. Whether inside the warehouse or in the logistics center, our forklifts can efficiently complete various tasks and improve logistics efficiency. Service advantages: We provide customized solutions, designed and adjusted according to your specific needs and warehousing environment. Our forklifts have excellent maneuverability and flexibility and can adapt to complex warehousing environments.

Retail and wholesale solutions:

Solution application: Our electric warehouse forklifts are suitable for the cargo handling, loading, unloading, and storage needs of the retail industry. Whether inside a warehouse or in a retail store, our forklifts can efficiently complete the loading and unloading of goods, inventory management, and replenishment tasks, improving the efficiency of retail operations. Service advantages: We understand the retail industry's requirements for logistics agility and accuracy, and our forklifts are characterized by quick response and flexible control.

Certificate of Honor

Model				KLD15N	KLD20N
Performance	Maximum load capacity		kg	1500	2000
	load center	Q	mm	600	600
	Maximum lifting height	H3	mm	2500	2500
	Travel speed (without load)		km/h	5.5	5.5
	Travel speed (with load)		km/h	5	5
	Lifting speed (without load)		mm/s	180	180
	Lifting speed (with load)		mm/s	120	120
	Lowering speed (without load)		mm/s	140	140
	Lowering speed (with load)		mm/s	114	114
	Gradeability (without load )		%	7	7
	Gradeability (with load )		%	6	6
	Service Weight (with battery)		kg	1354	1354
Dimensions	Overall length of frame	L	mm	2138	2138
	Overall length of frame(with platform)		mm	2555	2555
	Overall width of frame	B	mm	1046	1046
	Overall height when mast lowerd to lowest	H1	mm	1734	1734
	Overall height when mast lifted to highest	H4	mm	2976	2976
	Wheelbase	Y	mm	1508	1508
	Fork length		mm	1150	1150
	Fork outside width	B1	mm	680	680
	Fork inside width	B2	mm	300	300
	Fork thickness		mm	65	65
	Fork height when fork lowered to lowest		mm	90	90
	Min ground clearance		mm	20	20
	Theoretical width of minimum aisle for right-angle stacking （1200x1000）	Asts	mm	2470	2470
	Minimum turning radius (without platform)	Wa	mm	1800	1800
	Minimum turning radius (with platform)	Wa1	mm	2175	2175
Tire	Front wheel		mm	85*70	85*70
	Drive wheel		mm	230*75	230*75
	Caster wheel		mm	130*55	130*55
	Wheel material	polyurethane
Electrical components	Drive motor type	AC series motor
	Rated output		kw	1.5	1.5
	Hoist motor type	DC series motor
	Rated output		kw	3	3
Battery	Voltag		V	24
	Capacity		AH	210
	Weight		kg	195

Mast type	Max fork height	Mast lowered	Mast extended
Mast type	KLD15N/20N	KLD15N/20N	KLD15N/20N
Simplex or Duplex mast (2Stage)	2500	1734	2976
	3000	1984	3476
	3500	2234	3976
	4000	2484	4476
Triplex mast (3Stage)	4000	1814	4496
	4500	1984	4966
	5000	2154	5476
	5500	2314	5956
	6000	2484	6436

Lift Height(mm)	Load Center at 600 mm
Lift Height(mm)	KLR15	KLR20
1600	1500	2000
2000	1500	2000
2500	1500	2000
3000	1500	2000
3500	1300	1700
4000	1000	1400
4500	900	1000
5000	750	800
5500	650	700
6000	300	400

Model Overview
Model	Maximum capacity (kg)	Maximum lift height (mm)	Overall width (mm)	Travel speed (km/h)	Battery voltage (V)
KLA10	1000	4000	940	5.5	2.2
KLA15	1500	4000	940	5.5	2.2
KLA20	2000	4000	940	5.5	2.2
