Electric Pallet Stacker

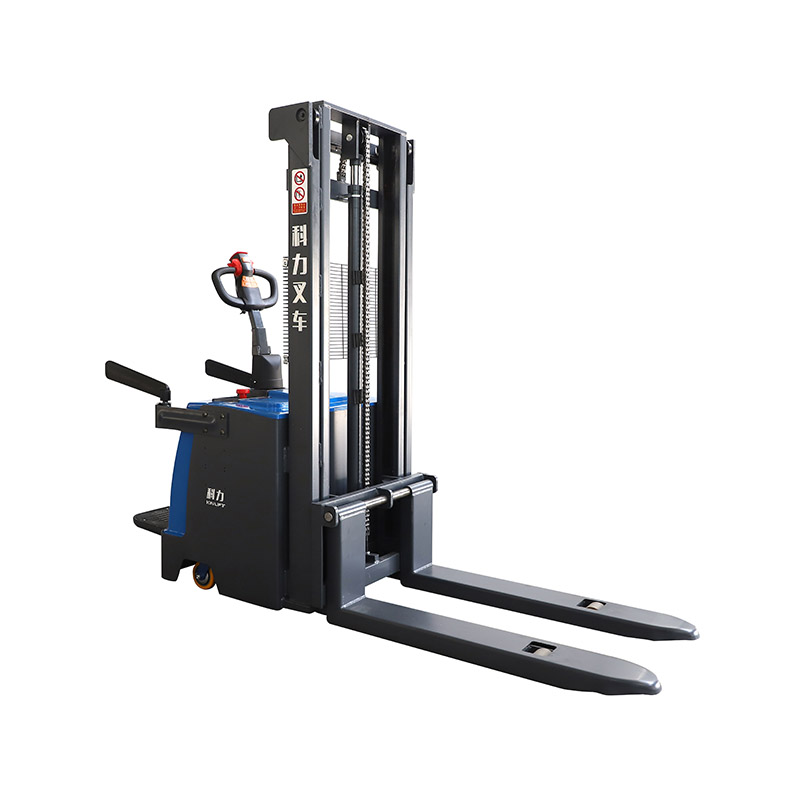

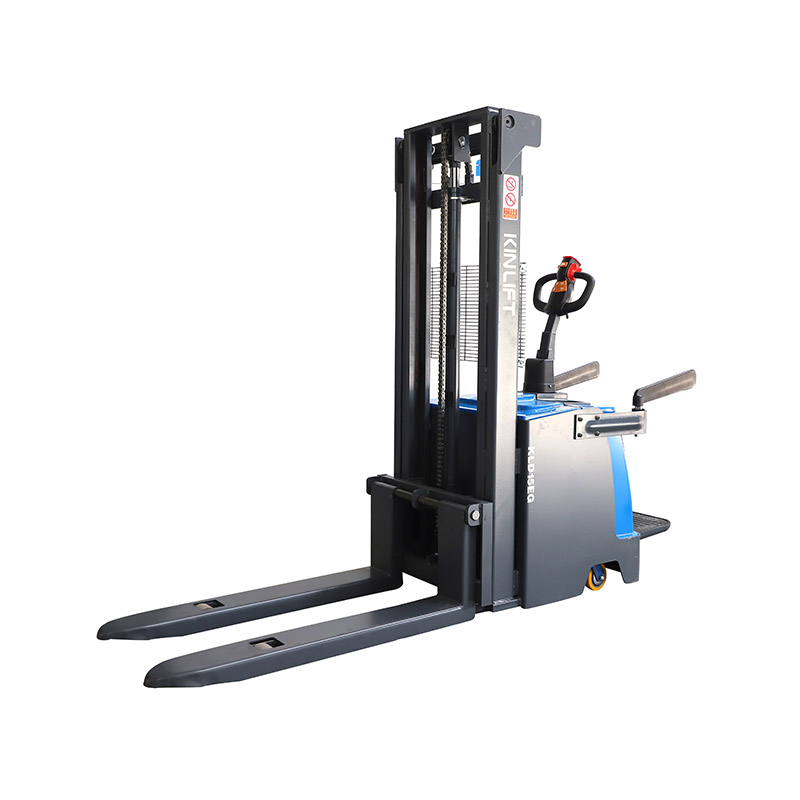

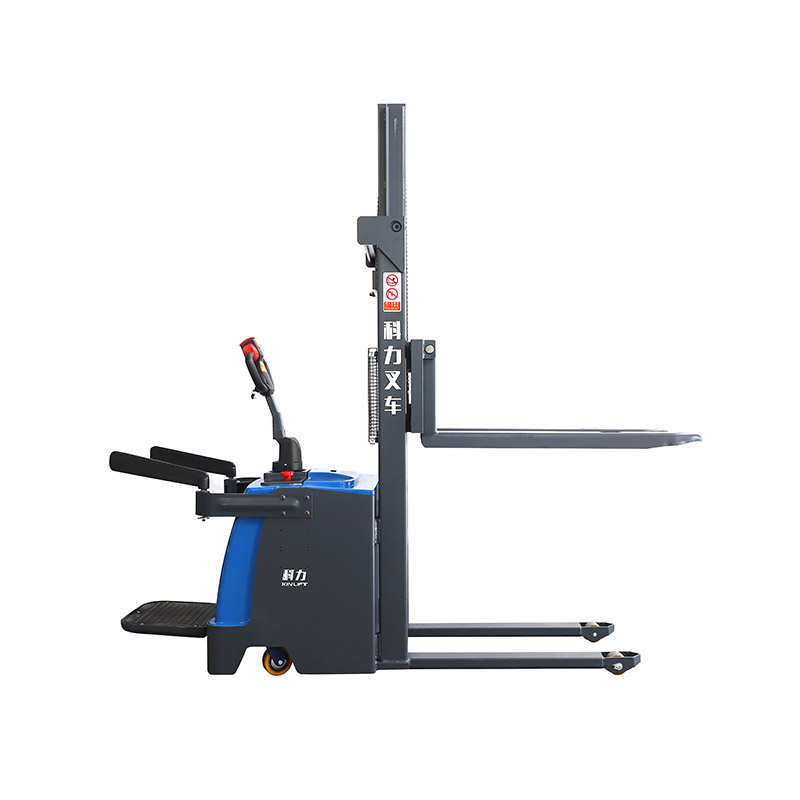

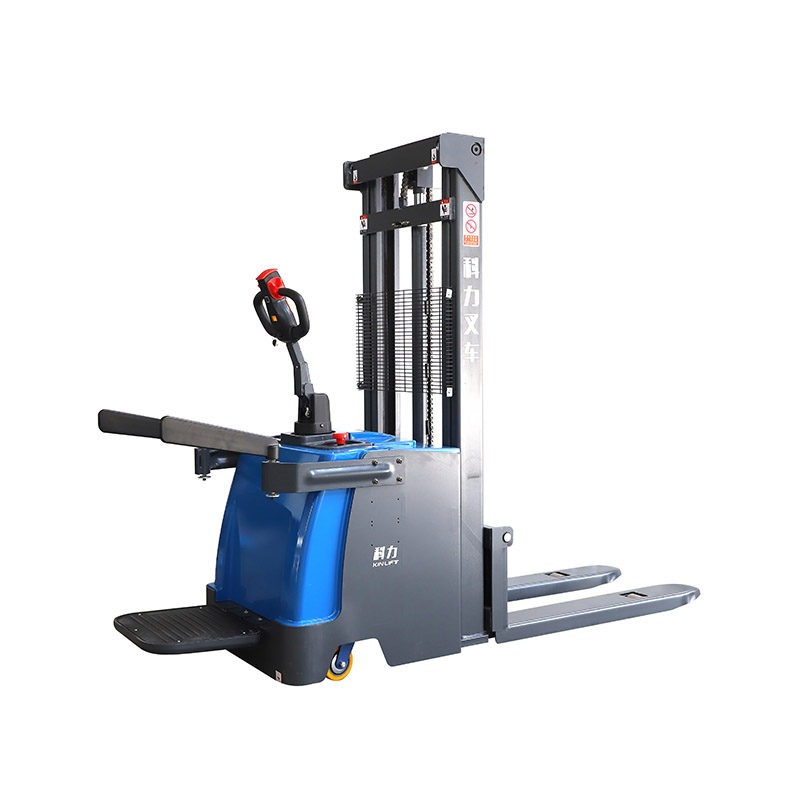

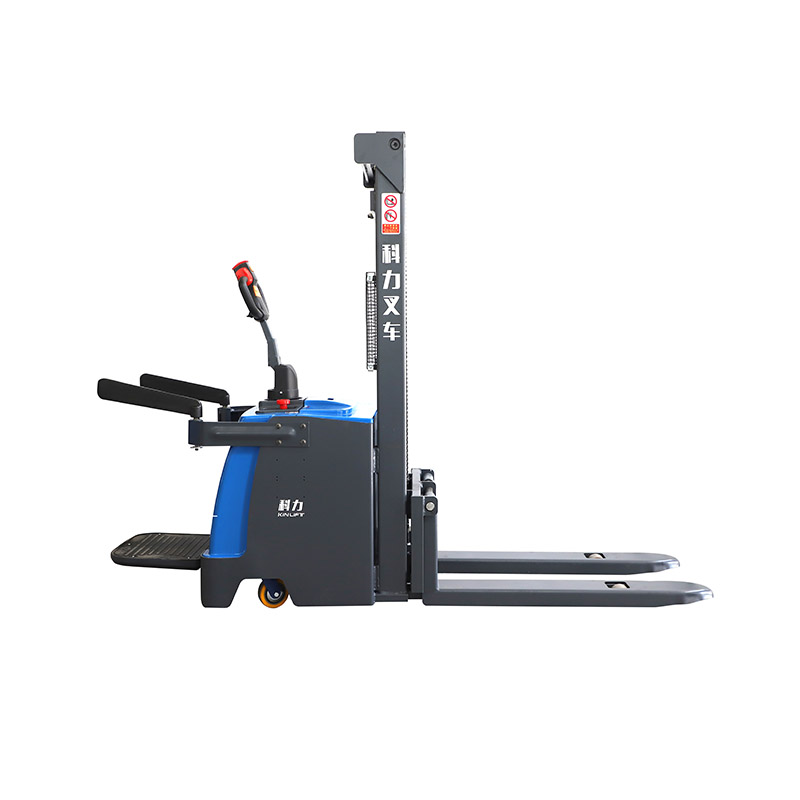

KLD-EG series 1.6m-3.5m 1.5t electric economical pallet stacker

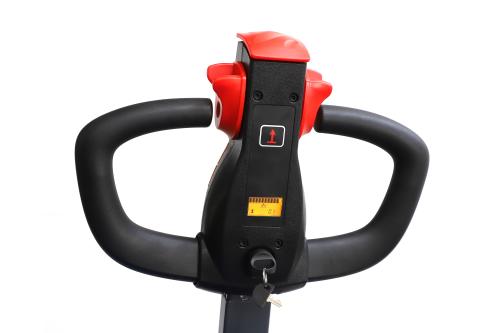

1.Mechanical steering: Unique mechanical steering system for easy operation.
2.Detachable drive wheel: Convenient and quick wheel replacement for improved flexibility.
3.Precision steel side rollers: Added guidance and reduced friction for enhanced stability.

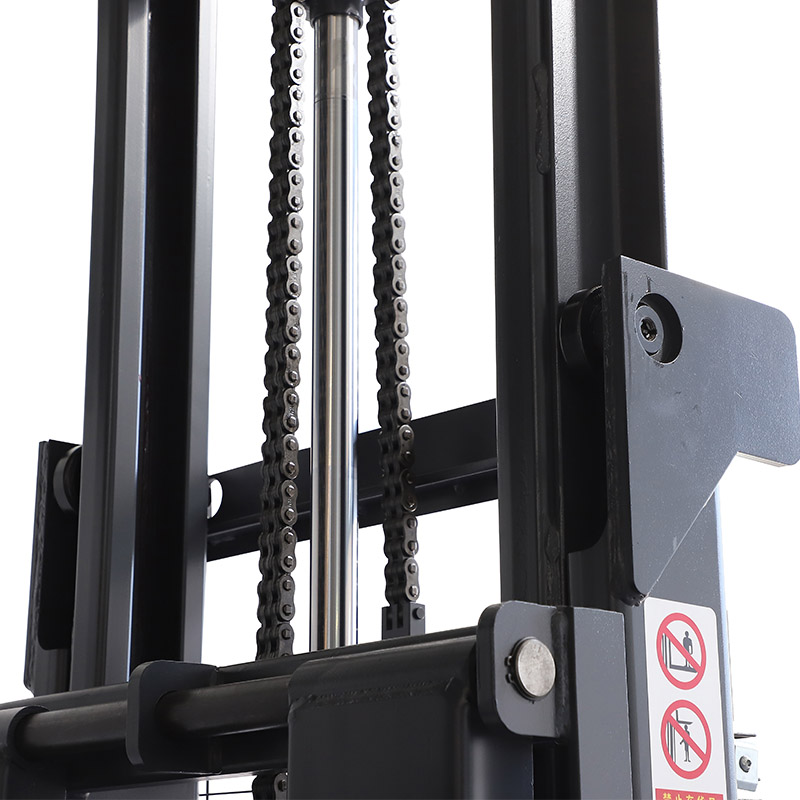

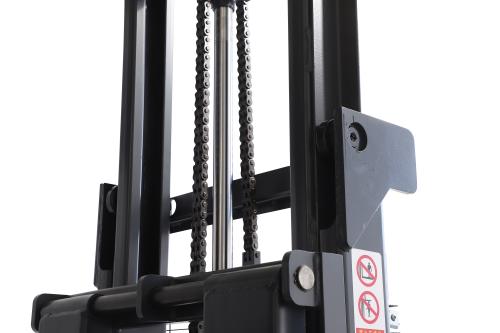

4.Safety features: Adoption of national standard 1244 leaf chain for safer cargo lifting operation.
5.Solid support legs: Higher load-bearing capacity with solid flat iron support legs.
6.Multiple braking functions: Electromagnetic clutch, power-off brake, regenerative brake, reverse brake, and slope anti-slide brake for enhanced safety.
Get A Quote
  • Product Details
  • Load Chart
  • Video
  • Contact Us
Model KLD15EG
Performance Maximum load capacity kg 1500
load center Q mm 600
Maximum lifting height H3 mm 1600
Travel speed (without load) km/h 4.1
Travel speed (with load) km/h 3.7
Lifting speed (without load) mm/s 121
Lifting speed (with load) mm/s 81
Lowering speed (without load) mm/s 105
Lowering speed (with load) mm/s 103
Gradeability (without load ) % \
Gradeability (with load ) % \
Service Weight (with battery) kg 640
Dimensions  Overall length of frame  L mm 2172
Overall length of frame(with platform) mm 2590
Overall width of frame  B mm 782
Overall height when mast lowerd to lowest H1 mm 2090
Overall height when mast lifted to highest H4 mm 2090
Wheelbase Y mm 1480

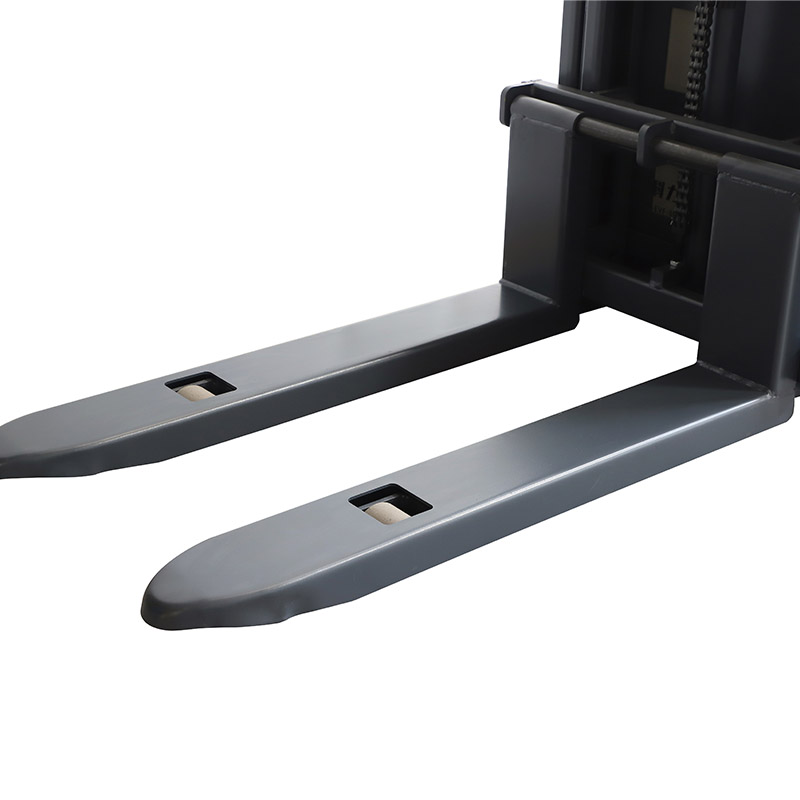

Fork length mm 1150
Fork outside width B1 mm 680
Fork inside width B2 mm 340
Fork thickness mm 65
Fork height when fork lowered to lowest S mm 90
Min ground clearance mm 15
Theoretical width of minimum  aisle for right-angle  stacking (1200x1000) Asts mm 2490
Minimum turning radius (without platform) Wa mm 1813
Minimum turning radius (with platform)  Wa1 mm 2207
Tire Front wheel mm 85*70
Drive wheel mm 210*75
Caster wheel mm 130*50
Wheel material polyurethane
Electrical components Drive motor type  DC series motor
Rated output kw 0.75
Hoist motor type  DC series motor
Rated output kw 2.2
Battery Voltag V 24
Capacity AH 100
Weight kg 35

Mast type Max fork height Mast lowered      Mast extended
KLD15EG KLD15EG KLD15EG
Simplex or Duplex mast   (2Stage)  2000 1480 2460
2500 1730 2960
3000 1980 3460
3500 2230 3960
