Electric Pallet Stacker

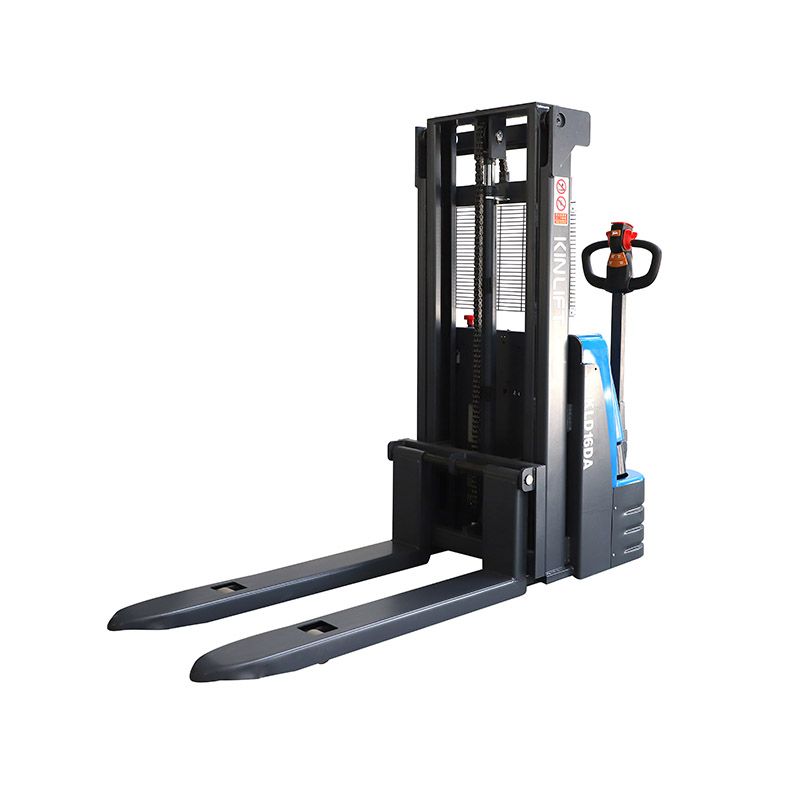

KLD-DA/K series 1.6m-3.5m 1.2t-2t electric walkie stacker

1. Mechanical steering
2. Horizontal drive, the drive wheel is detachable and easy to replace.
3. The mast is reinforced with precision steel side rollers and effectively improve the stability of the machine.
4. Adopt national standard 1244 leaf chain, making the lifting operation of goods safer.
5. Straddle legs are made of solid strap iron, which makes the legs have stronger bearing capacity.

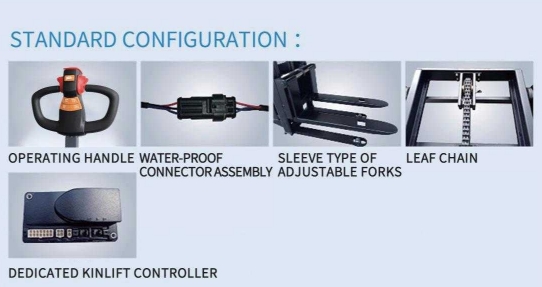

6. Equipped with Kinlift dedicated controller, ALBRIGHT contactor, and AMP power waterproof connector assembly.
7. The stacker has multifunctional brakes such as electromagnetic clutch power-off braking, regenerative braking, reverse braking, and slope anti-roll braking.
8. Sleeve-type adjustable shift fork, flexible and convenient to use
9. The maximum lifting height automatically cuts off the power supply.
10. Can implement upright travel at tortoise speed.
Get A Quote
  • Product Details
  • Load Chart
  • Video
  • Contact Us
Model KLD16DA
Performance Maximum load capacity kg 1600
load center Q mm 600
Maximum lifting height H3 mm 1600
Travel speed (without load) km/h 5.2
Travel speed (with load) km/h 4.8
Lifting speed (without load) mm/s 121
Lifting speed (with load) mm/s 81
Lowering speed (without load) mm/s 105
Lowering speed (with load) mm/s 103
Gradeability (without load ) % \
Gradeability (with load ) % \
Service Weight (with battery) kg 470
Dimensions  Overall length of frame  L mm 1896
Overall length of frame(with platform) mm \
Overall width of frame  B mm 800
Overall height when mast lowerd to lowest H1 mm 2090
Overall height when mast lifted to highest H4 mm 2090
Wheelbase Y mm 1328
Fork length mm 1150
Fork outside width B1 mm 680
Fork inside width B2 mm 340
Fork thickness mm 65
Fork height when fork lowered to lowest mm 90
Min ground clearance mm 15
Theoretical width of minimum  aisle for right-angle  stacking (1200x1000) Asts mm 2415
Minimum turning radius Wa mm 1540
Minimum turning radius (with platform) Wa1 mm \
Tire Front wheel mm 85*70
Drive wheel mm 210*75
Caster wheel mm 130*55
Wheel material polyurethane
Electrical components Drive motor type  DC series motor
Rated output kw 0.75
Hoist motor type  DC series motor
Rated output kw 2.2
Battery    Voltag V 24
Capacity AH 80
Weight kg 26

Mast type   Max fork height Mast lowered       Mast extended
KLD16DA KLD16DA KLD16DA
Simplex or Duplex mast   (2Stage)  2000 1480 2460
2500 1730 2960
3000 1980 3460
3500 2230 3960
