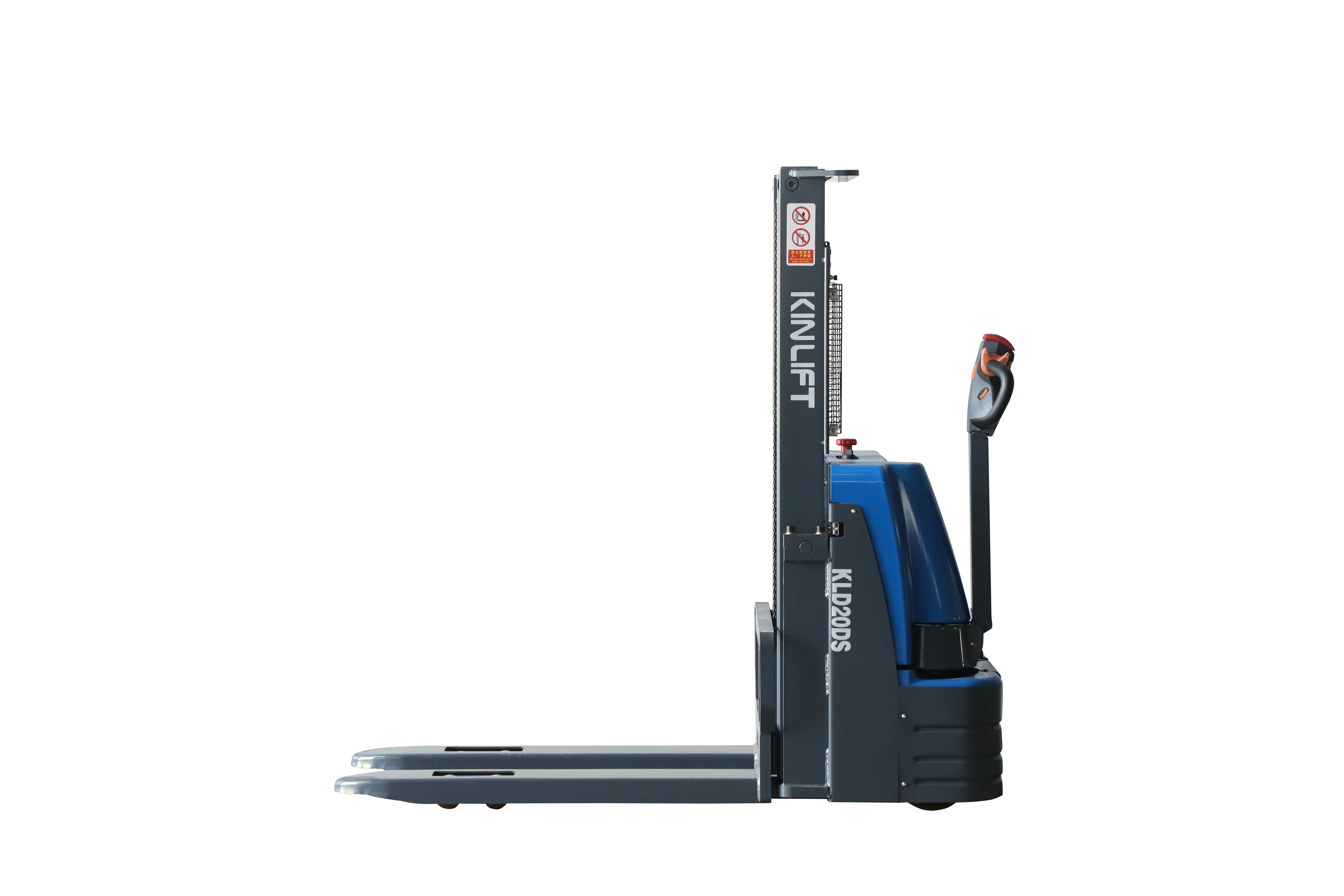

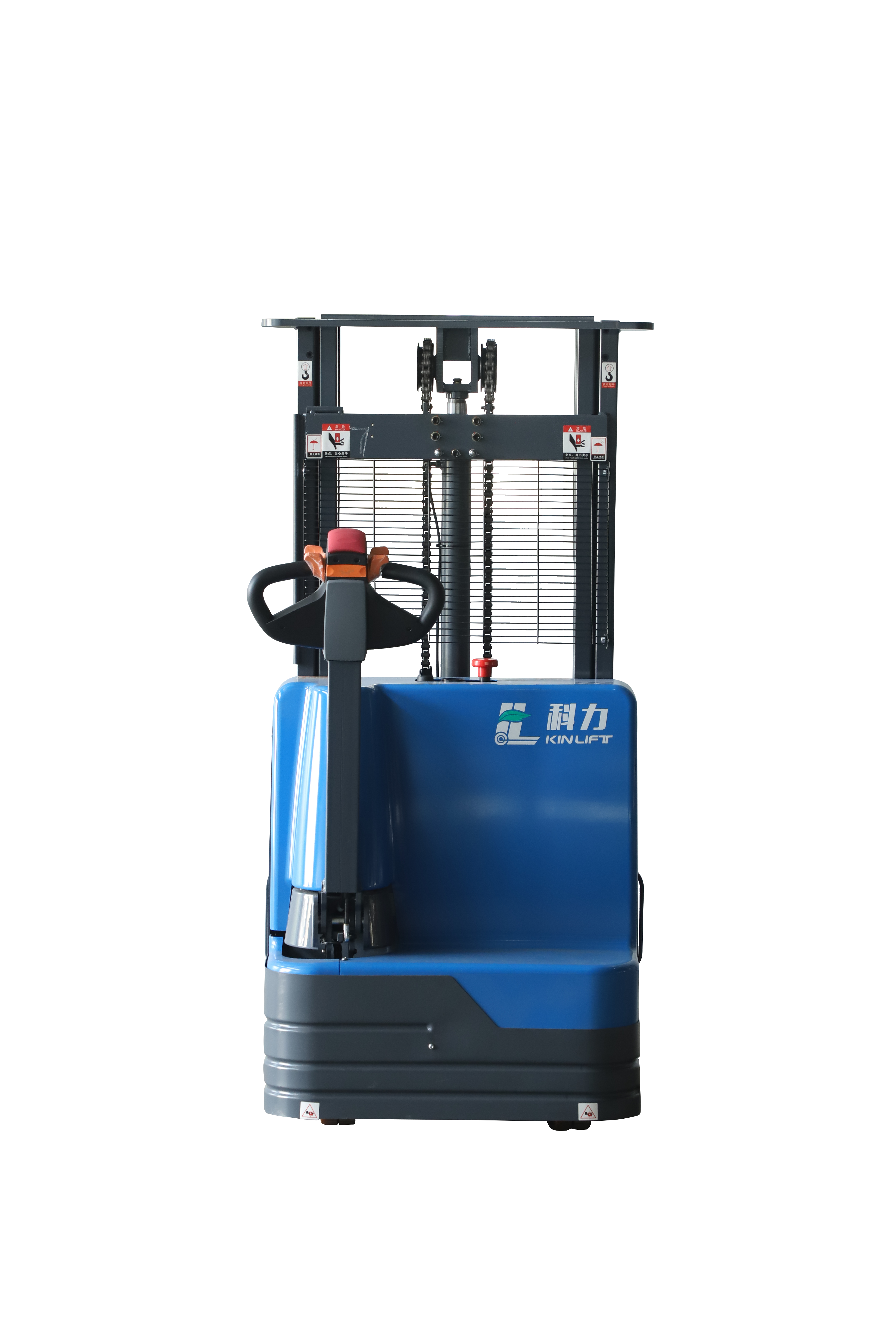

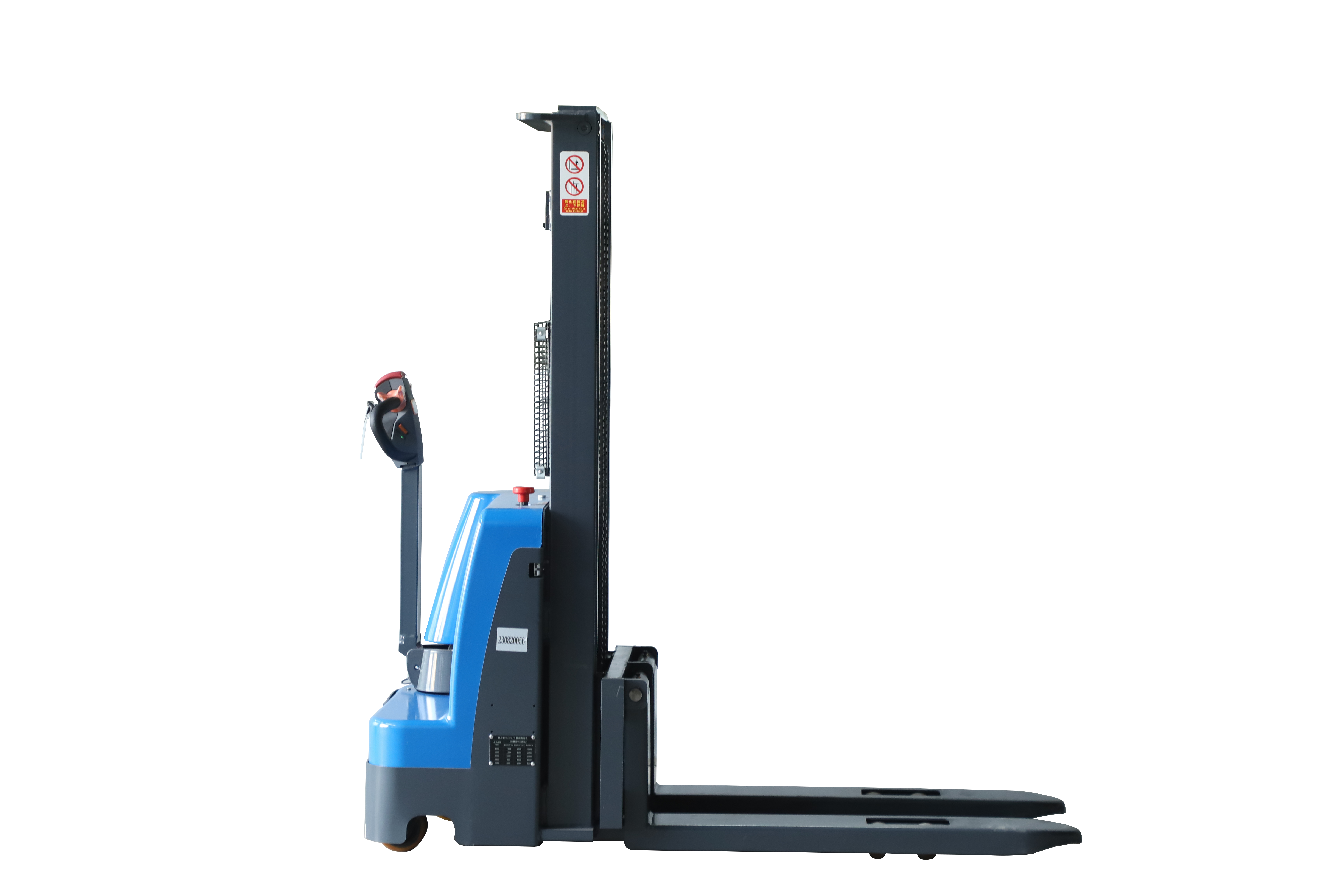

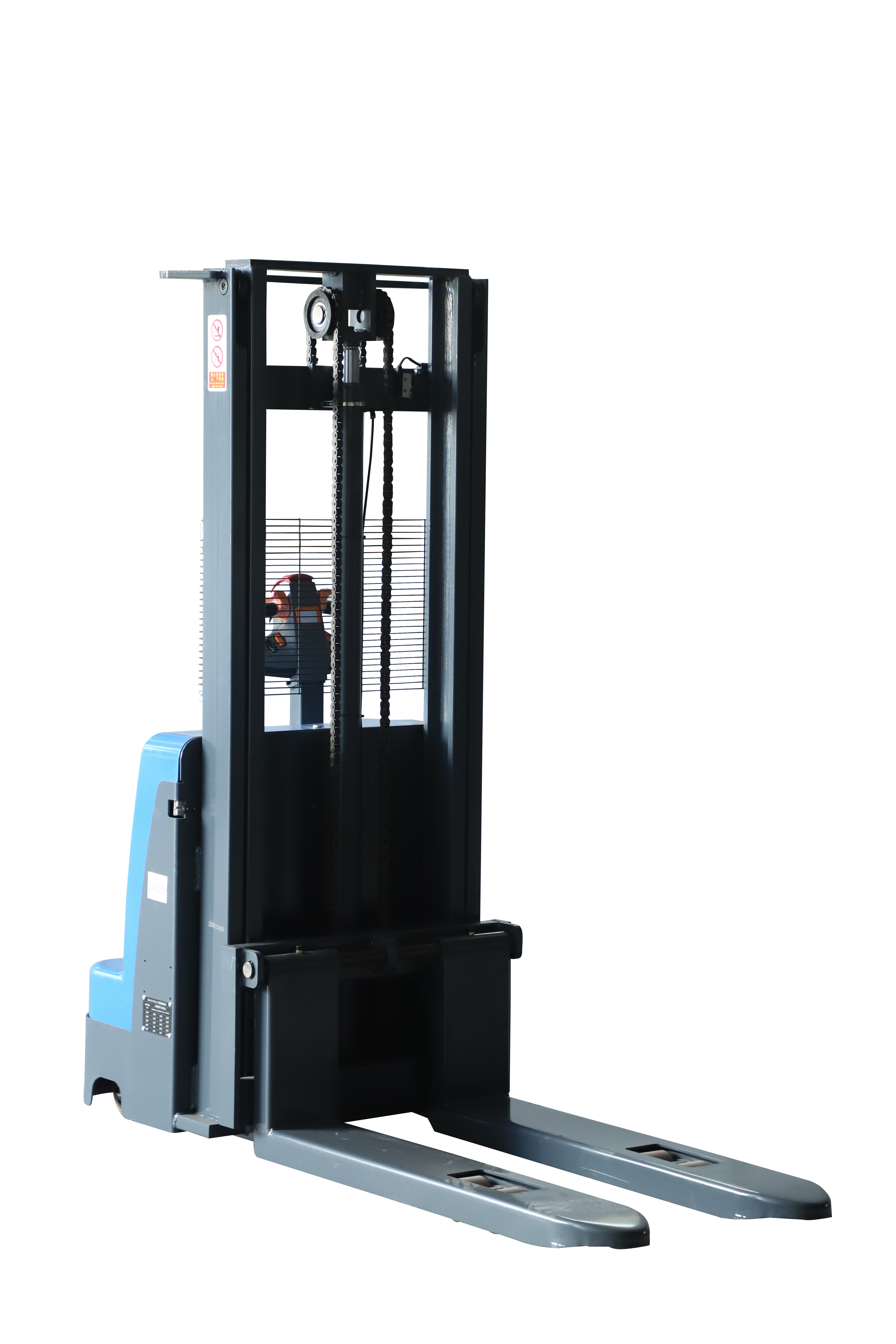

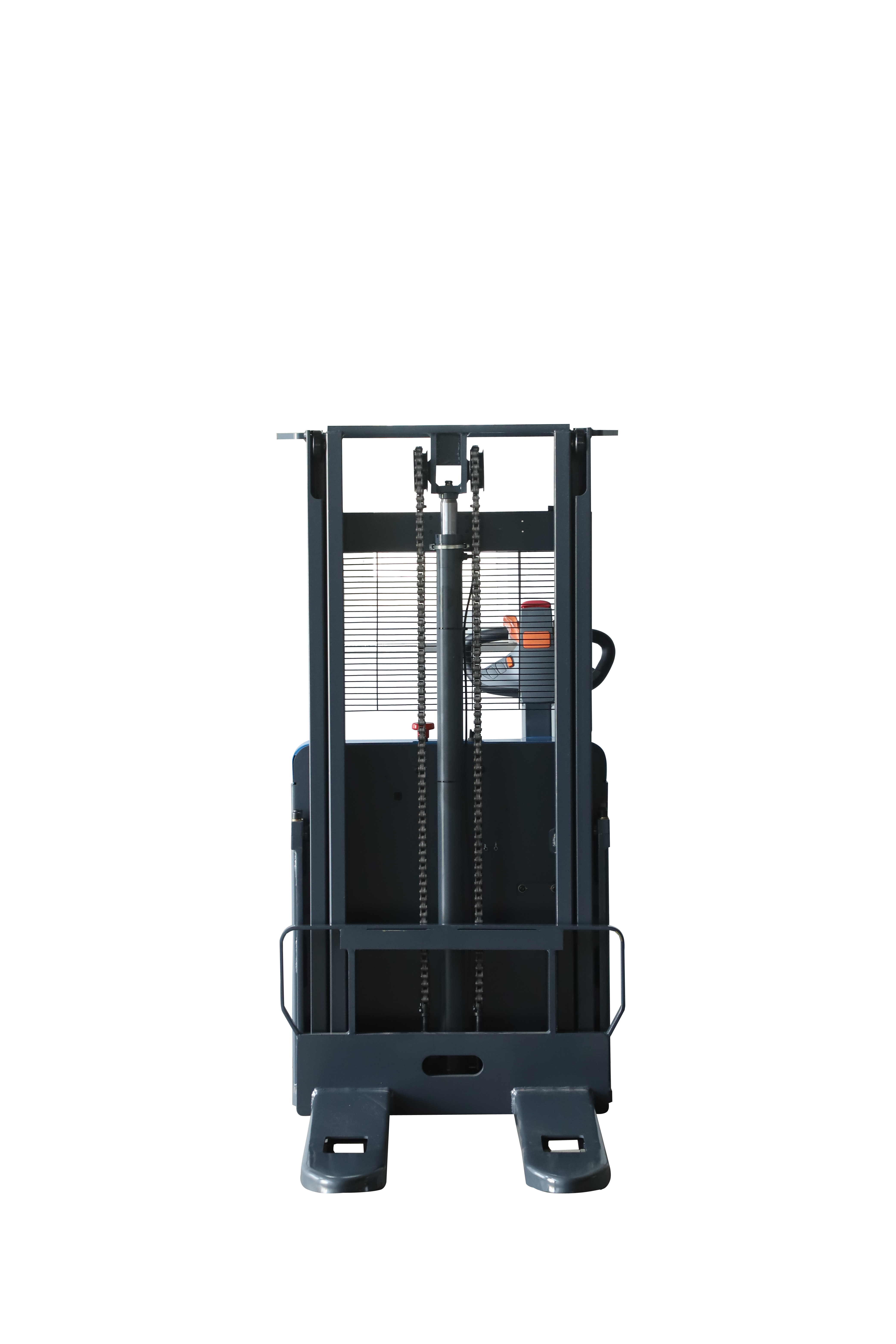

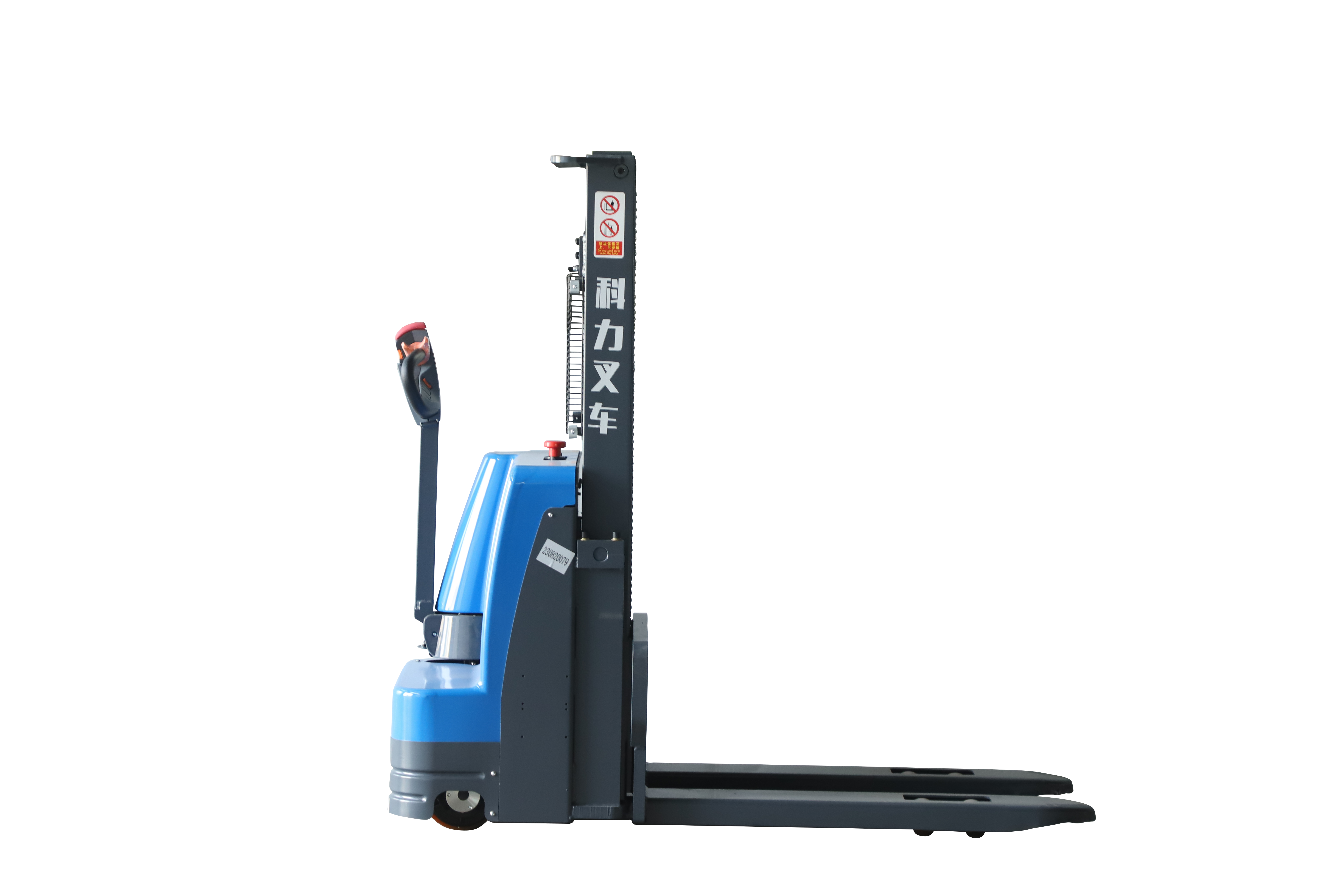

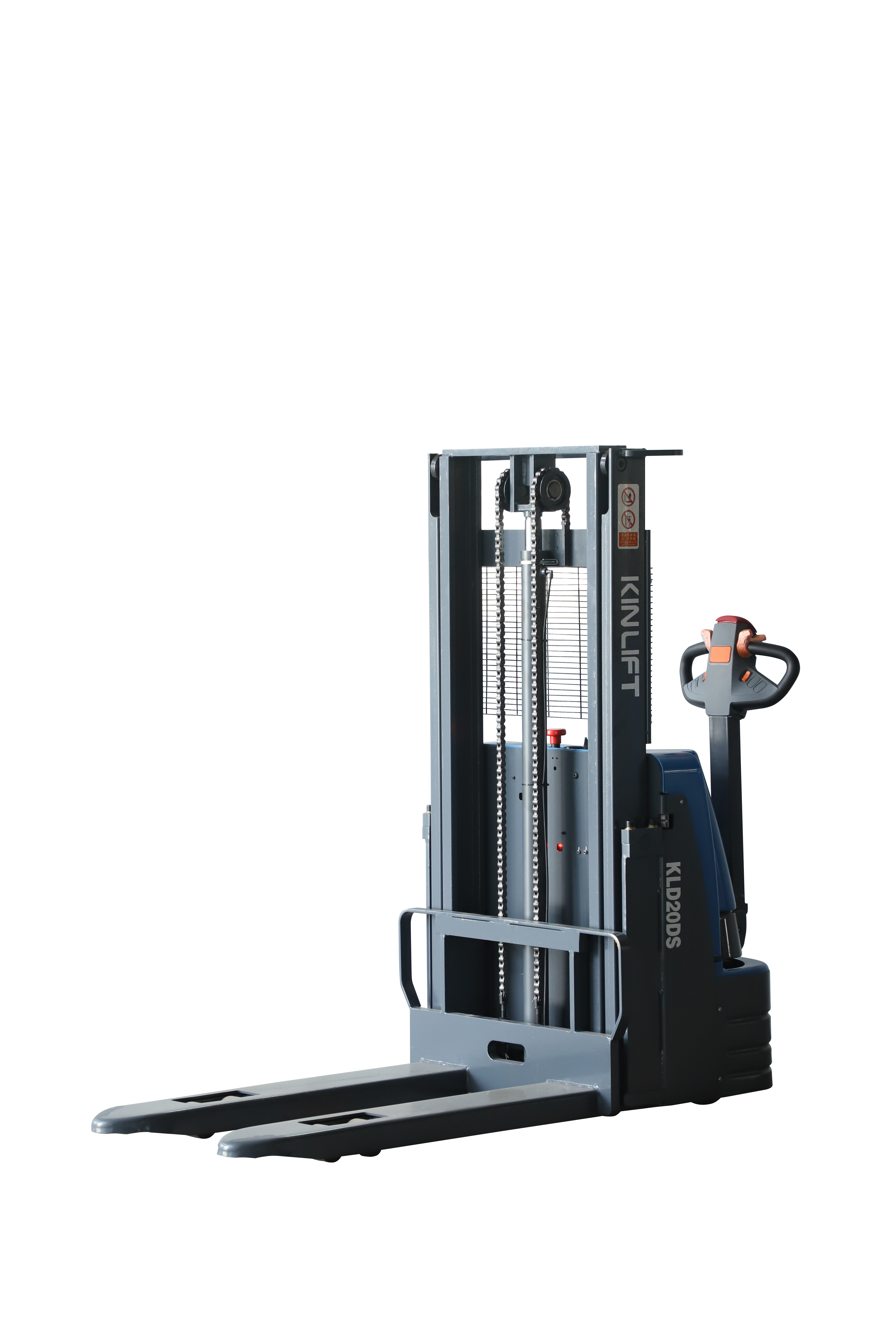

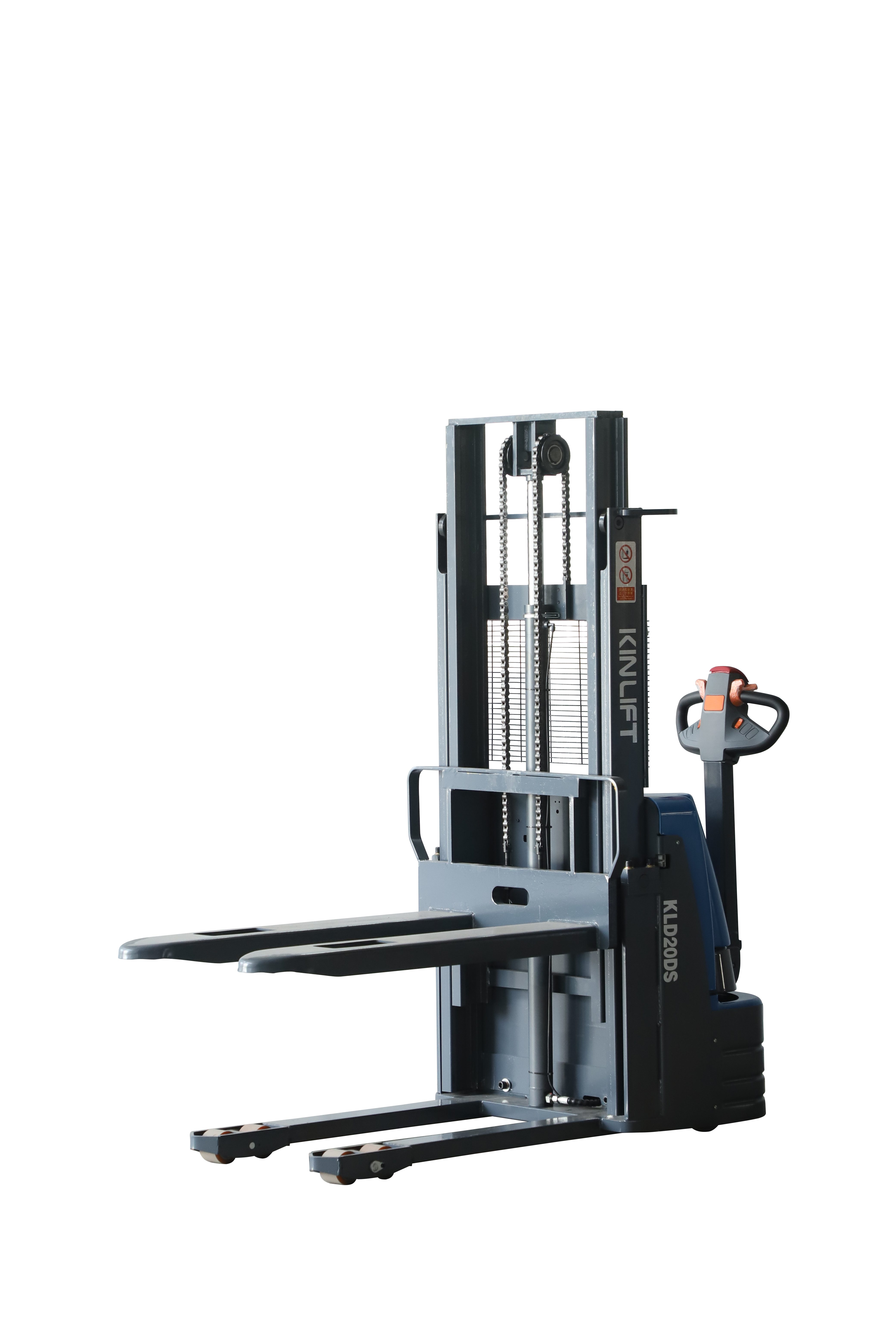

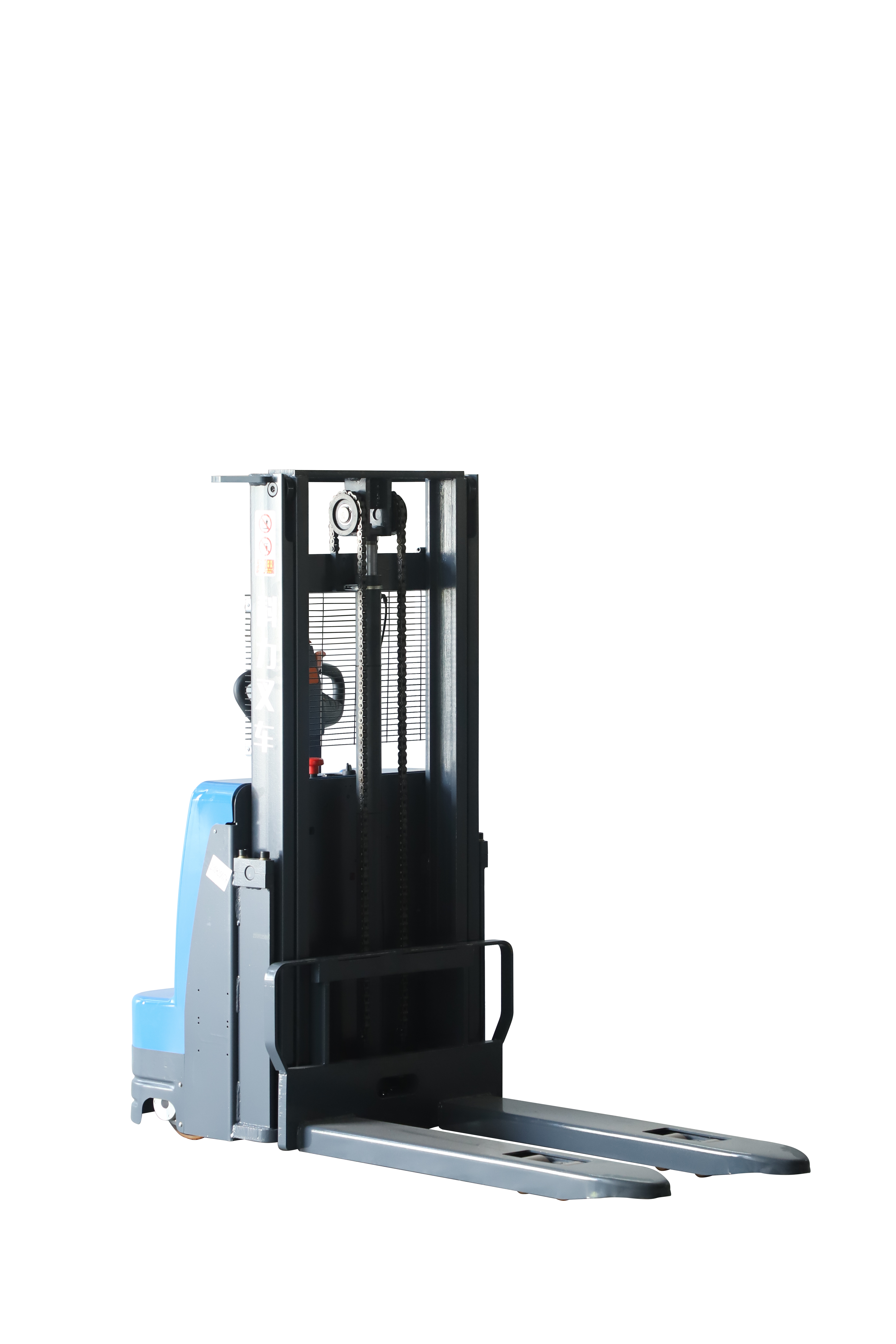

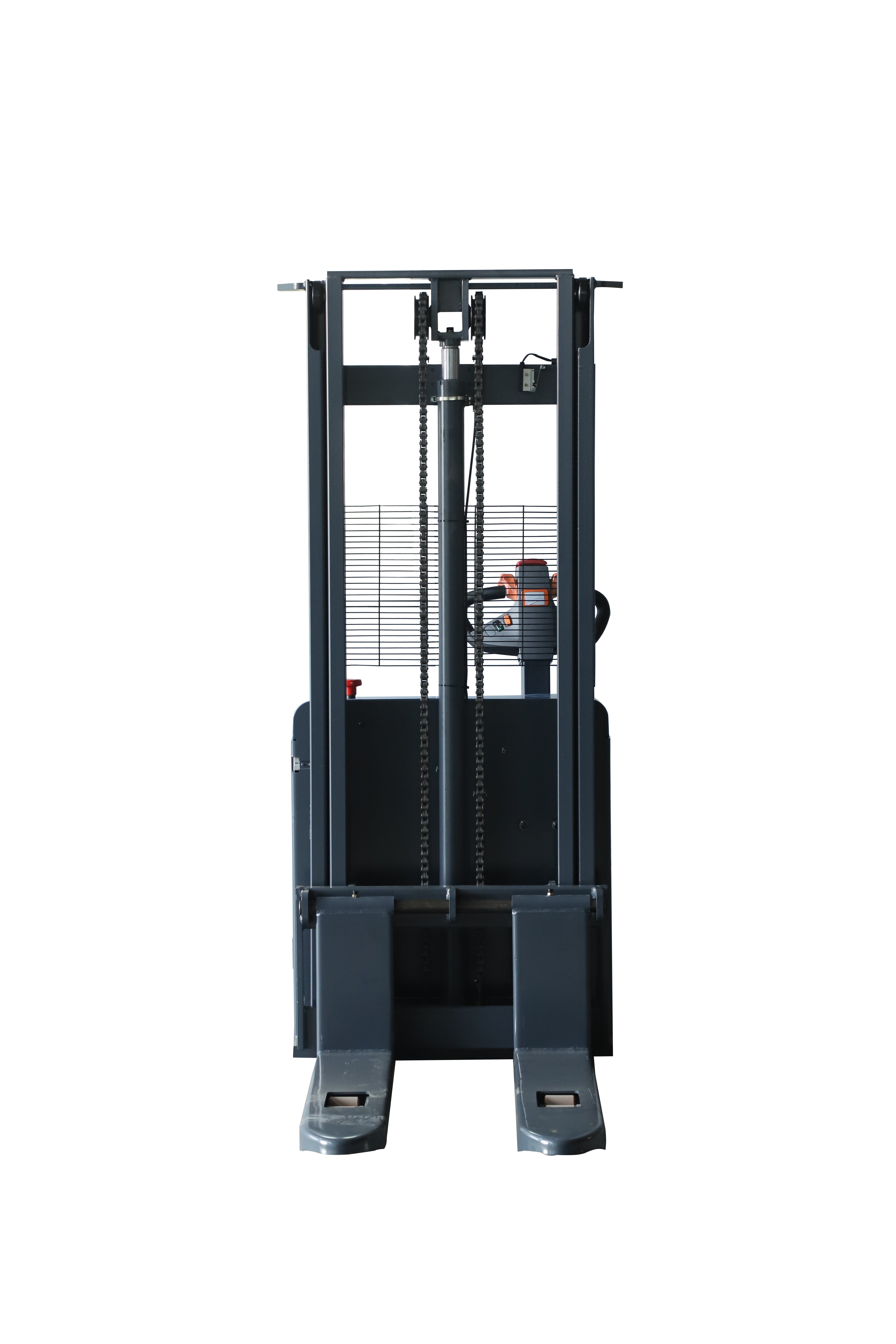

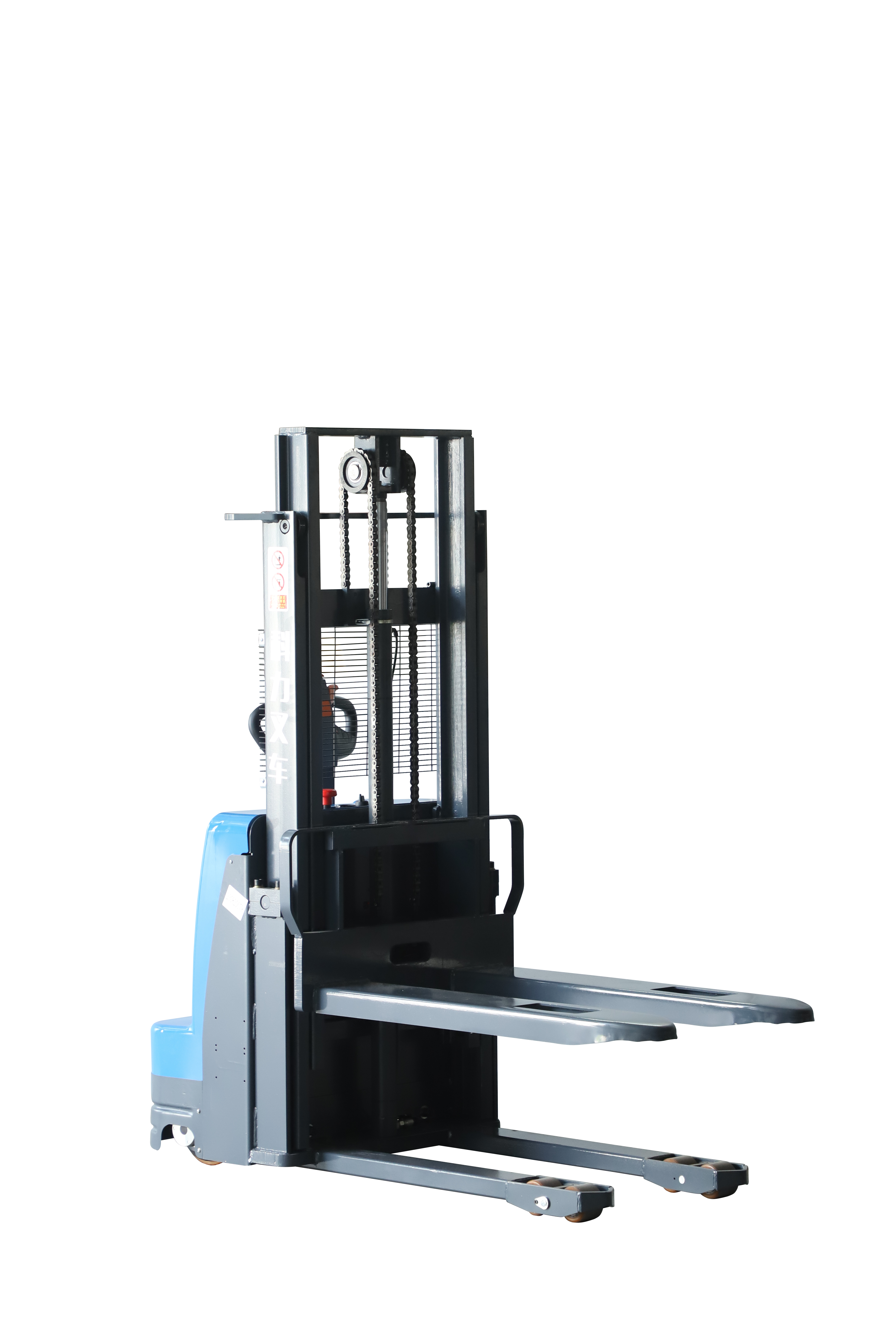

KLD-DS Series 2T 1.6m-3m walkie Electric Stacker Usable for single-faced Pallet only

BRIEF INTRODUCTION OF PRODUCT:

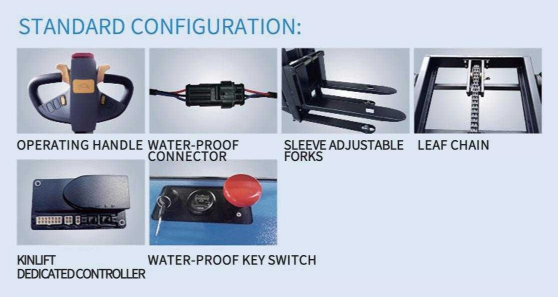

1.Our Mechanical Steering Control System is operated by an ergonomic operating handle, providing smooth and easy maneuverability.
2.Equipped with a horizontal drive, our product ensures efficient and effortless transportation of goods. Additionally, the drive wheels are designed to be easily dismantled and replaced, ensuring minimal downtime and maintenance.

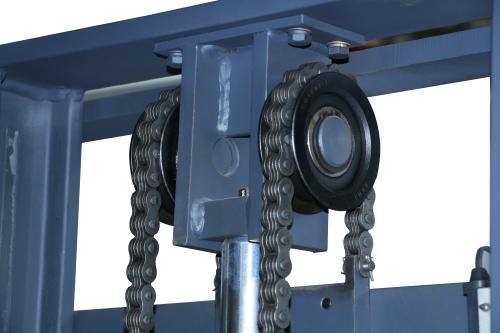

3.Our product exceeds traditional chain systems by utilizing the National Standard 1223 Leaf Chain, guaranteeing safer and more stable lifting operations.
4.The straddle legs of our product are constructed with robust solid band iron, significantly enhancing the bearing capacity and durability.
5.Our product is configured with a Kinlift dedicated main controller, Albright contactor, and a waterproof Amp connector assembly for the electric power supply, ensuring reliable and uninterrupted performance.
6.The multi-functional braking system of our product includes electromagnetic outage braking, regenerative braking, countercurrent braking, and anti-skid braking on ramps, providing enhanced safety and control during operation.
7.Our product features sleeve adjustable forks, allowing for more flexibility and convenience when handling various load sizes and shapes.
8.To ensure the utmost safety, our product is equipped with an automatic power supply cutoff at the top lifting height, preventing any potential accidents.
9.The stacker can implement upright travel with turtle speed, allowing for precise and controlled movement in tight spaces.
OPTIONAL CONFIGURATION:
1.We offer a special model specifically designed for refrigerated storage, ensuring optimal performance in low-temperature environments.
2.Our product can be customized with fixed forks to accommodate specific handling needs.
3.For customers requiring a wider straddle, we offer customized options to meet their unique requirements.

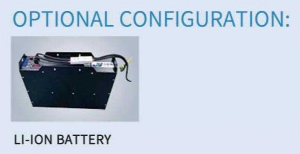

4.Our product can be equipped with a lithium-ion battery, providing longer battery life and reduced charging time for increased productivity.
Get A Quote
PREV: KLD-N Series 1T-2T 1.6m-6m Fully Electric Stackers Applicable for single-faced pallet only
NEXT: KLD-DD Series 2T 1.6m~3.5m Full electric stacker
  • Product Details
  • Load Chart
  • Video
  • Contact Us
Model KLD20DS
Performance Maximum load capacity kg 2000
load center Q mm 600
Maximum lifting height H3 mm 1600
Travel speed (without load) km/h 5.2
Travel speed (with load) km/h 4.8
Lifting speed (without load) mm/s 121
Lifting speed (with load) mm/s 81
Lowering speed (without load) mm/s 105
Lowering speed (with load) mm/s 103
Gradeability (without load ) % \
Gradeability (with load ) % \
Service Weight (with battery) kg 814
Dimensions (尺寸） Overall length of frame  L mm 1896
Overall length of frame(with platform) mm \
Overall width of frame  B mm 800
Overall height when mast lowerd to lowest H1 mm 2090
Overall height when mast lifted to highest H4 mm 2090
Wheelbase Y mm 1243
Fork length mm 1150
Fork outside width B1 mm 680
Fork inside width B2 mm 300
Fork thickness mm 65
Fork height when fork lowered to lowest mm 90
Min ground clearance  mm 15
Theoretical width of minimum  aisle for right-angle  stacking （1200x1000） Asts mm 2335
Minimum turning radius Wa mm 1460
Minimum turning radius (with platform)  Wa1 mm \
Tire Front wheel mm 85*70
Drive wheel mm 210*75
Caster wheel mm 130*55
Wheel material polyurethane
Electrical components Drive motor type  DC series motor
Rated output kw 0.75
Hoist motor type  DC series motor
Rated output kw 2.2
Battery      Voltag V 24
Capacity AH 100
Weight kg 35


Mast type   Max fork height

 Mast lowered       Mast extended
KLD20DS KLD20DS KLD20DS
Simplex or Duplex mast   (2Stage)  2000 1480 2460
2500 1730 2960
3000 1980 3460
3500 2230 3960
