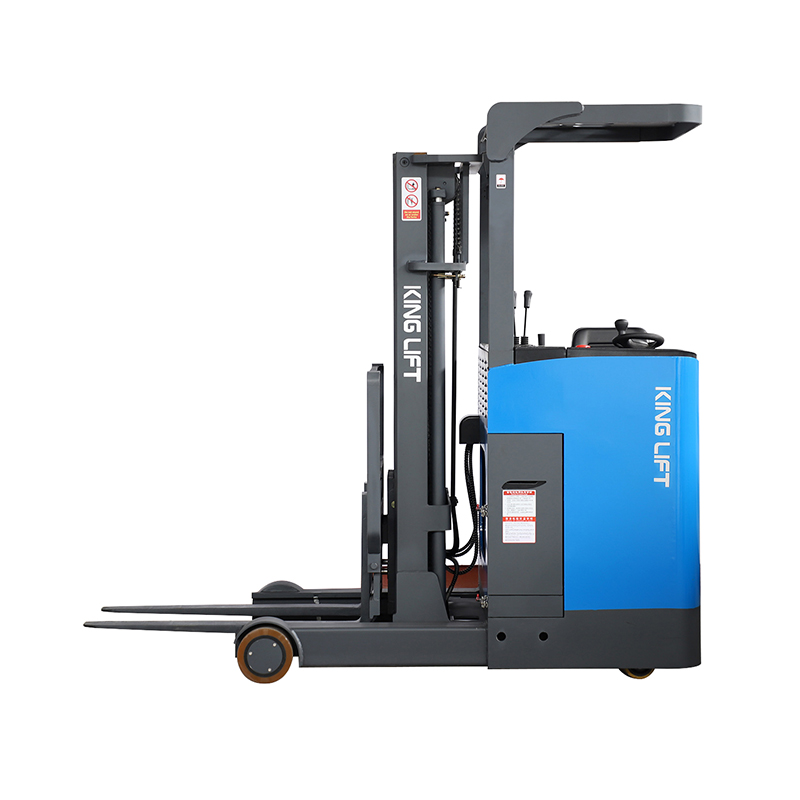

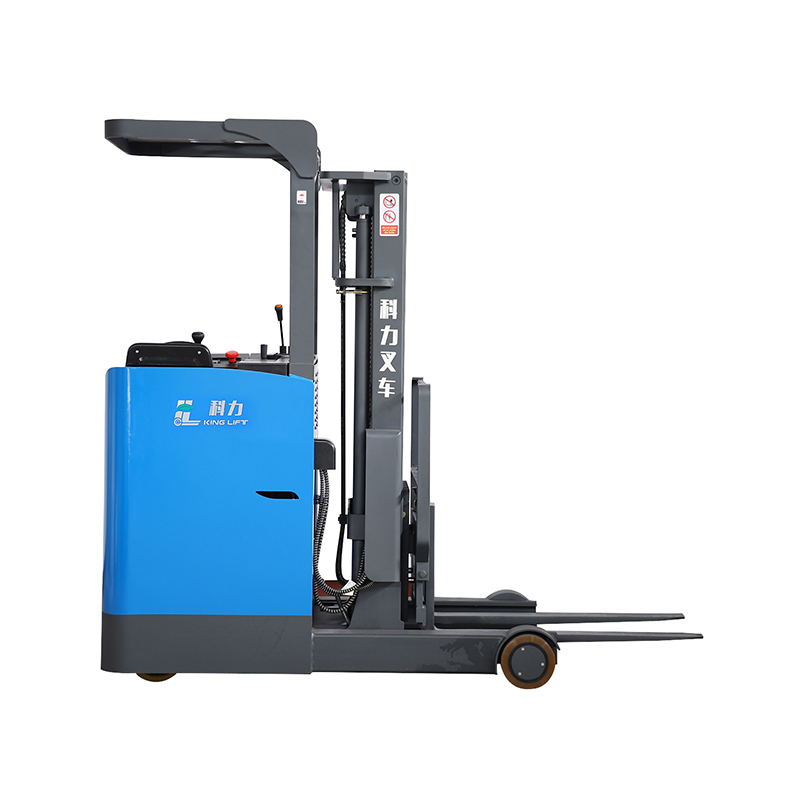

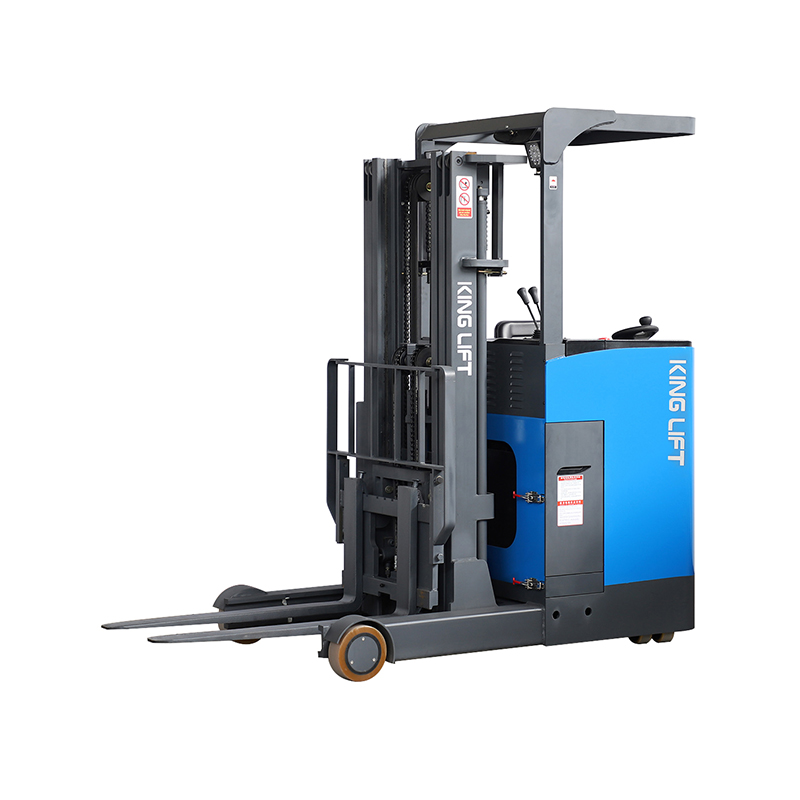

KLR-A Series 1T-2T 1.6m~6m Sit-down Electric Reach Forklift

Brief Introduction of Product:
What is Electric Reach Sit-down Forklift? Forklifts are industrial handling vehicles, which refer to various wheeled handling vehicles for loading and unloading, stacking and short-distance transportation of palletized goods. The International Organization for Standardization ISO/TC110 is called an industrial vehicle. It is often used for the transportation of large objects in storage, and is usually driven by fuel engines or batteries.

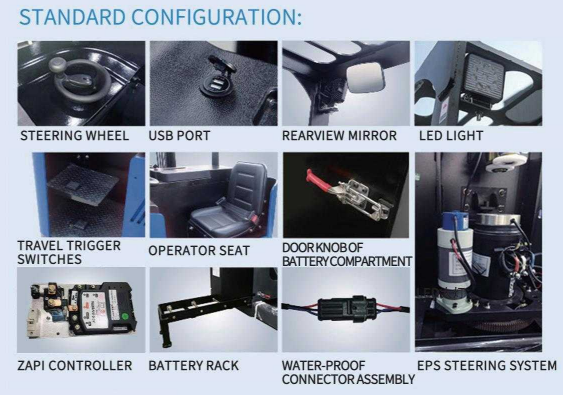

◎  Counterbalanced without straddle legs, usable for both single-faced and double-faced pallets.
◎  The forks can function as tilting, in terms of standard configuration.

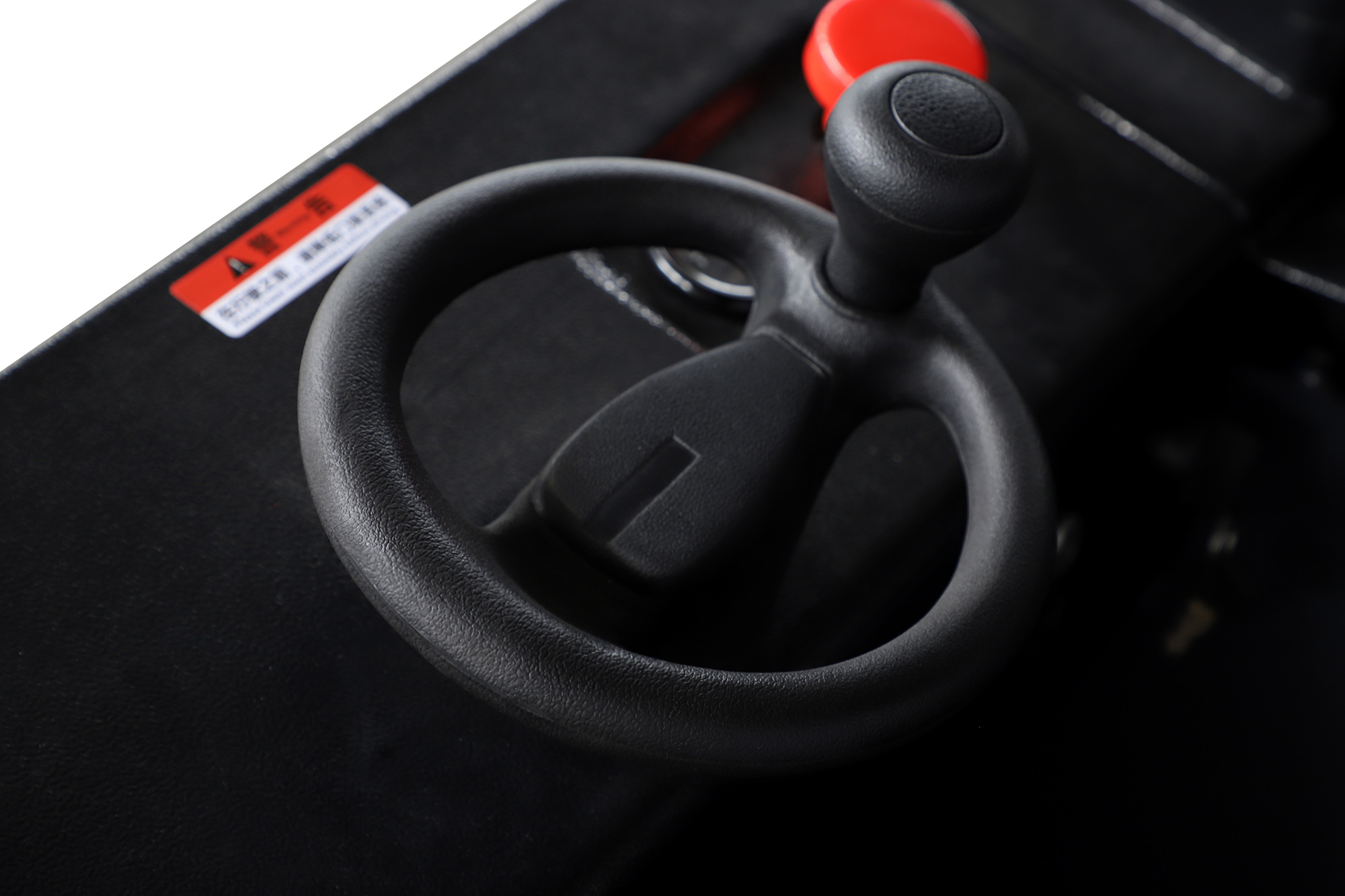

◎  Driven by steering wheel.
◎  USB port is available
◎  Steering system of EPS reduces operation force, boosts the sensitivity, improves the characteristics of turning the steering back, with the function of automatic deceleration on curve road, which enables the operation convenient and safe.
◎  Vertical AC main drive is brushless Motor, with better startability on the slope, renewing the brake function, which effectively increases the machine’s work efficiency and service durability with more power saving.
◎  With ZAPI controller, ALBRIGHT contactor, AMP water-proof connector assembly.

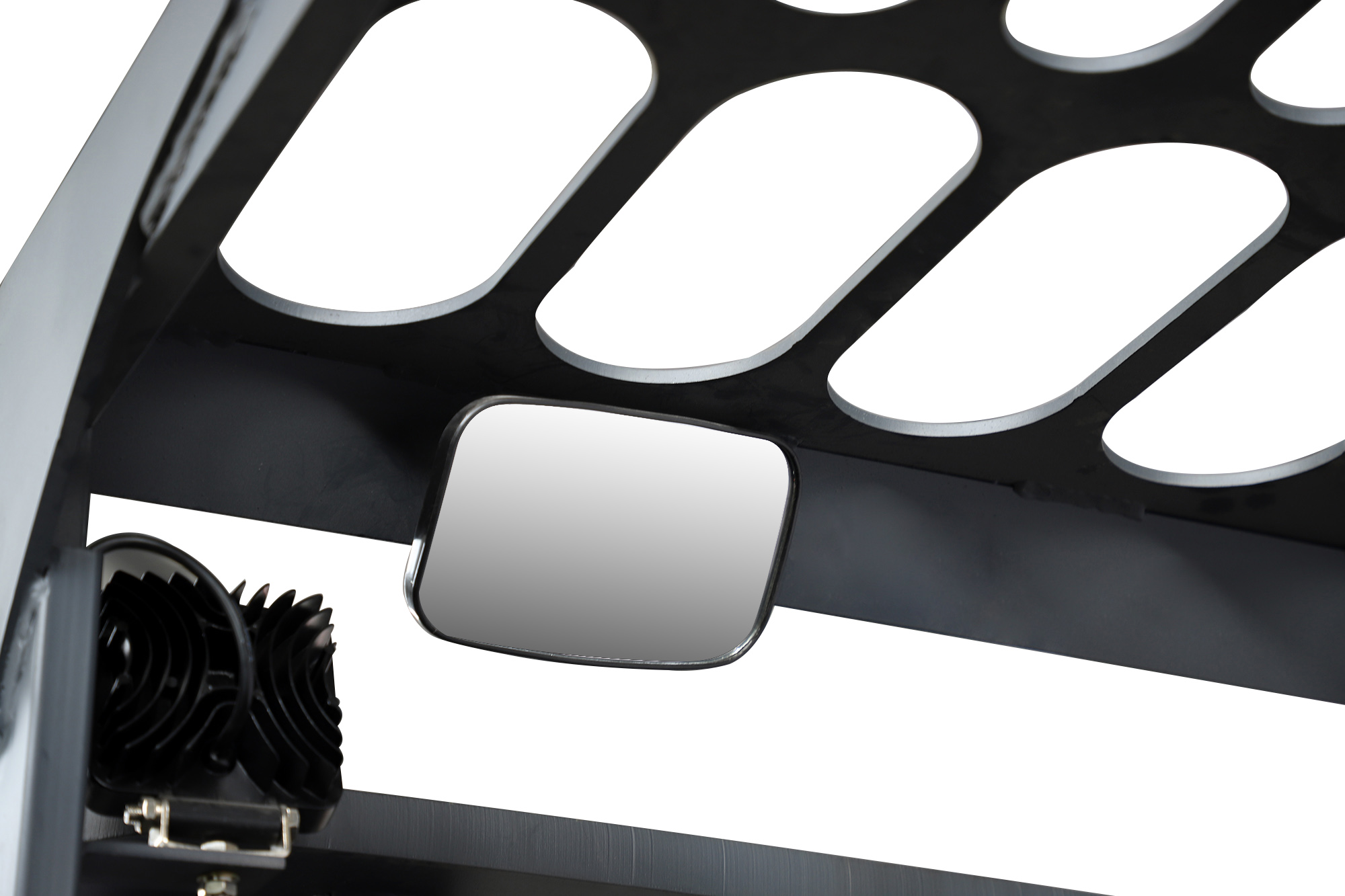

◎  LED cold light is well-suited and energy-saving, wide-angle rearview mirror is effective.
◎  Peculiar drive shock-absorption system with more superior pass-ability.
◎  Battery is designed to replace easily on the side for continuous work operation.
◎  The battery can be replaced and maintained through side door.

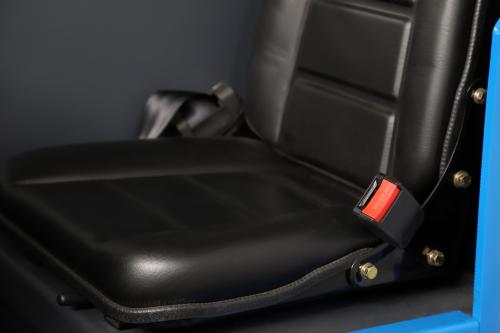

◎  Adjustable driving seat enables the operator comfortable and safe to operate the vehicle.
◎  There are two TRAVEL trigger switches installed up and down for an operator to opt to use.
◎  High-frequency transistor controlling system , additionally can-bus bussing technology.
◎  Optimal power output is matched with the motor, the continuous work time increases 24%.
◎  Have a choice for high-capacity hoisting motor that can rise the lifting speed and improve the work efficiency.

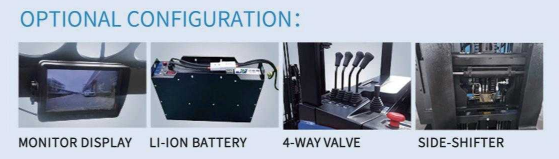

Optional Configuration:
◎  Special product model for cold storage.
◎  Imported battery
◎  High-power hoisting motor
◎  High-capacity battery 300 AH
◎  Side-shifter for forks and fork carriage.
◎  Li-ion battery
Get A Quote
PREV: KLR-B Series 1T-2T 1.6m~6m Stand-up Electric Reach Forklift
NEXT: No Next Article
  • Product Details
  • Load Chart
  • Video
  • Contact Us
Model KLR10A KLR15A KLR20A
Performance Maximum load capacity kg 1000 1500 2000
load center Q mm 500 500 500
Maximum lifting height H3 mm 1600 1600 1600
Reach length E mm 570 570 570
Tiltiing angle (up/down) deg ° 3/5 3/5 3/5
Travel speed (without load) km/h 5.2 5.2 5.2
Travel speed (with load) km/h 5.2 5.2 5.2
Lifting speed (without load) mm/s 115 115 115
Lifting speed (with load) mm/s 92 92 92
Lowering speed (without load) mm/s 173 173 173
Lowering speed (with load) mm/s 530 530 530
Gradeability(without load ) % 8 8 8
Gradeability(with load ) % 5 5 5
Service weight(with battery) kg 2135 2385 2385
Dimensions Overall length of frame excluding fork length & mast reach length L mm 1880 1880 1880
Overall length including fork length excluding mast reach length G mm 2427 2427 2427
Overall length including mast reach length G1 mm 2997 2997 2997
Overall width of frame B mm 1034 1034 1034
Overall height when mast lowered to lowest H1 mm 2200 2200 2200
Overall height when mast lifted to highest H4 mm 2636 2636 2636
Wheelbase Y mm 1551 1551 1551
Fork size mm 1070*35*100 1070*35*100 1070*40*100
Adjustable range of fork outside width R mm 210-700 210-700 210-700
Fork height when fork lowered to lowest S mm 60 60 65
Min ground clearance   mm 55 55 55
Theoretical Width of minimum  aisle for right-angle  stacking （1200x1000） Asts mm 2564 2564 2564
Minimum turning radius  Wa mm 1903 1903 1903
Overhead guard height mm 2185 2185 2185
Tire Front wheel mm 210*85 210*85 210*85
Drive wheel mm 230*75 230*75 230*75
Caster wheel mm 130*55 130*55 130*55
Wheel material polyurethane
Electrical components Drive motor type AC series motor
Rated output kw 2.2 2.2 2.2
Hoist motor type DC series motor
Rated output kw 3 3 3
Battery Voltage V 24
Capacity AH 270 270 270
Weight kg 245 245 245

Mast type Max fork height Mast lowered Mast extended Free Lift
Simplex or Duplex mast  2000 1475 3036
2500 1725 3536
3000 1925 4036
3500 2225 4536
4000 2475 5036
Triplex mast（3stage full free lift） 4000 1848 5013 1361/1366
4500 2015 5513 1527/1532
5000 2238 6033 1701/1706
5500 2398 6511 1859/1864
6000 2577 7035 2035/2040
