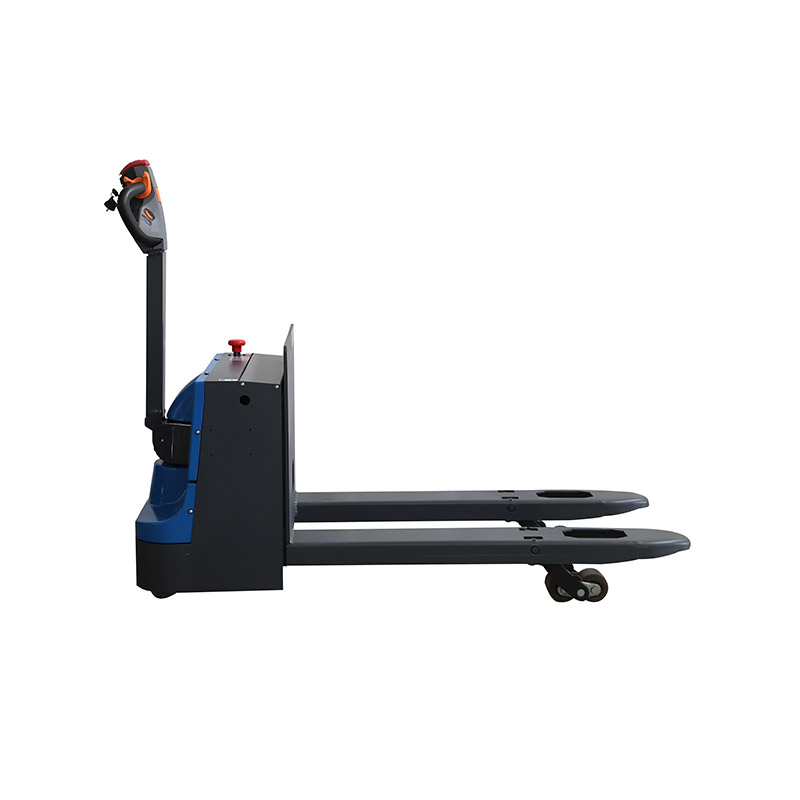

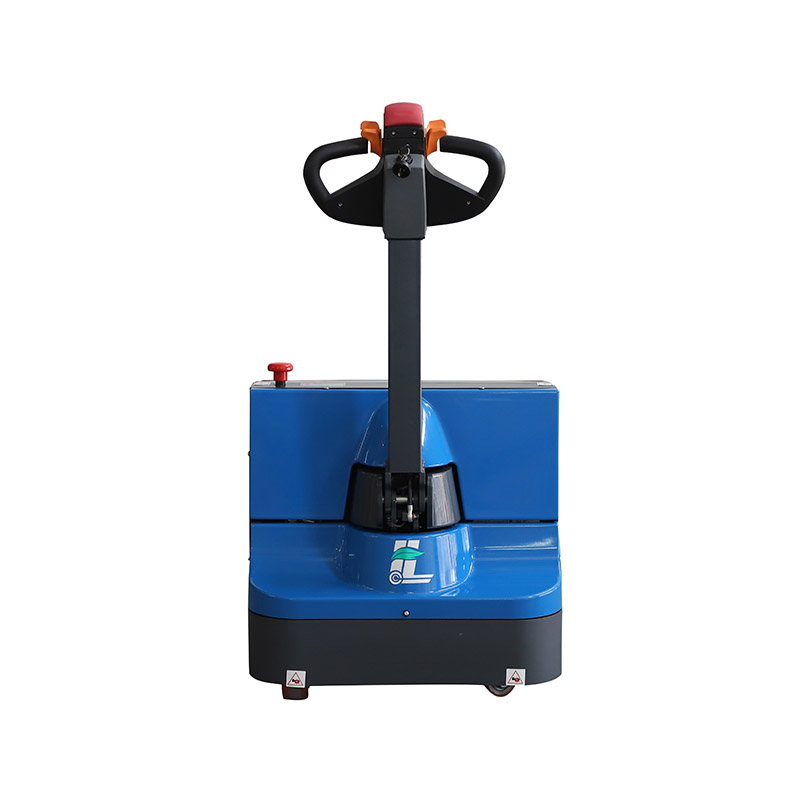

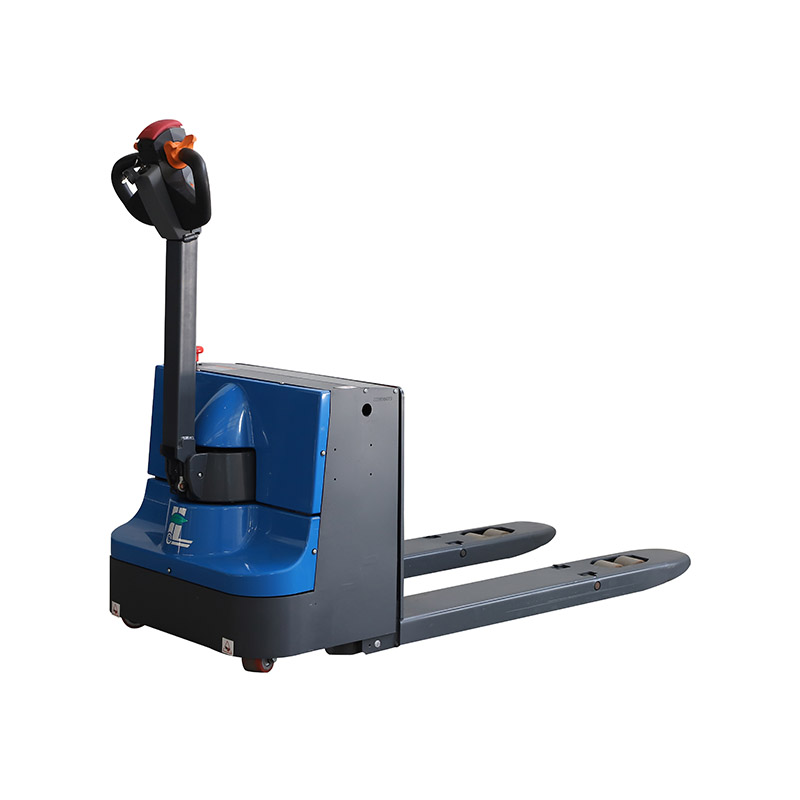

KLT-B Series 2ton-3ton Electric Walkie Truck

Brief Introduction of Product:

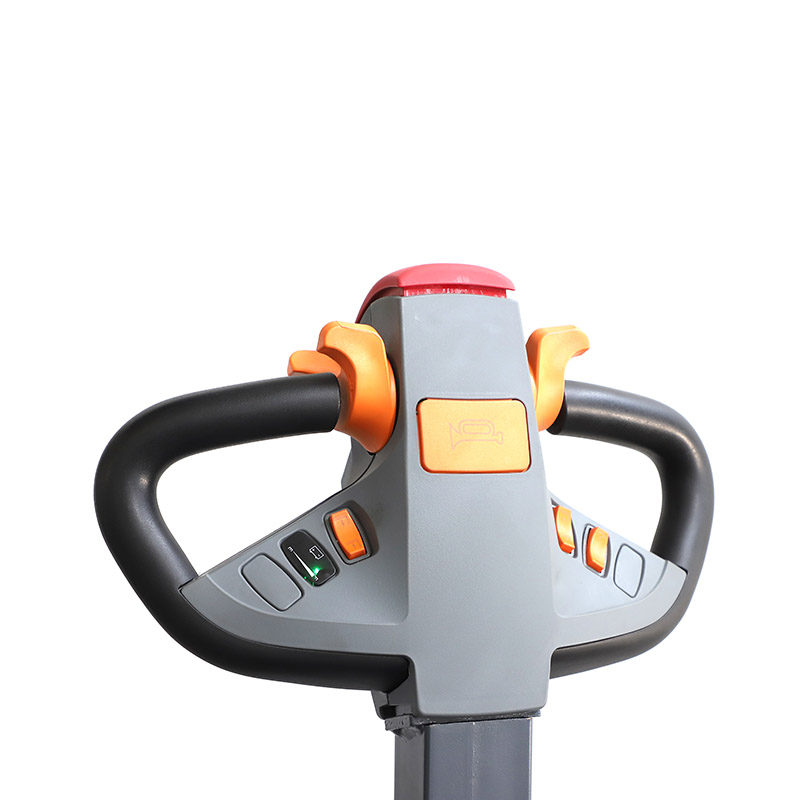

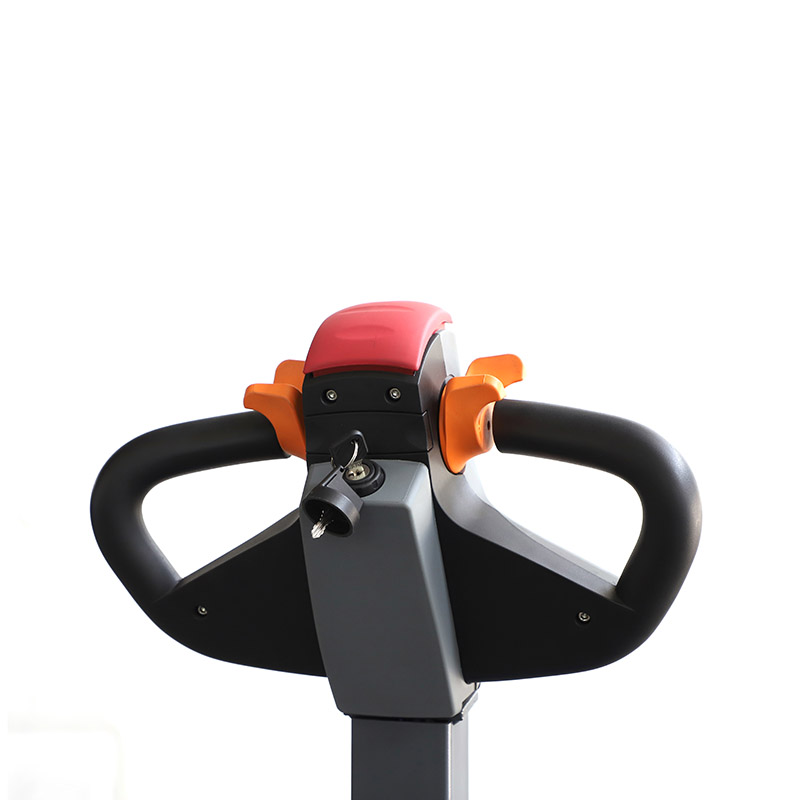

◎Mechanical steering control system,operated by an operating handle

◎With horizontal drive, the drive wheels are able-dismantled and easy to be replaced.

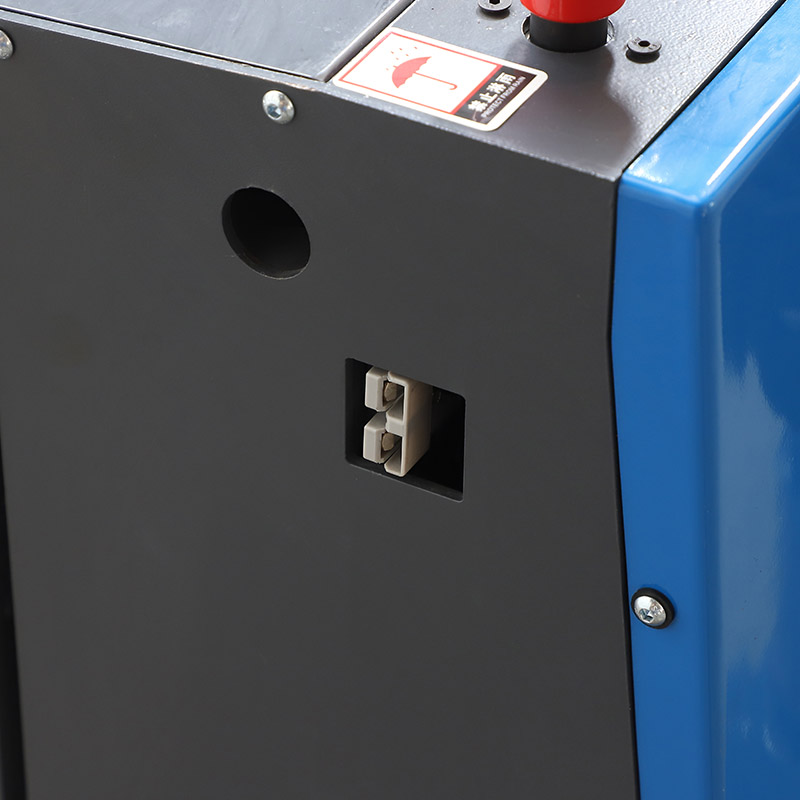

◎Configured with KINLIFT dedicated controller, ALBRIGHT contactor, water-proof AMP connector assembly of electric power supply.

◎Design with multifunctional braking including electromagnetic braking, regenerative braking and countercurrent braking, as well as Anti-Skid braking on the ramp.

◎Li-ion battery.

Optional Configuration:

◎ Special specs for refrigerated storage

◎ Wider straddle legs customized

◎ Extended longer forks customized

Get A Quote

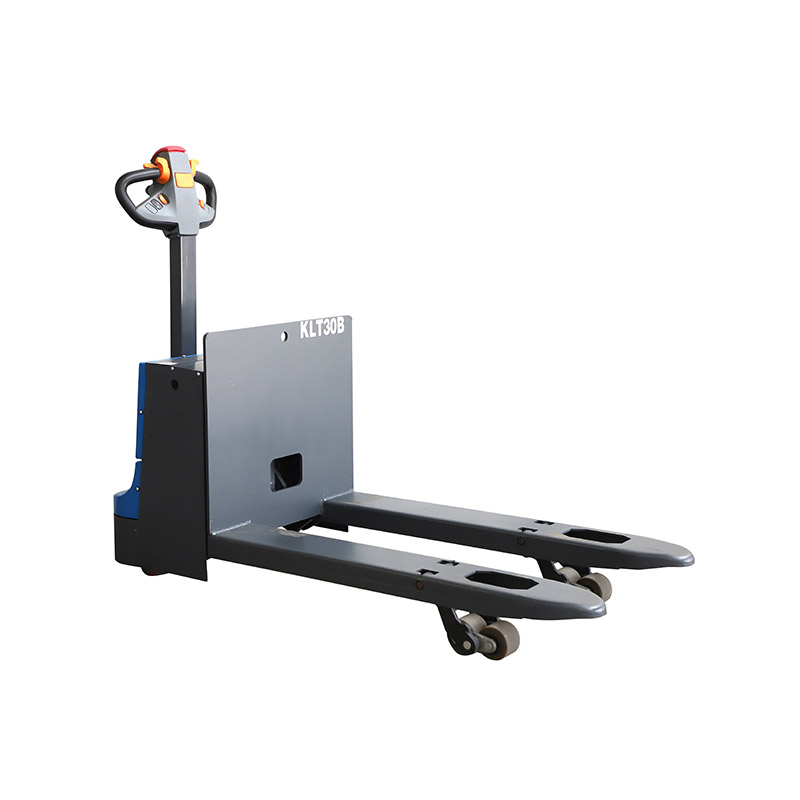

Model				KLT30B
Performance	Maximum load capacity		kg	3000
	load center	Q	mm	600
	Maximum lifting height	H3	mm	120
	Travel speed (without load)		km/h	5.5
	Travel speed (with load)		km/h	5
	Lifting speed (without load)		mm/s	25
	Lifting speed (with load)		mm/s	20
	Lowering speed (without load)		mm/s	25
	Lowering speed (with load)		mm/s	40
	Gradeability (without load )		%	7
	Gradeability (with load )		%	5
	Service Weight (with battery)		kg	~300

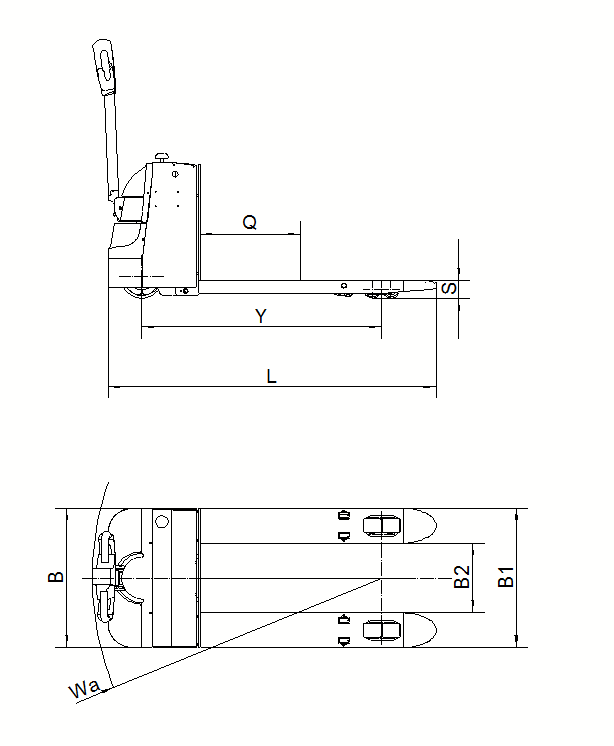

Dimensions	Overall length of frame	L	mm	1600
	Overall length of frame(with platform)		mm	\
	Overall width of frame	B	mm	680
	Wheelbase	Y	mm	1169

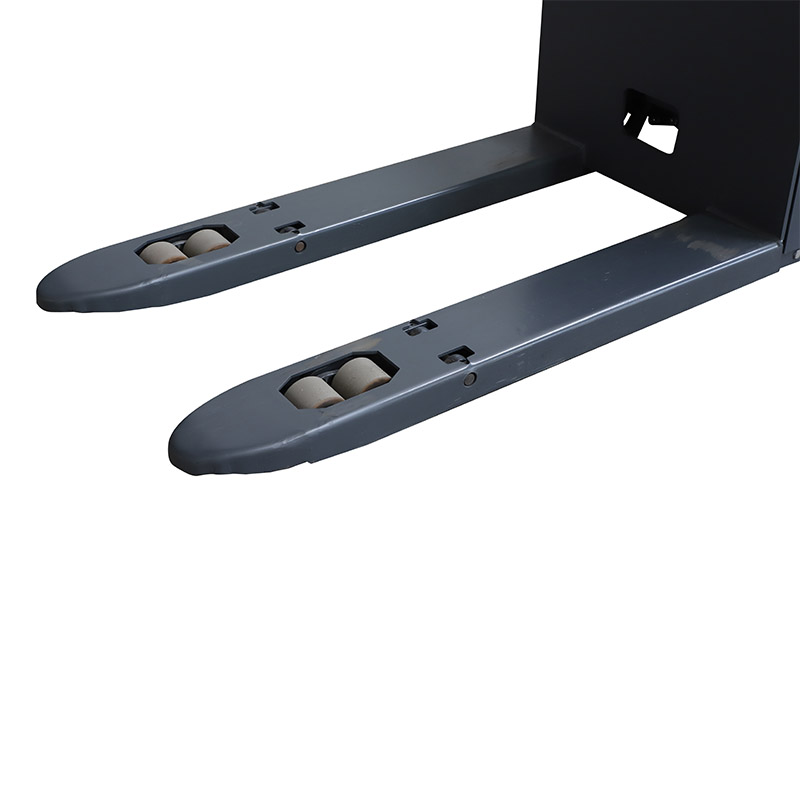

	Fork length		mm	1150
	Fork outside width	B1	mm	680
	Fork inside width	B2	mm	340
	Fork thickness		mm	65
	Fork height when fork lowered to lowest	S	mm	85
	Min ground clearance		mm	5
	Theoretical width of minimum aisle for right-angle stacking （1200x1000）	Asts	mm	2020
	Minimum turning radius (without platform)	Wa	mm	1410
	Minimum turning radius (with platform)	Wa1	mm	\
Tire	Front wheel		mm	85*70
	Drive wheel		mm	210*75
	Caster wheel		mm	75*50
	Wheel material	polyurethane
Electrical components	Drive motor type	DC series motor
	Rated output		kw	1.2
	Hoist motor type	DC series motor
	Rated output		kw	1.2
Battery	Voltage		V	48
	Capacity		AH	20
	Weight		kg	~10
