Electric Counterbalanced Forklift

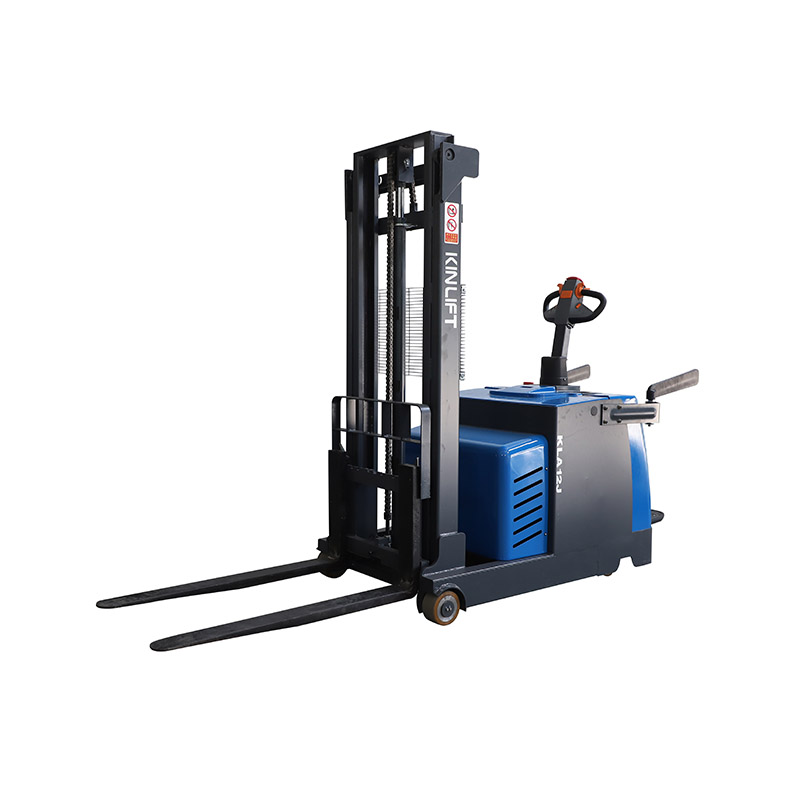

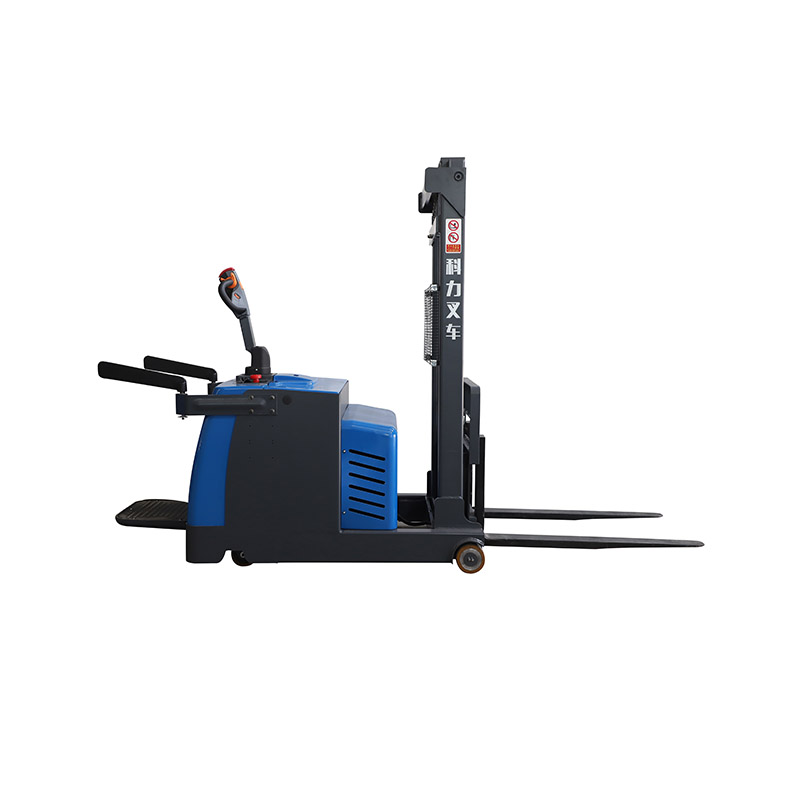

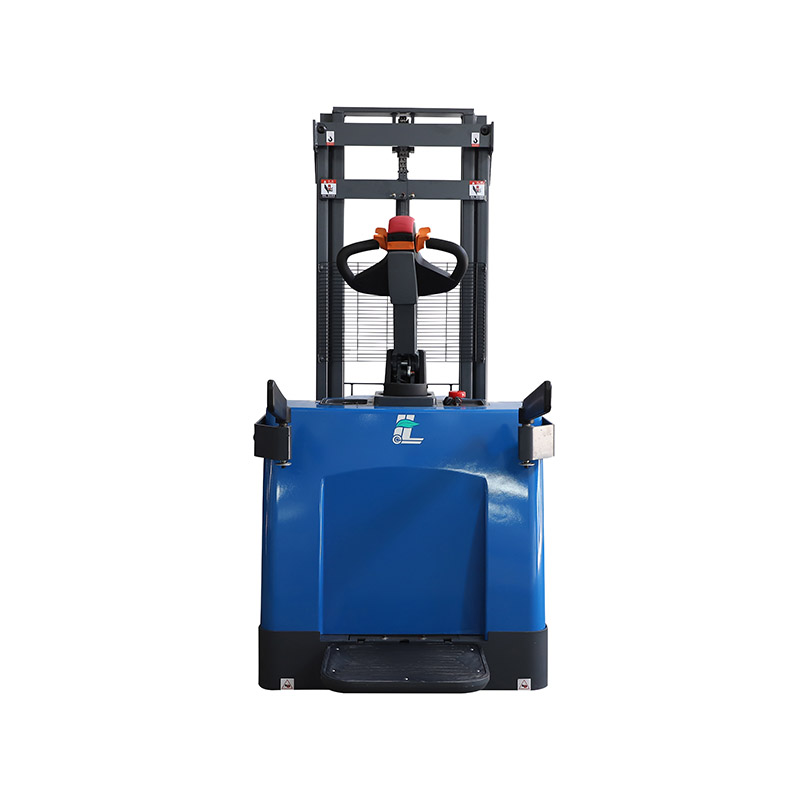

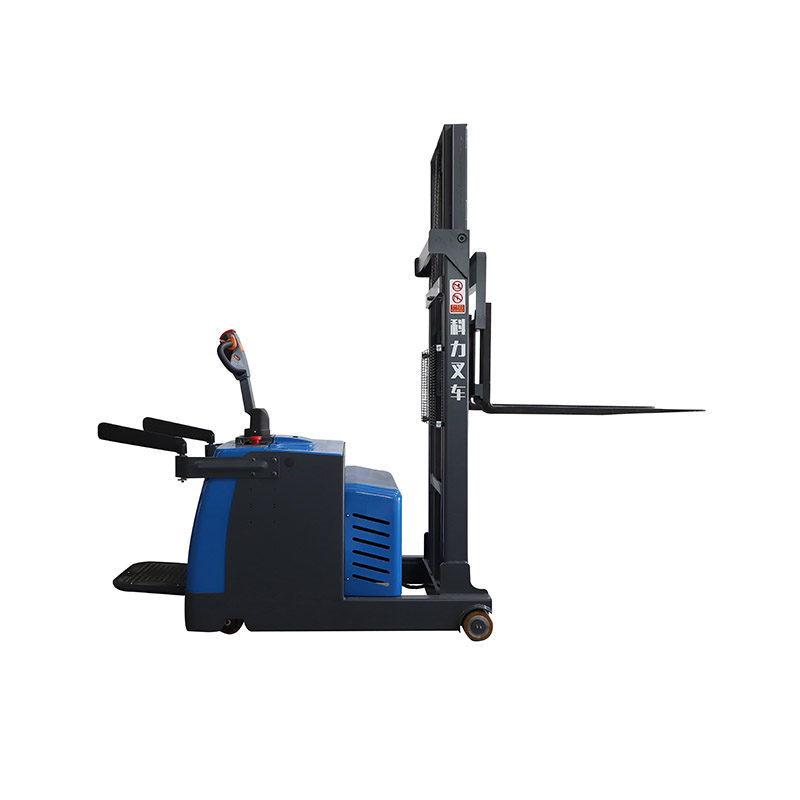

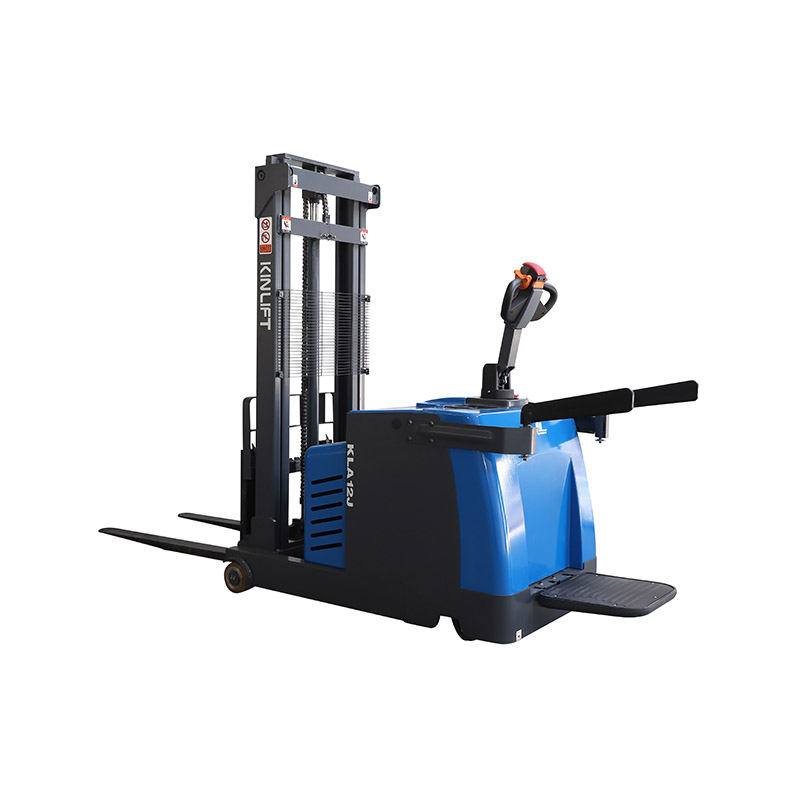

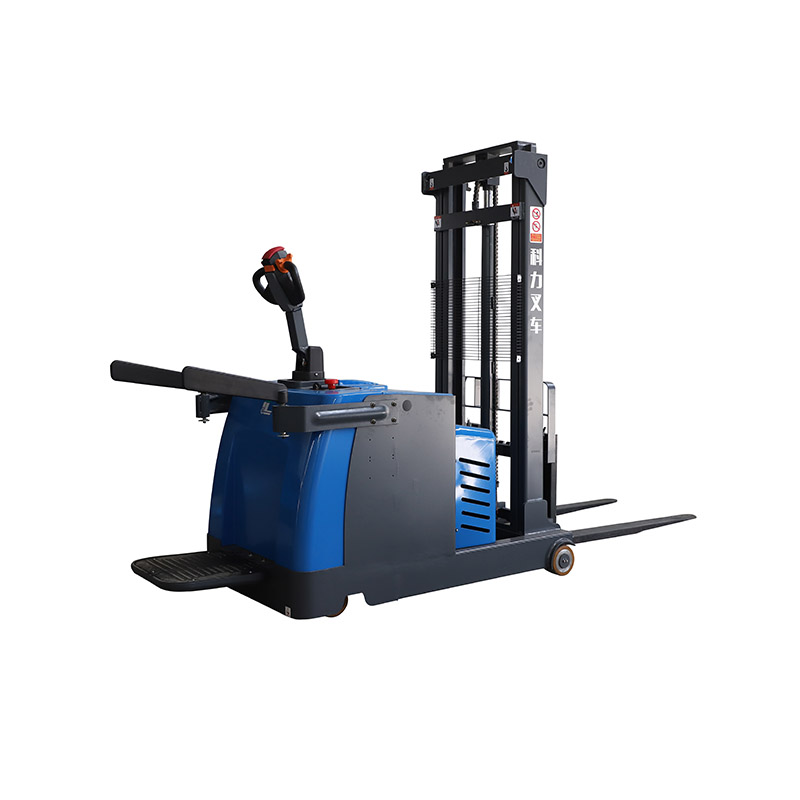

KLA-12J Series 1.2T 1.6m-3.5m Electric Counterbalanced Pallet Stacker

Product introduction
1. Designed for single-sided and double-sided palletized cargo with superior versatility.
2. Forkless leg counterweight, its short wheelbase allows for efficient stacking in narrow aisles and smooth ground operations.
3. The handle-type steering operation ensures comfort and ease of use, improving the overall user experience.
4. Equipped with a horizontal drive AC motor, there is no need to worry about replacing carbon brushes. This motor provides excellent ramp starting performance and reliable operation.
5. The forklift has an automatic braking function, which significantly improves work efficiency and extends the service life of the motor. This energy saving capability adds value to your operation.
6. With Kinlift dedicated controller, ALBRIGHT contactor and AMP waterproof power connector, our forklifts are able to provide top-notch performance.
7. Experience enhanced forklift passing performance with our unique drive damping technology. It ensures a smooth and stable ride even in challenging environments.
8. Use national standard 1244 plate chain to replace the traditional roller chain. This ensures safer cargo lifting operations.
9. For added convenience, our forklifts are equipped with foldable standing pedals with shock absorption function. Provide a comfortable and stable platform for operators.
10. The automatic power-off function will be activated when the forklift is raised to ensure safety and efficiency.
Optional Configurations:
Special models for cold storage
Large capacity battery 270AH/300AH
Lithium battery
Get A Quote
PREV: KLA-I Series 1.0-3.5T 3-6M Electric Counterbalanced 4-wheeler Forklift
NEXT: No Next Article
  • Product Details
  • Load Chart
  • Video
  • Contact Us
Model KLA12J
Performance Maximum load capacity kg 1200
load center Q mm 500
Maximum lifting height H3 mm 1600
Travel speed (without load) km/h 5.5
Travel speed (with load) km/h 5
Lifting speed (without load) mm/s 174
Lifting speed (with load) mm/s 101
lowering  speed(without load) mm/s 152
Lowering  speed (with load)  mm/s 150
Gradeability (without load ) % 7
Gradeability (with load ) % 6
Service weight (with battery)         kg ≈1405
Dimensions Overall length of frame L mm 2536
Overall length of frame(with platform) mm 2956
Overall width of frame  B mm 940
Overall height when Mast lowered to lowest H1 mm 2095
Overall height when Mast lifted to highest H4 mm 2366
Wheelbase Y mm 1100
Fork length  mm 1070
Fork spread width mm 210-670
Fork width mm 100
Fork height when fork lowered to lowest S mm 60
Min ground clearance  mm 45
Theoretical width of minimum  aisle for right-angle  stacking （1200x1000） Asts mm 2678
Minimum turning radius (without platform) Wa mm 1438
Minimum turning radius (with platform) Wa1 mm 1810
Tyre Front wheel mm 140*80
Drive wheel mm 250*80
Caster wheel mm 140*80
Wheel material polyurethane
Electrical components Drive motor type  AC series motor
Rated output kw 1.5
Hoist motor type DC series motor
Rated output kw 2.2
Battery

 Voltage V 24
Capacity AH 100
Weight kg 35

Mast type     Max fork height Mast lowered       Mast extended
KLA12J KLA12J KLA12J
Simplex or Duplex mast   (2Stage) 2000 1485 2766
2500 1735 3266
3000 1985 3766
3500 2235 4266
