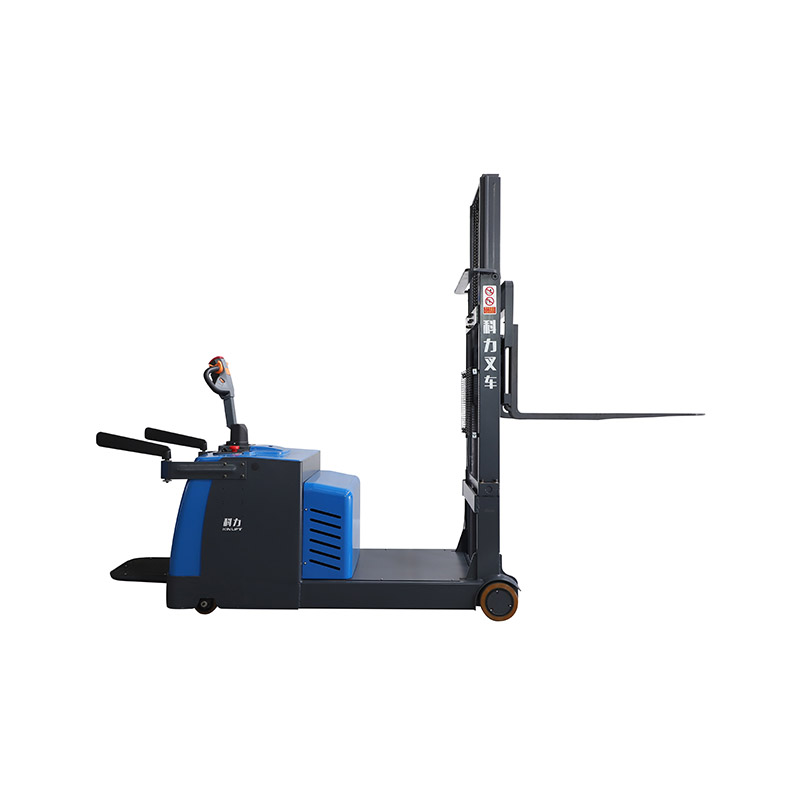

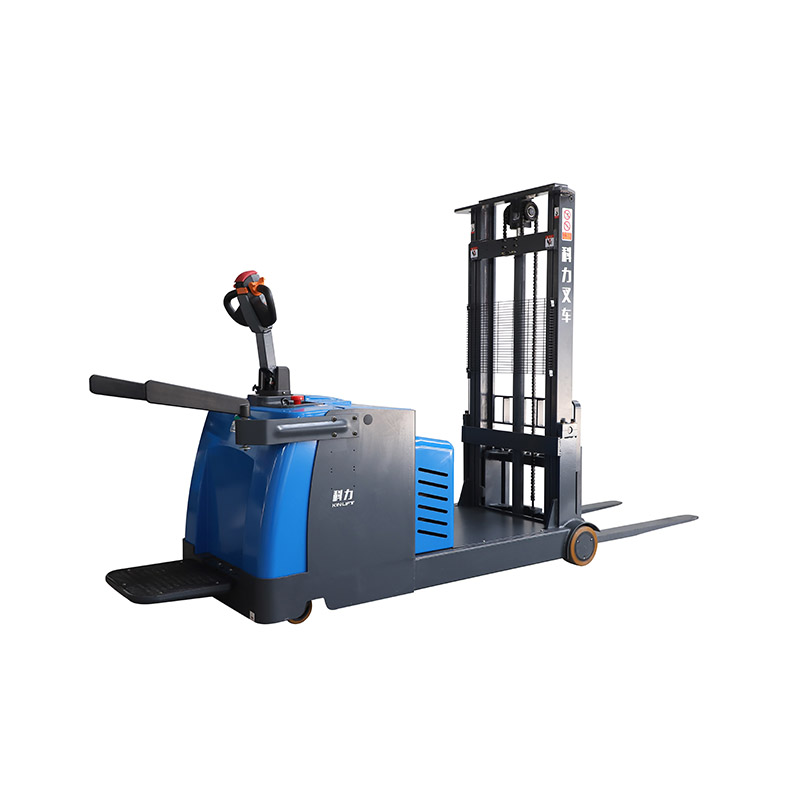

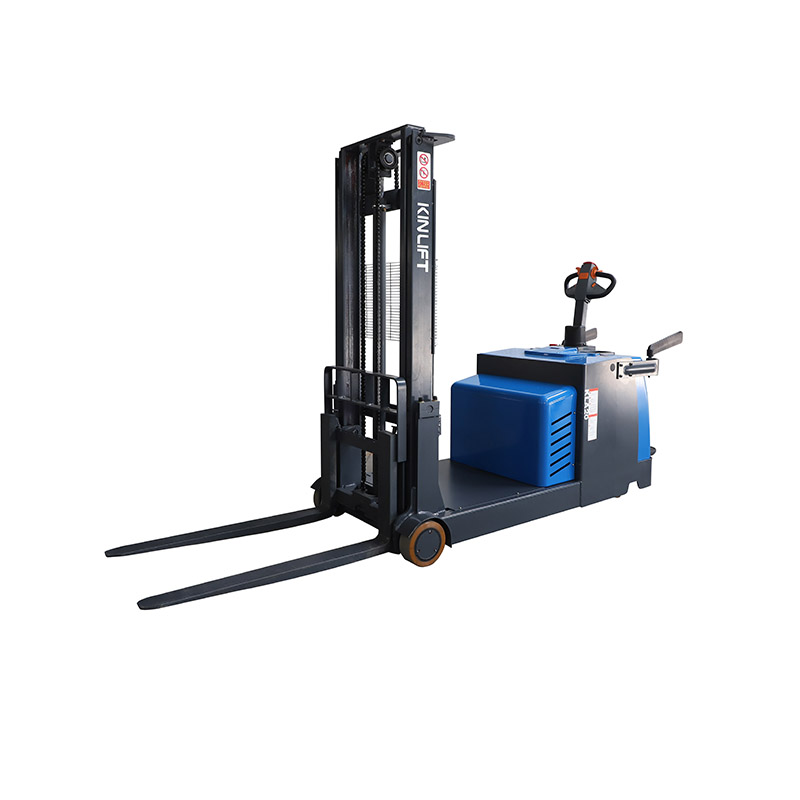

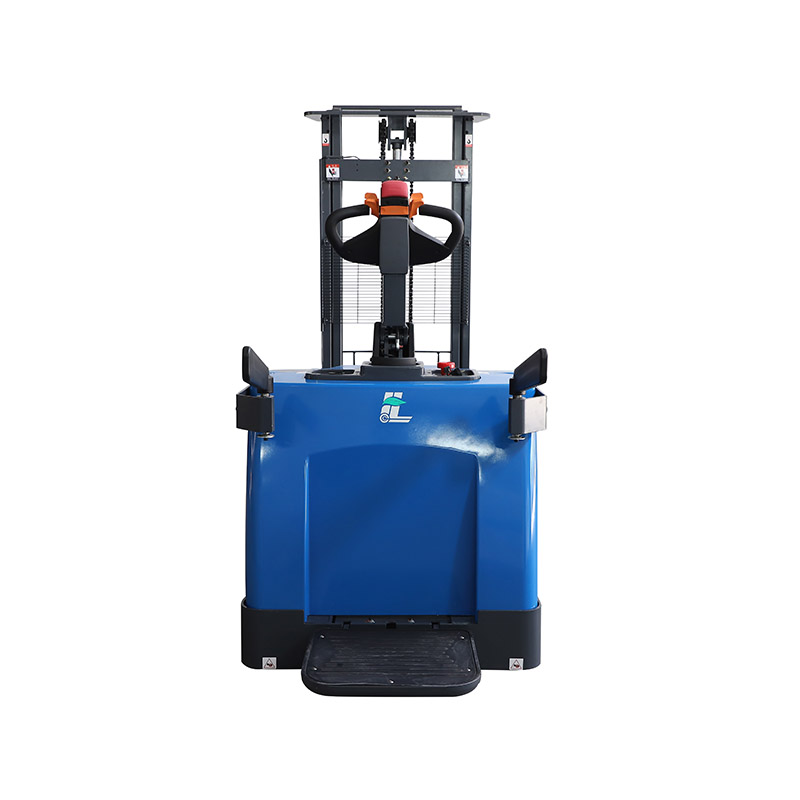

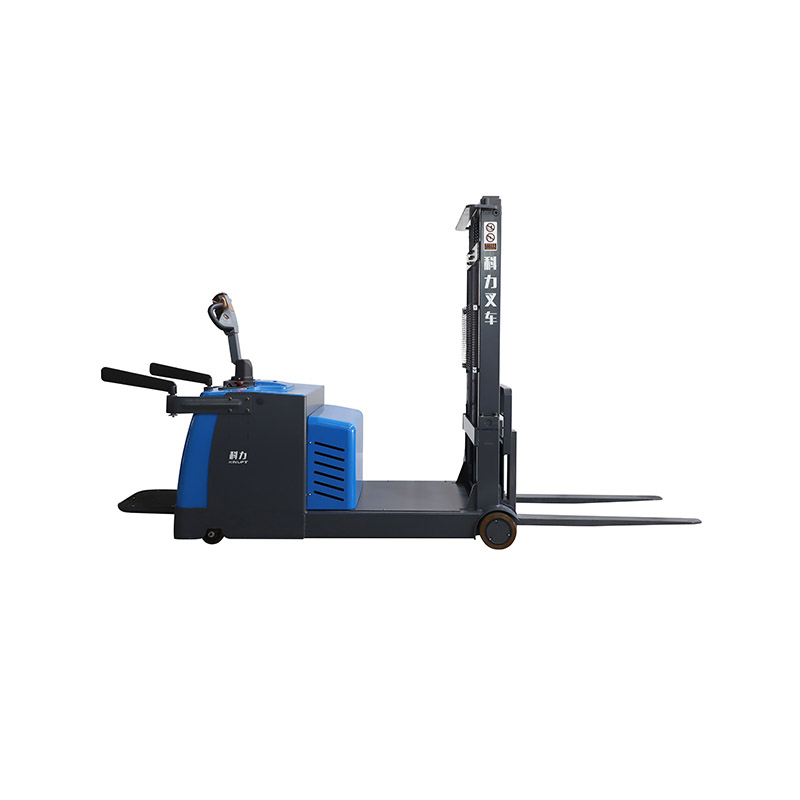

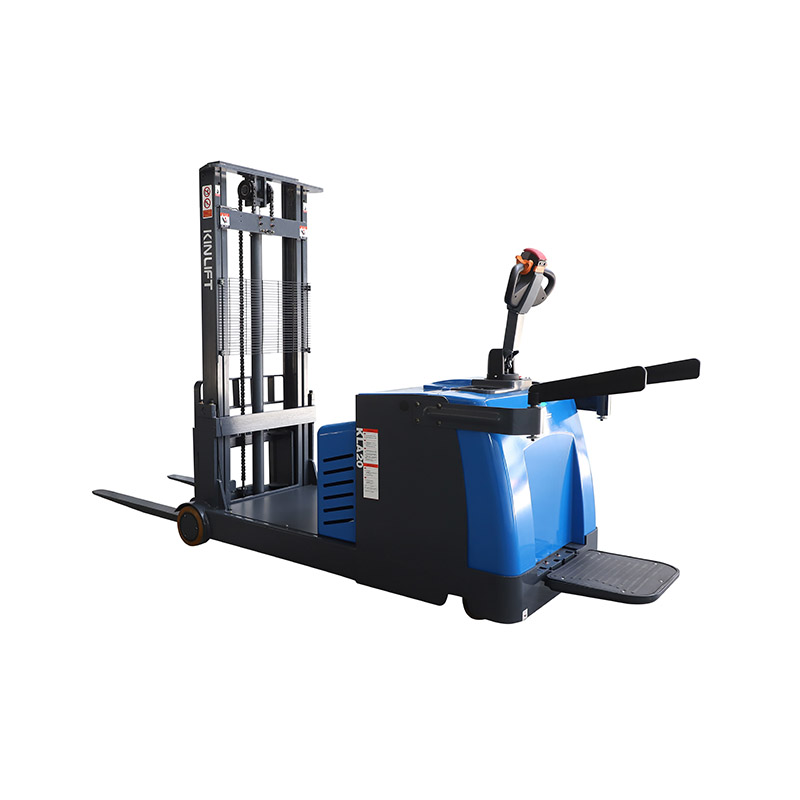

KLA Series 1T-2T 1.6m~4m Fully electric Counterbalanced Stackers

◎Load capacity：1500-2500kg

◎Rated lift：3000-13000mm

◎Speed：8km/h

Get A Quote

Brief Introduction of Product:

What is fully electric Counterbalanced Stackers? Stacker is the main lifting and transportation equipment in the three-dimensional warehouse. It is a special hoisting equipment developed with the three-dimensional warehouse. The use of this unequipped warehouse can reach up to 4m. Most of them are within 10~25m. The main purpose of the stacker is to run back and forth between the roadways of the three-dimensional warehouse, and store the goods in the second lane into the storage compartment. Or take out the goods in the cargo compartment and transport them to the entrance of the roadway. This equipment can only be operated in a warehouse. Other equipment is also required to allow goods to enter and leave the warehouse.

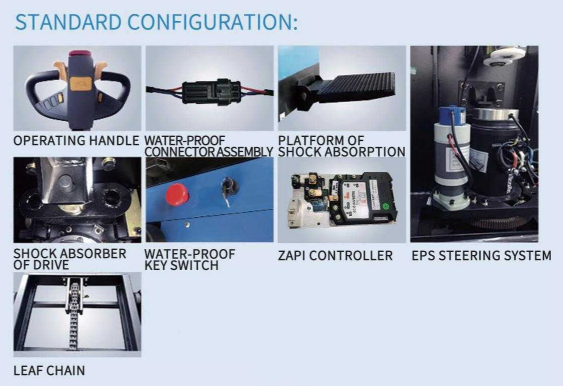

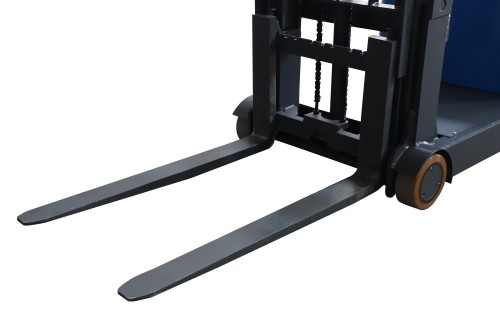

◎ No straddle legs with counterweight, single-faced and double-faced pallets are both applicable.

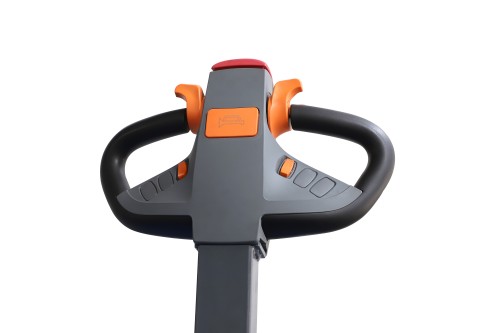

◎ It is comfortable and easy to operate by an operating handle.

◎ EPS steering system enables the operator steer the stacker with less force, increasing the sensitivity, improving the characteristics of steering reversal, so the travel speed slows down automatically as travelling on the curve to make the driving easier and safer.

◎ No need carbon brush is Vertical drive of AC motor that has a better start function and regenerating braking function on the ramp, effectively increasing the work efficiency and service duration of electric motor, plus more energy-saving.

◎ Main controller of Main controller of Kinlift ,contactor of ALBRIGHT, water-proof connector assembly of electric power supply of AMP

◎ Use national standard 1244 leaf chain to replace traditional roller chain and enable the lifting performance much safer.

◎ Superior passage-ability is achieved via Peculiar shock-absorption of drive.

◎ Driving on rider platform that is with shock-absorption performance.

◎ Cut off power supply automatically at the top lifting height.

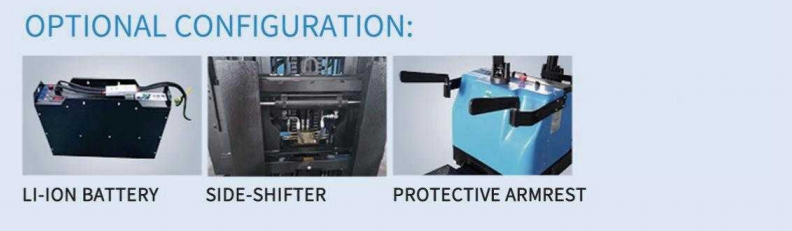

Optional Configuration:

◎ Special model for refrigerated storage

◎ Imported battery pack

◎ High-capacity battery 270 AH/ 300 AH

◎ Tilting function of mast

◎ Able-dismantled and folded protective armrest

◎ Li-ion battery
◎ Fork side shift function

Jiangsu Kinlift Equipment Co., Ltd.

Kinlift is China Wholesale KLA Series 1T-2T 1.6m~4m Fully electric Counterbalanced Stackers Company and Wholesale KLA Series 1T-2T 1.6m~4m Fully electric Counterbalanced Stackers Factory. Kinlift is a professional manufacturer of electric warehousing forklift equipment. It focuses on the research and development, production, and sales of light and small warehousing vehicles, and provides customers with special material handling and stacking optimization solutions. Its products include electric pallet trucks, All-electric stackers, reach electric forklifts, counterbalanced electric forklifts, electric tractors, and picking trucks that can also be customized according to customer requirements. Our users cover manufacturing, logistics, construction, Military industry, medicine, food, chemical industry, electronics, machinery, furniture, textile industry, chemical industry, metallurgy industry, energy industry, and many other industries. Kinlift has set up different corporate departments with excellent human resources plus sophisticated processing equipment, which is the guarantee and foundation for offering the customers all the superior products. The company has passed ISO 9001:2015 Quality Management Certification, and all the products of the electric forklift series have obtained a “ Special Equipment Manufacturing License Certificate”, in addition to possessing several Utility Model Patents issued by China National Intellectual Property Administration. The core values of KINLIFT are “ Quality, Reliable Technology, Sophisticated Management, Marketing of Service. The Credo of KINLIFT: Quality is Power, Service is Evergreen, and Customer is the Future.

Logistics and warehousing solutions:

Solution application: Our warehouse electric forklifts are suitable for various cargo handling, loading, unloading and storage needs in the logistics and warehousing industry. Whether inside the warehouse or in the logistics center, our forklifts can efficiently complete various tasks and improve logistics efficiency. Service advantages: We provide customized solutions, designed and adjusted according to your specific needs and warehousing environment. Our forklifts have excellent maneuverability and flexibility and can adapt to complex warehousing environments.

Retail and wholesale solutions:

Solution application: Our electric warehouse forklifts are suitable for the cargo handling, loading, unloading, and storage needs of the retail industry. Whether inside a warehouse or in a retail store, our forklifts can efficiently complete the loading and unloading of goods, inventory management, and replenishment tasks, improving the efficiency of retail operations. Service advantages: We understand the retail industry's requirements for logistics agility and accuracy, and our forklifts are characterized by quick response and flexible control.

Certificate of Honor

Model				KLA10	KLA15	KLA20
Performance	Maximum load capacity		kg	1000	1500	2000
	load center	Q	mm	500	500	600
	Maximum lifting height	H3	mm	1600	1600	1600
	Travel speed (without load)		km/h	5.5	5.5	5.5
	Travel speed (with load)		km/h	5	5	5
	Lifting speed (without load)		mm/s	121	121	121
	Lifting speed (with load)		mm/s	81	81	81
	lowering speed(without load)		mm/s	105	105	105
	Lowering speed (with load)		mm/s	103	103	103
	Gradeability (without load )		%	7	7	7
	Gradeability (with load )		%	6	6	6
	Service weight (with battery)		kg	1596	1696	1796
Dimensions	Overall length of frame	L	mm	3160	3160	3160
	Overall length of frame(with platform)		mm	3486	3486	3486
	Overall width of frame	B	mm	940	940	940
	Overall height when Mast lowered to lowest	H1	mm	2095	2095	2095
	Overall height when Mast lifted to highest	H4	mm	2366	2366	2366
	Wheelbase	Y	mm	1630	1630	1630
	Fork length		mm	1070	1070	1070
	Fork spread width		mm	210-670	210-670	210-670
	Fork width		mm	100	100	100
	Fork height when fork lowered to lowest	S	mm	60	60	65
	Min ground clearance		mm	55	55	55
	Theoretical width of minimum aisle for right-angle stacking （1200x1000）	Asts	mm	3360	3360	3360
	Minimum turning radius (without platform)	Wa	mm	1925	1925	1925
	Minimum turning radius (with platform)	Wa1	mm	2320	2320	2320
Tyre	Front wheel		mm	210*85	210*85	210*85
	Drive wheel		mm	230*75	230*75	230*75
	Caster wheel		mm	130*55	130*55	130*55
	Wheel material	polyurethane
Electrical components	Drive motor type	AC series motor
	Rated output		kw	1.5	1.5	1.5
	Hoist motor type	DC series motor
	Rated output		kw	2.2	2.2	2.2
Battery	Voltage		V	24
	Capacity		AH	210
	Weight		kg	195

Mast type	Max fork height	Mast lowered	Mast extended
	Max fork height	Mast lowered	Mast extended
	KLA10/15/20	KLA10/15/20	KLA10/15/20
Simplex or Duplex mast (2Stage)	2000	1485	2766
	2500	1735	3266
	3000	1985	3766
	3500	2235	4266
	4000	2485	4766

Lift Height(mm)	Load Center at 500 mm			Load Center at 600 mm
Lift Height(mm)	KLA10	KLA15	KLA20	KLA10	KLA15	KLA20
1600	1000	1500	2000	1000	1500	2000
2000	1000	1500	2000	1000	1500	2000
2500	1000	1500	2000	900	1400	1900
3000	1000	1500	2000	700	1200	1600
3500	800	1200	1600	500	1000	1300
4000	600	900	1200	300	800	1100

Model Overview
Model	Maximum capacity (kg)	Maximum lift height (mm)	Overall width (mm)	Travel speed (km/h)	Battery voltage (V)
KLA10	1000	4000	940	5.5	2.2
KLA15	1500	4000	940	5.5	2.2
KLA20	2000	4000	940	5.5	2.2
