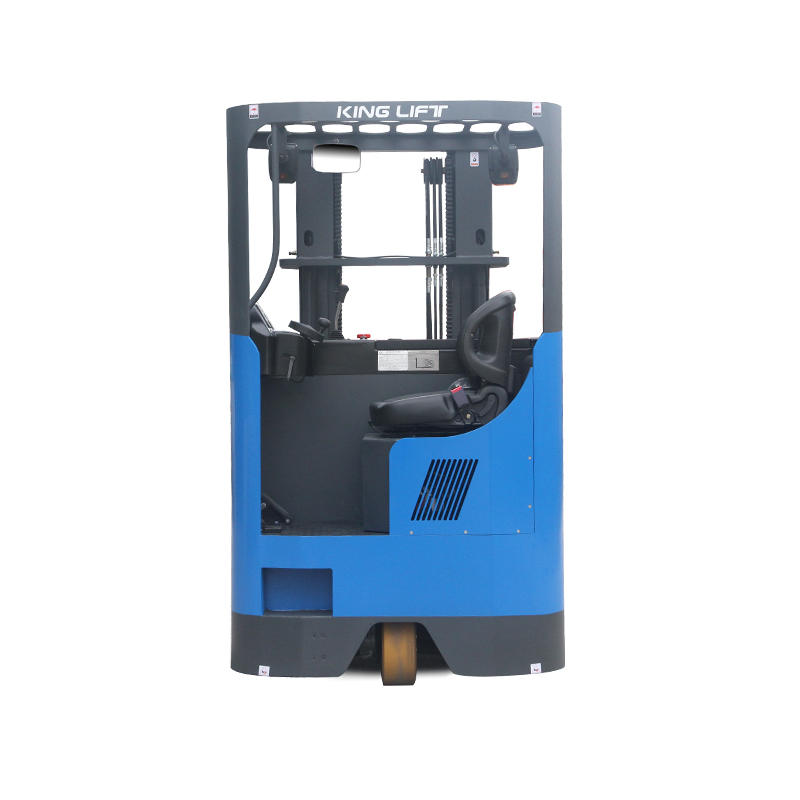

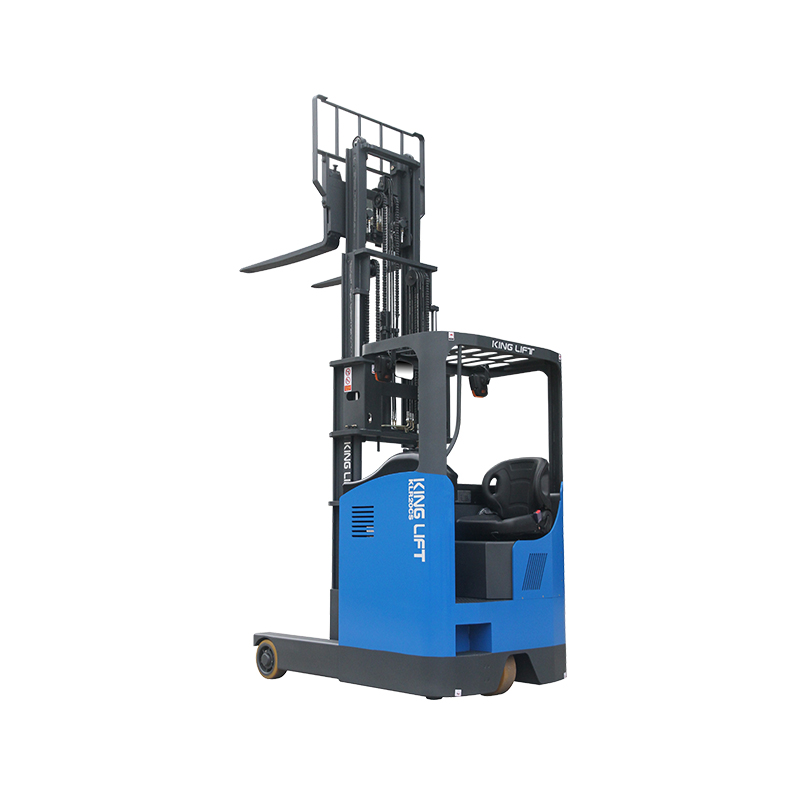

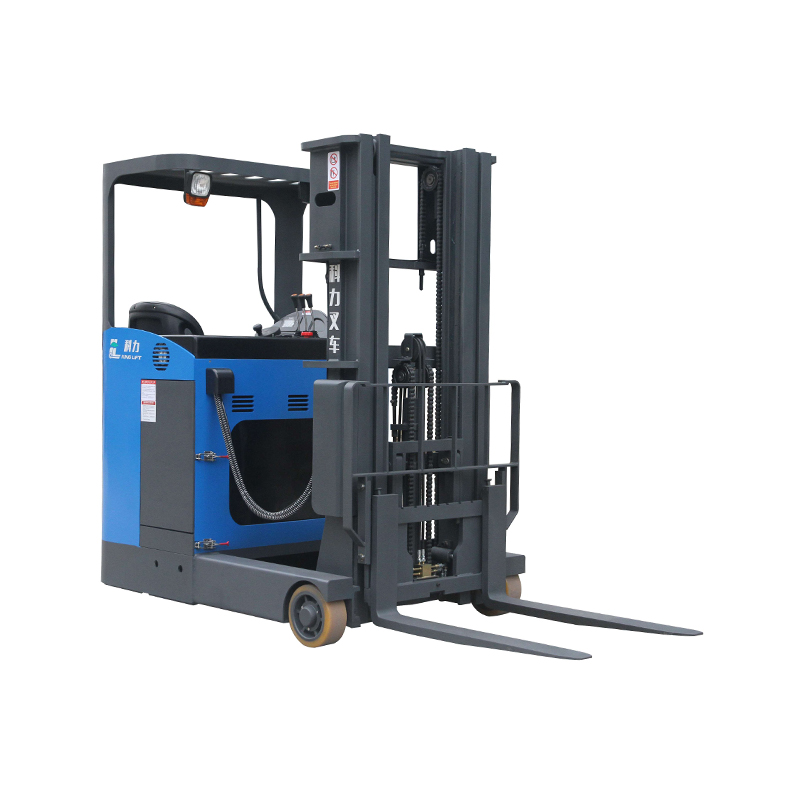

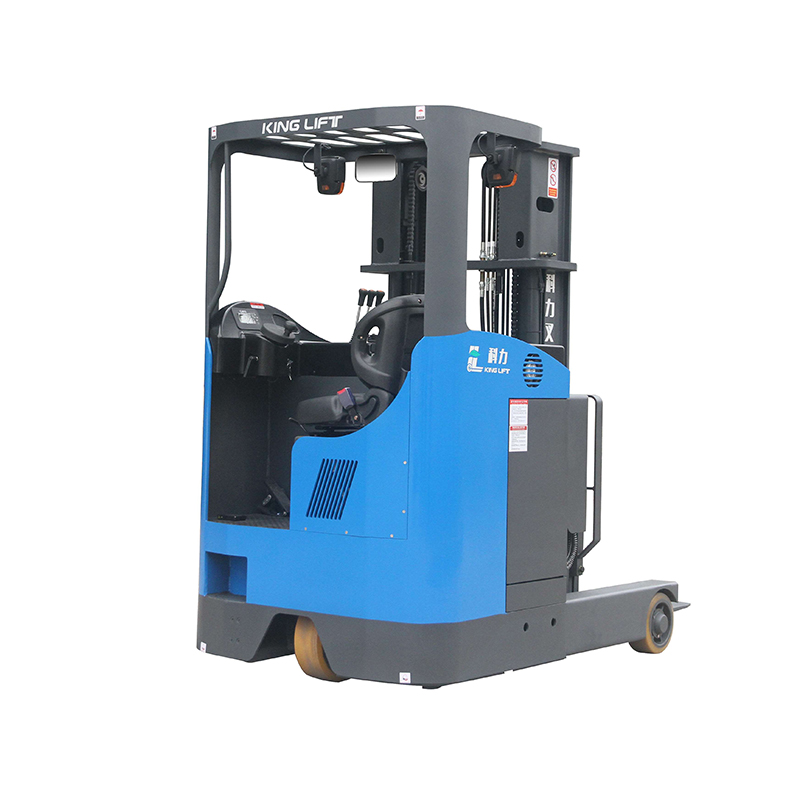

KLR-C Series 1.5T-2.5T 3m~9.5m Stand-up Electric Reach Forklift

Brief Introduction of Product:

What is Electric High-functioning Reach sit-down Forklifts? Pallet truck is a kind of forklift, that is, logistics handling equipment that plays the role of moving goods. When in use, the forks carried by it are inserted into the pallet holes, and the hydraulic system is driven by manpower to realize the lifting and lowering of the pallet goods, and the manpower is pulled to complete the handling operation. It is the simple, effective, and common loading and unloading and handling tool among pallet transportation tools.

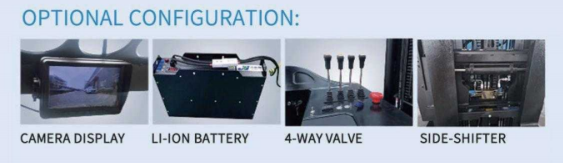

Optional Configuration:

◎ Special model for refrigerated storage.

◎ Imported battery pack

◎ Side-shifter of goods fork & forks carriage.

◎ Li-ion battery

◎ Camera display

Get A Quote

Model				KLR15C	KLR20C	KLR25C
Performance	Maximum load capacity		kg	1500	2000	2500
	load center	Q	mm	500	500	500
	Maximum lifting height	H3	mm	3000	3000	3000
	Reach length	E	mm	550	550	550
	Tiltiing angle (up/down)	deg	°	3/5	3/5	3/5
	Travel speed (without load)		km/h	8	8	8
	Travel speed (with load)		km/h	7	7	7
	Lifting speed (without load		mm/s	244	244	244
	Lifting speed (with load)		mm/s	94	94	94
	Lowering speed (without load)		mm/s	224	224	224
	Lowering speed (with load)		mm/s	700	700	700
	Gradeability(without load )		%	15	15	15
	Gradeability(with load )		%	8	8	8
	Service weight(with battery)		kg	2430	3020	3050
Dimensions（尺寸）	Overall length of frame excluding fork length & mast reach length	L	mm	1890	1890	1990
	Overall length including fork length excluding mast reach length	G	mm	2479	2479	2579
	Overall length including mast reach length	G1	mm	3029	3029	3129
	Overall width of frame	B	mm	1270	1270	1270
	Overall height when mast lowered to lowest	H1	mm	2084	2084	2084
	Overall height when mast lifted to highest	H4	mm	4045	4045	4045
	Wheelbase	Y	mm	1510	1510	1610
	Fork size		mm	107035100	107040100	107040120
	Adjustable range of fork outside width	R	mm	210-820	210-820	250-820
	Fork height when fork lowered to lowest	S	mm	60	65	65
	Min ground clearance		mm	30	30	30
	Theoretical Width of minimum aisle for right-angle stacking （1200x1000）	Asts	mm	2673	2673	2772
	Minimum turning radius	Wa	mm	1783	1783	1882
	Overhead guard height		mm	2190	2190	2190
Tire	Front wheel		mm	267*114	267*114	267*114
	Drive wheel		mm	340*130	340*130	340*130
	Wheel material	polyurethane
Electrical components	Drive motor type	AC series motor
	Rated output		kw	5	5	5
	Hoist motor type	DC series motor
	Rated output		kw	6.3	6.3	6.3
Battery	Voltage		V	48
	Capacity		AH	325	440	440
	Weight		kg	600	740	740

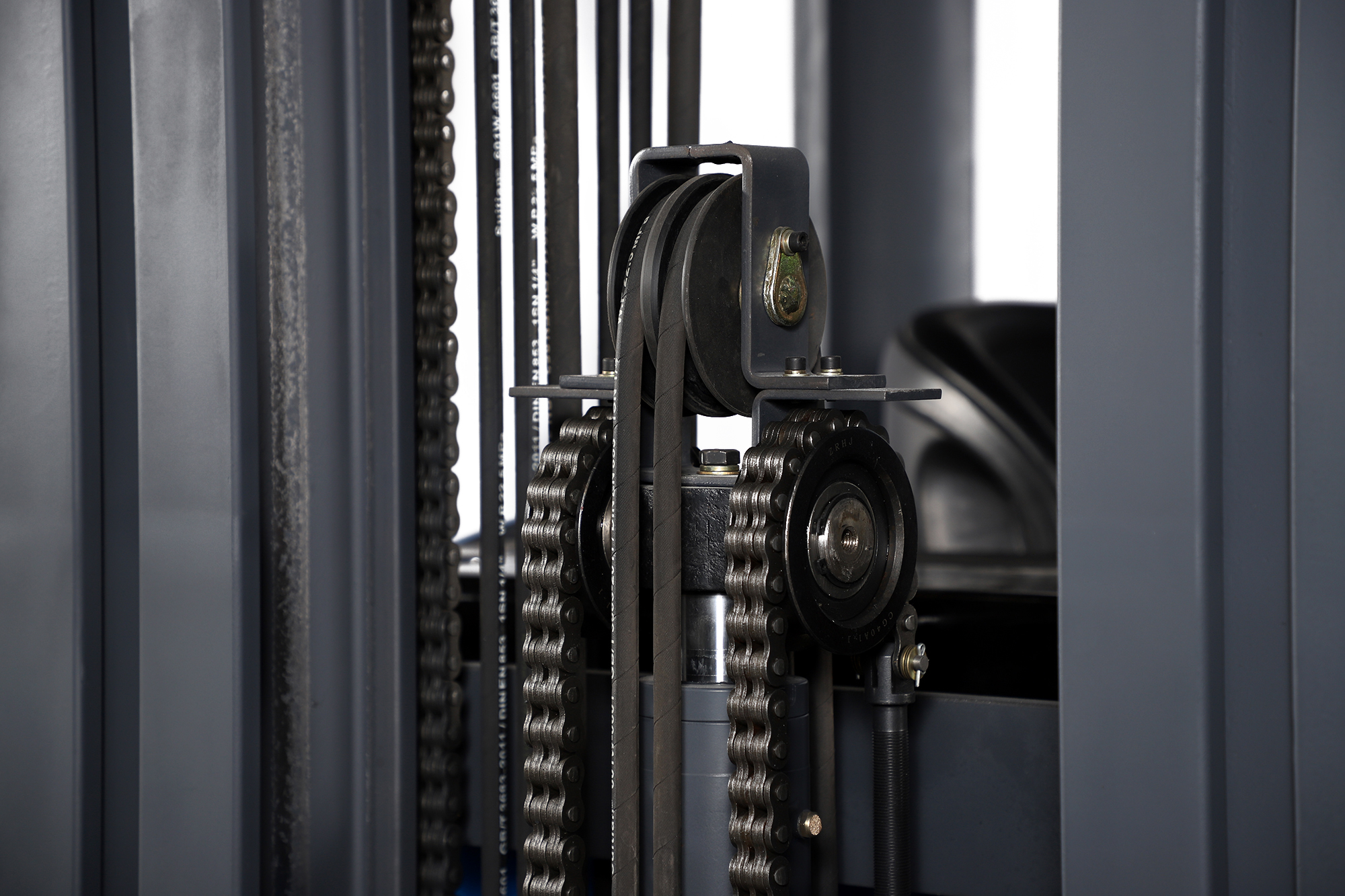

Mast type	Max fork height	Mast lowered	Mast extended	Free Lift
Simplex or Duplex mast (2stage)	2500	1834	3545
	3000	2084	4045
	3500	2334	4545
	4000	2634	5045
	4500	2884	5545
Triplex mast（3stage full free lift）	4000	2034	5071	1326
	4500	2184	5537	1492
	5000	2334	6011	1666
	5500	2534	6569	1824
	6000	2734	7045	2000
	6500	2934	7515	2170
	7000	3084	8085	2340
	7500	3284	8495	2500
	8000	3484	8995	2620
