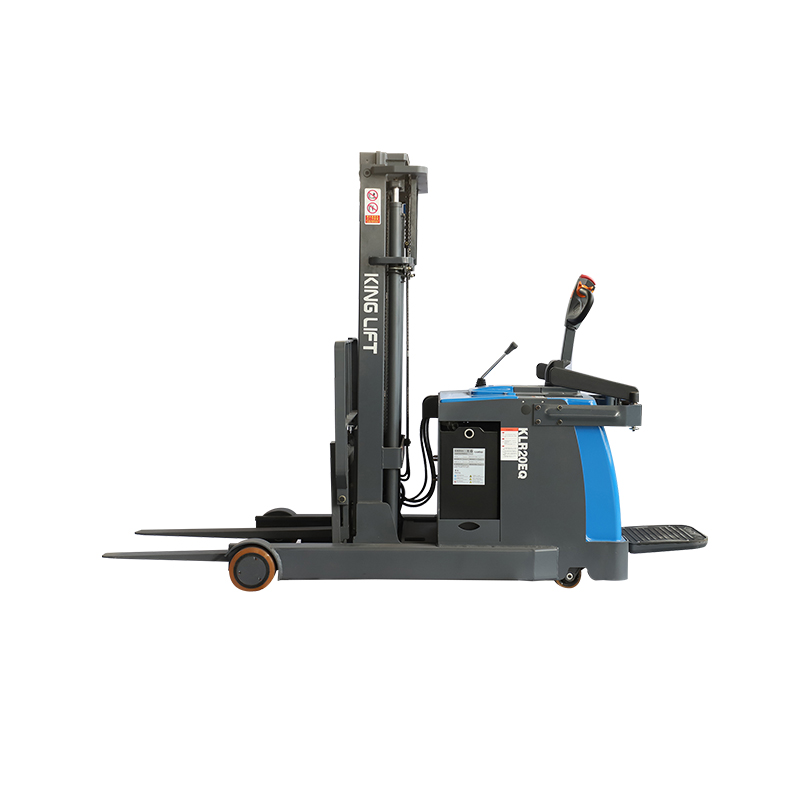

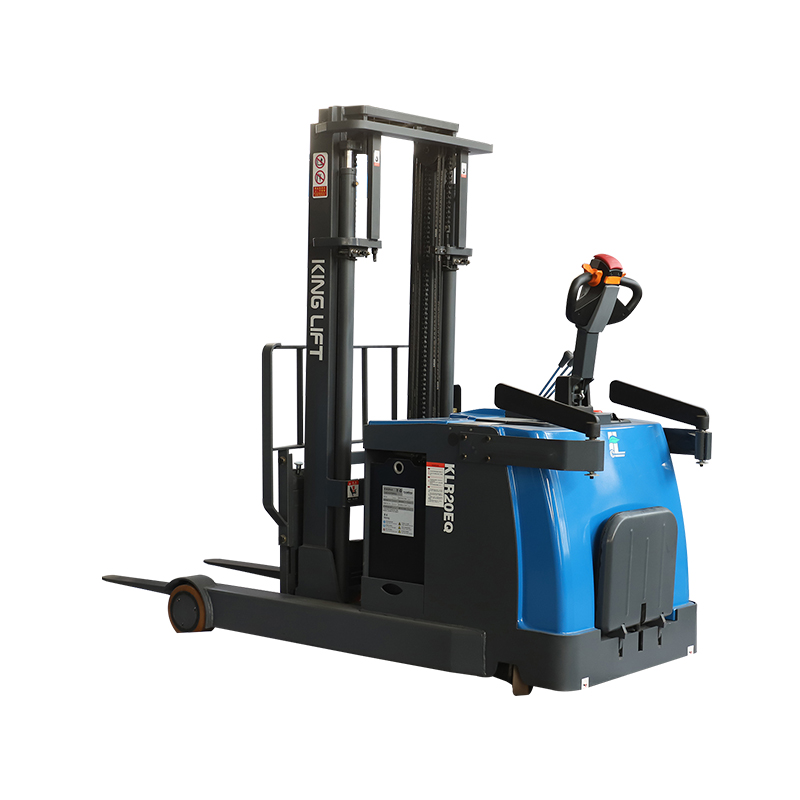

KLR-E Series 1T-2T 1.6m~6m Stand-up Electric Reach Forklift with PLATFORM

Brief Introduction of Product:
What is electric Reach Forklifts with Rider Platform? Electric Reach Forklifts with Rider Platform are industrial handling vehicles, which refer to various wheeled handling vehicles for loading and unloading, stacking and short-distance transportation of palletized goods. The International Organization for Standardization ISO/TC110 is called an industrial vehicle. It is often used for the transportation of large objects in storage, and is usually driven by fuel engines or batteries.

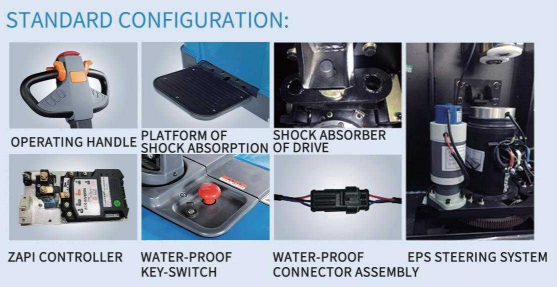

◎ Counterbalanced without straddle legs, workable for both single-faced and double-faced pallets.

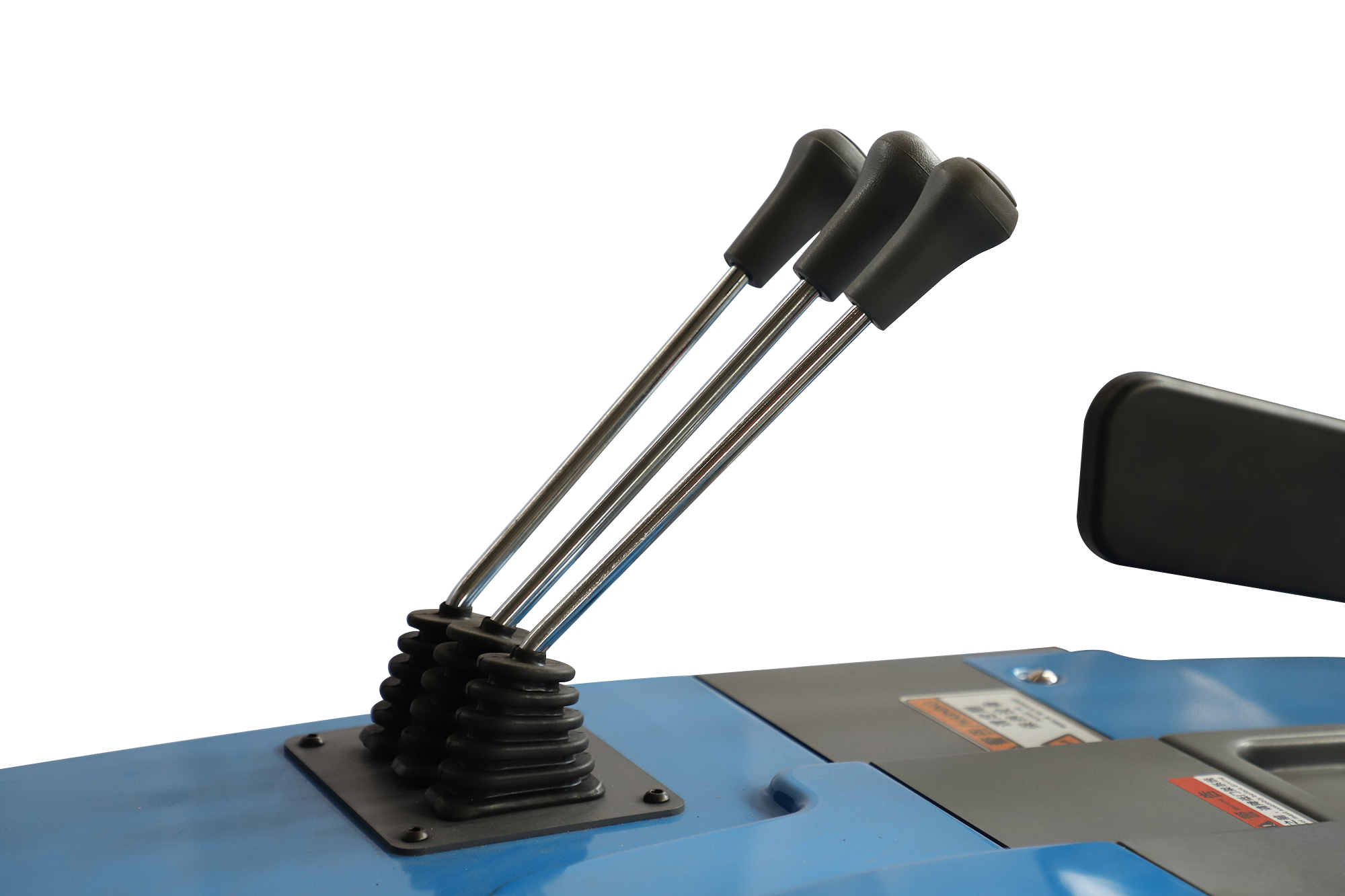

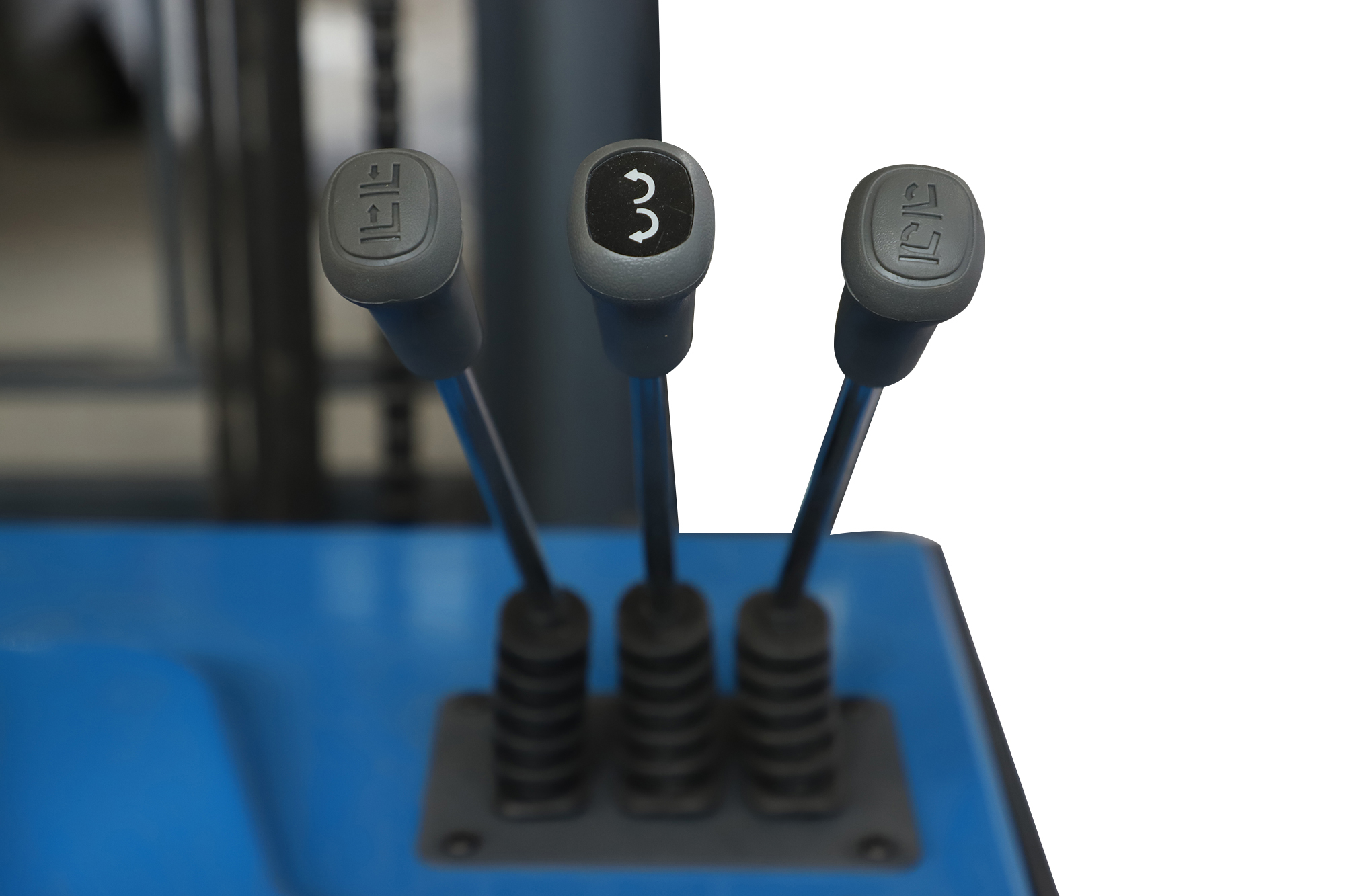

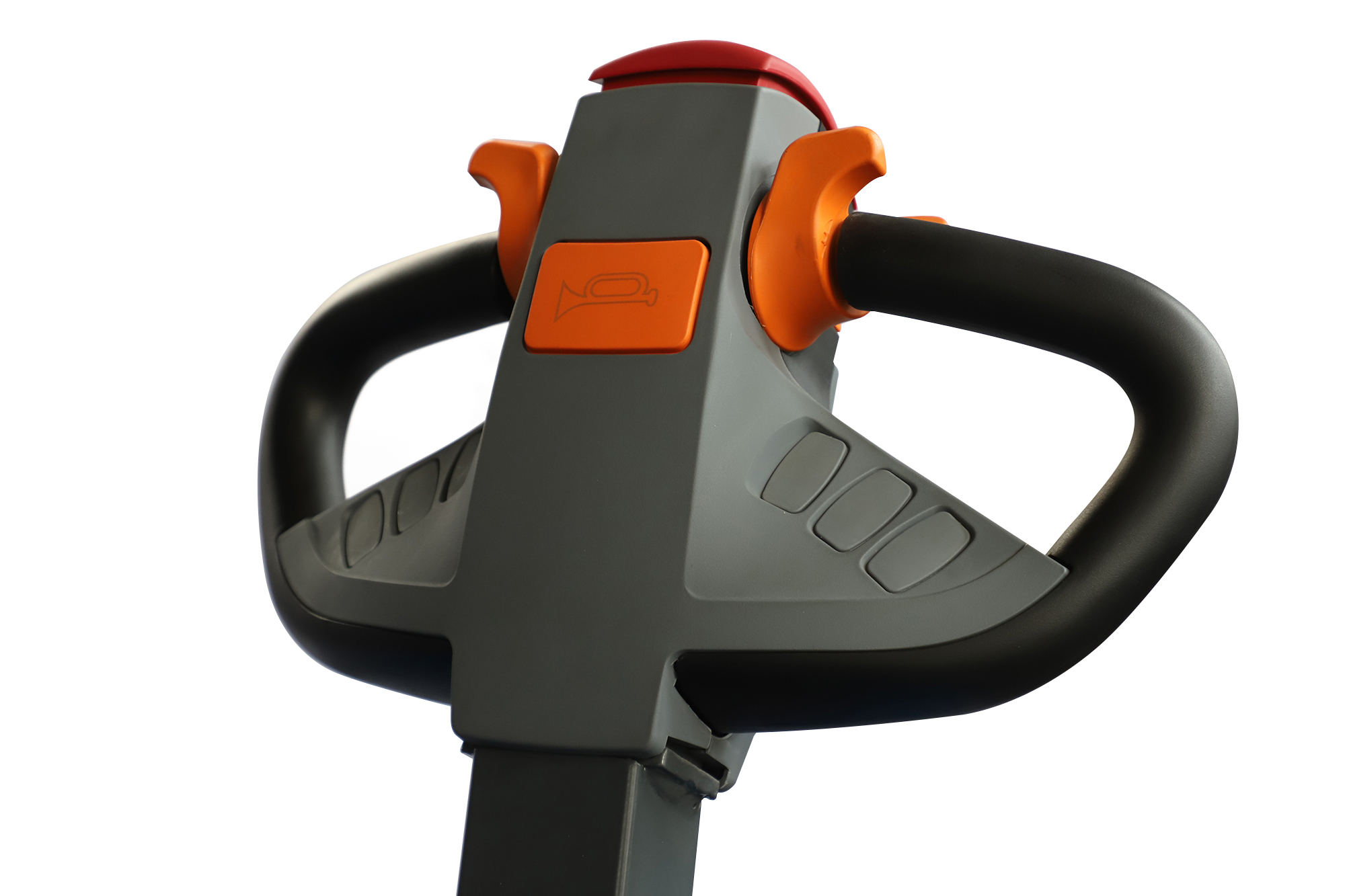

◎ It is easy and comfortable to operate by the operating handle.
◎ The steering system of EPS reduces operation force, boosts the sensitivity, improves the characteristics of turning the steering back, in addition, the function of automatic deceleration on curve road, which enables the operation convenient and safe.
◎ Vertical AC main drive is brushless Motor, with better startability on the slope, renewing the brake function, effectively increases the machine’s work efficiency and service durability with more power-saving.
◎ With ZAPI controller, ALBRIGHT contactor, AMP water-proof connector assembly.
◎ Peculiar drive shock-absorption system enables the vehicle perform with more superior pass-ability.

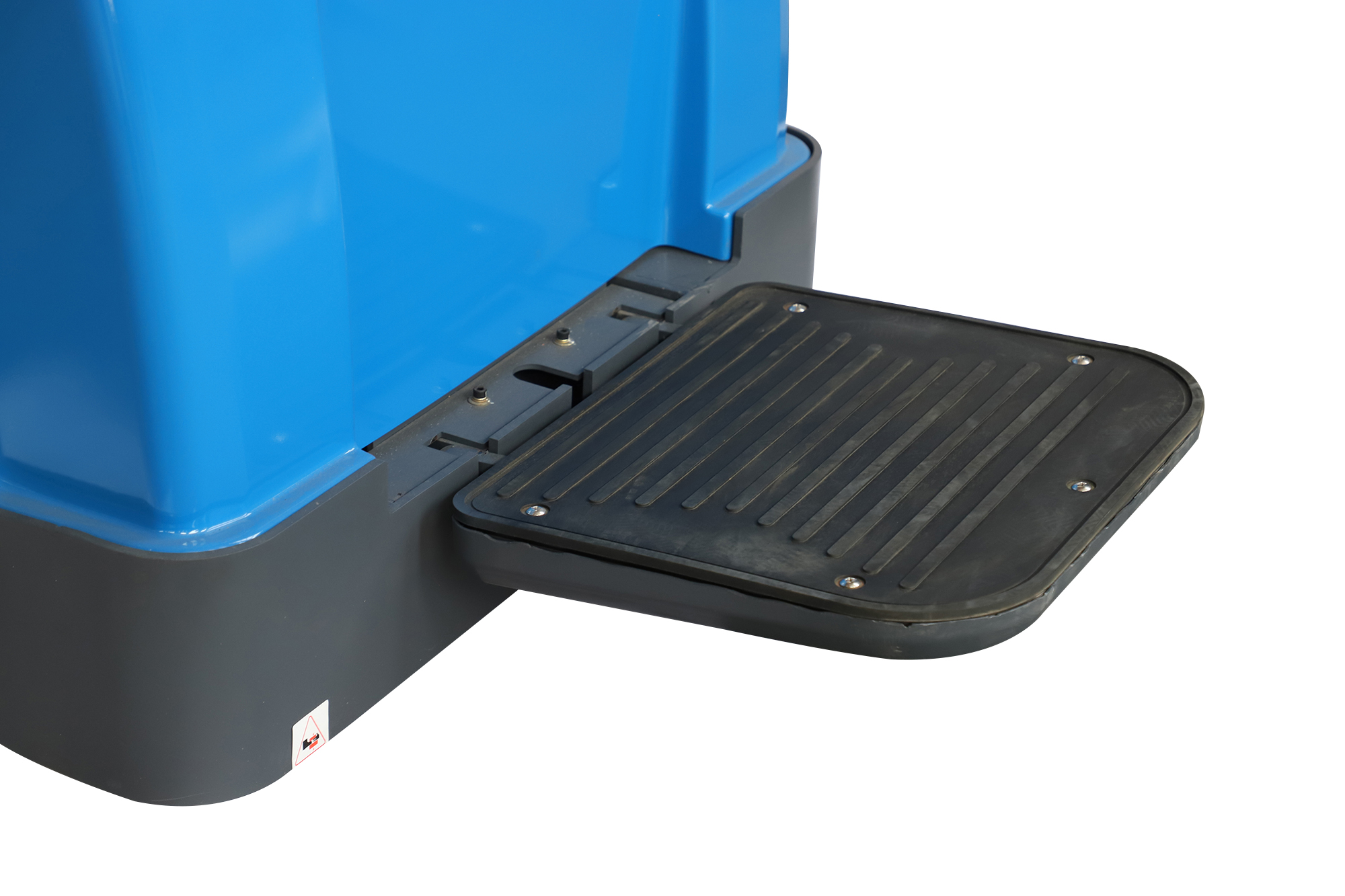

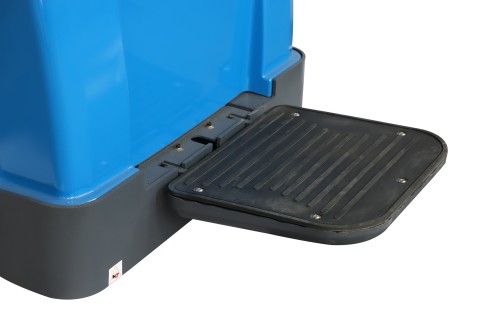

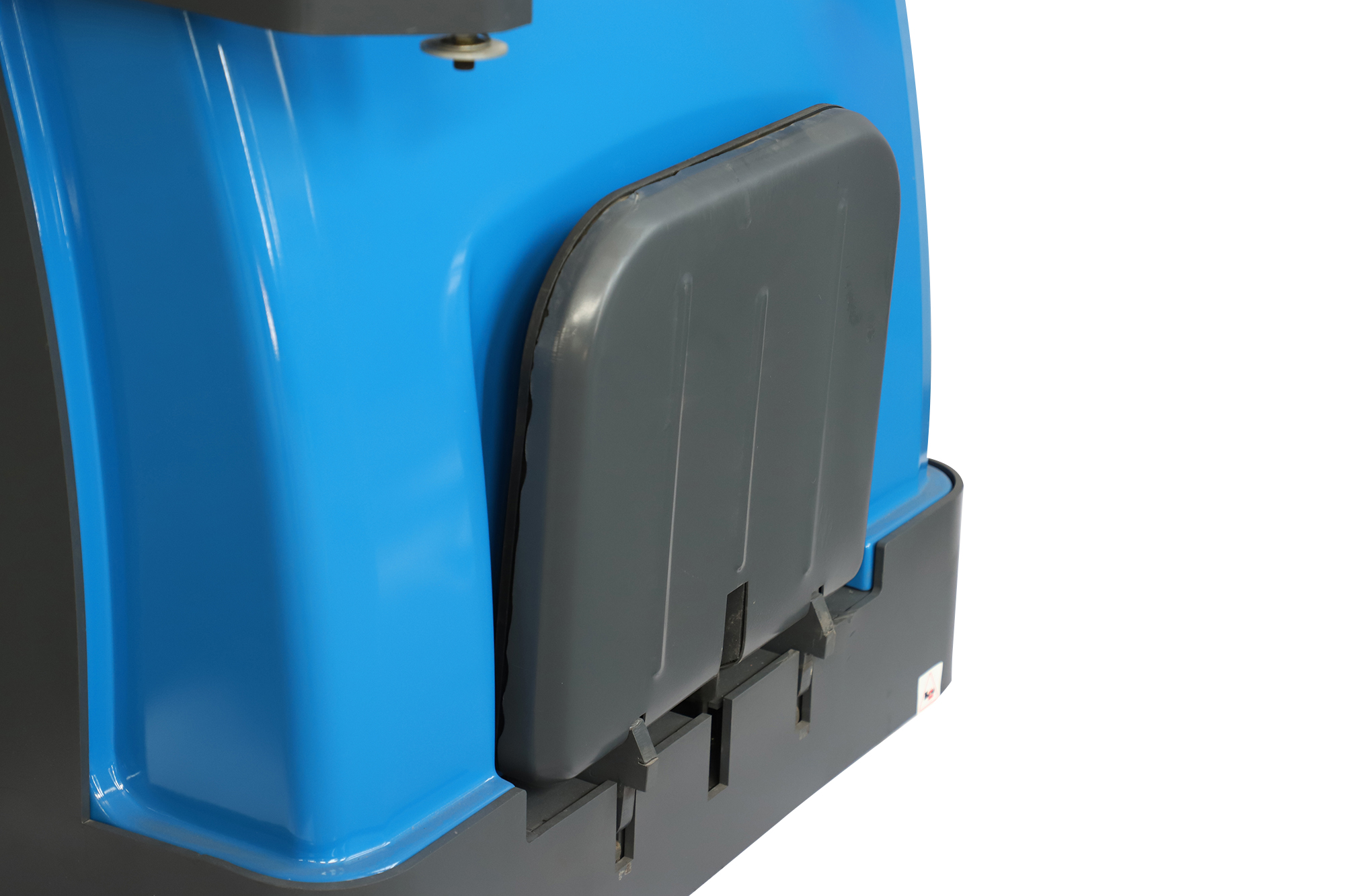

◎ Folded platform with shock absorption
◎ Automatically power supply sets turn-off as lifting as reaching the top.
How efficient is Electric Reach Forklifts with Rider Platform?Electric reach forklifts with rider platforms are very efficient, particularly in warehouses and distribution centers. With their compact size and maneuverability, they can easily navigate narrow aisles and tight spaces, making them handling materials in crowded environments. Electric reach forklifts with rider platforms also have the advantage of being emission-free and quiet, making them ideal for indoor use. They are also known for their high lifting capacity and robust performance, which enables them to efficiently transport heavy loads over short distances. Overall, electric reach forklifts with rider platforms are a cost-effective and practical solution for many material handling tasks.

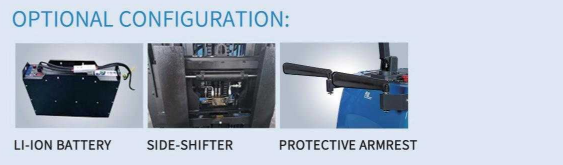

Optional Configuration:
◎ Special configuration for cold storage.
◎ Imported battery
◎ High-capacity battery 270 AH/300 AH

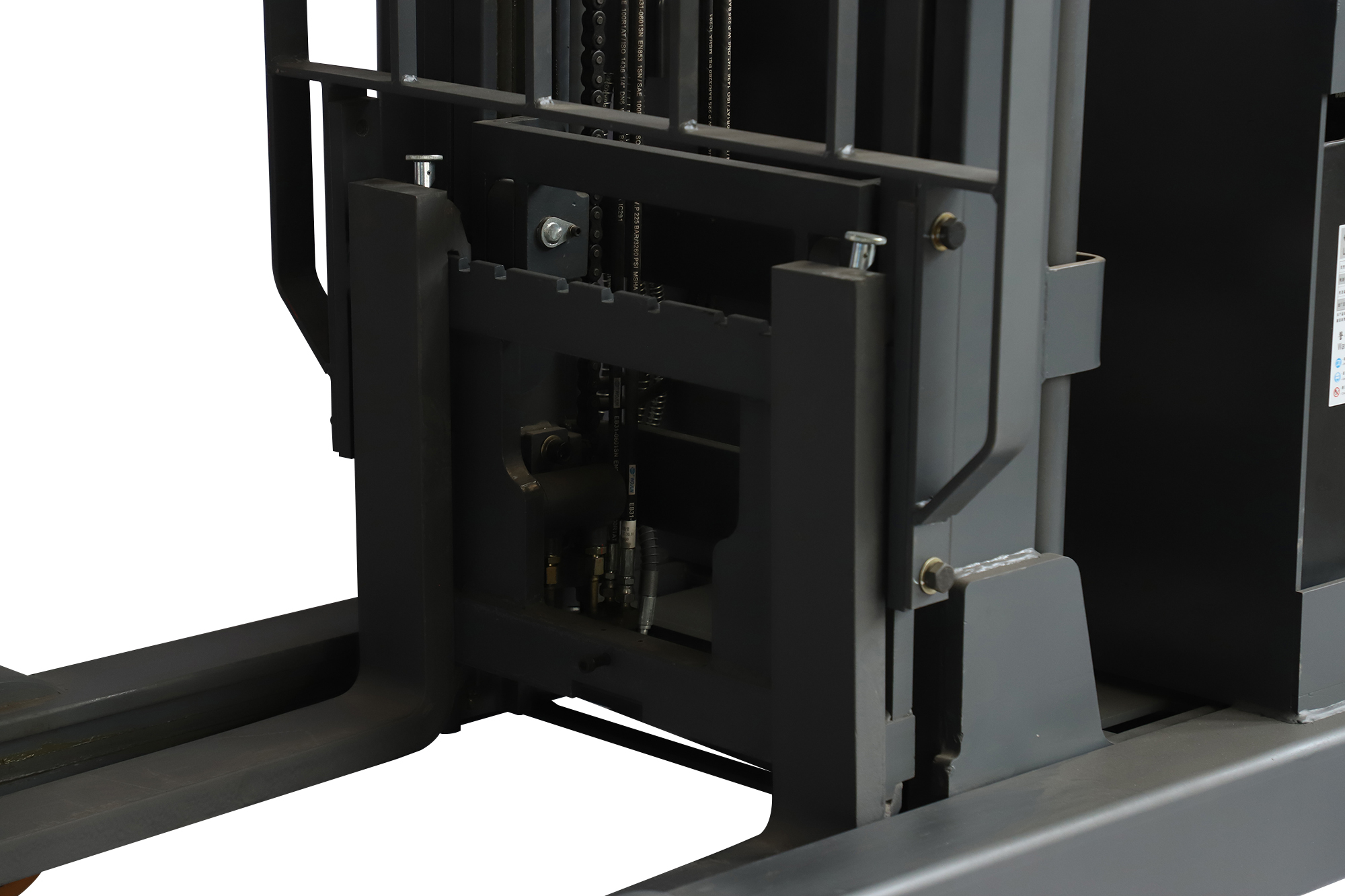

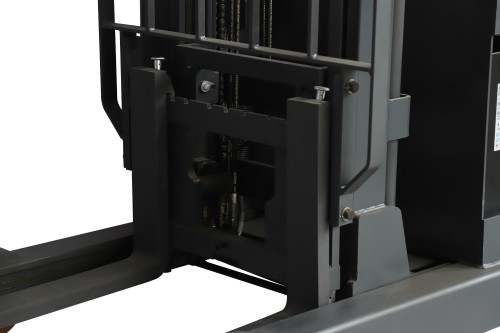

◎ Side-shifter of goods forks or forks’ carriage.
◎ Tilting of mast.

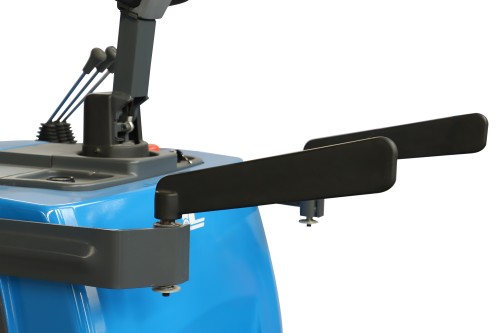

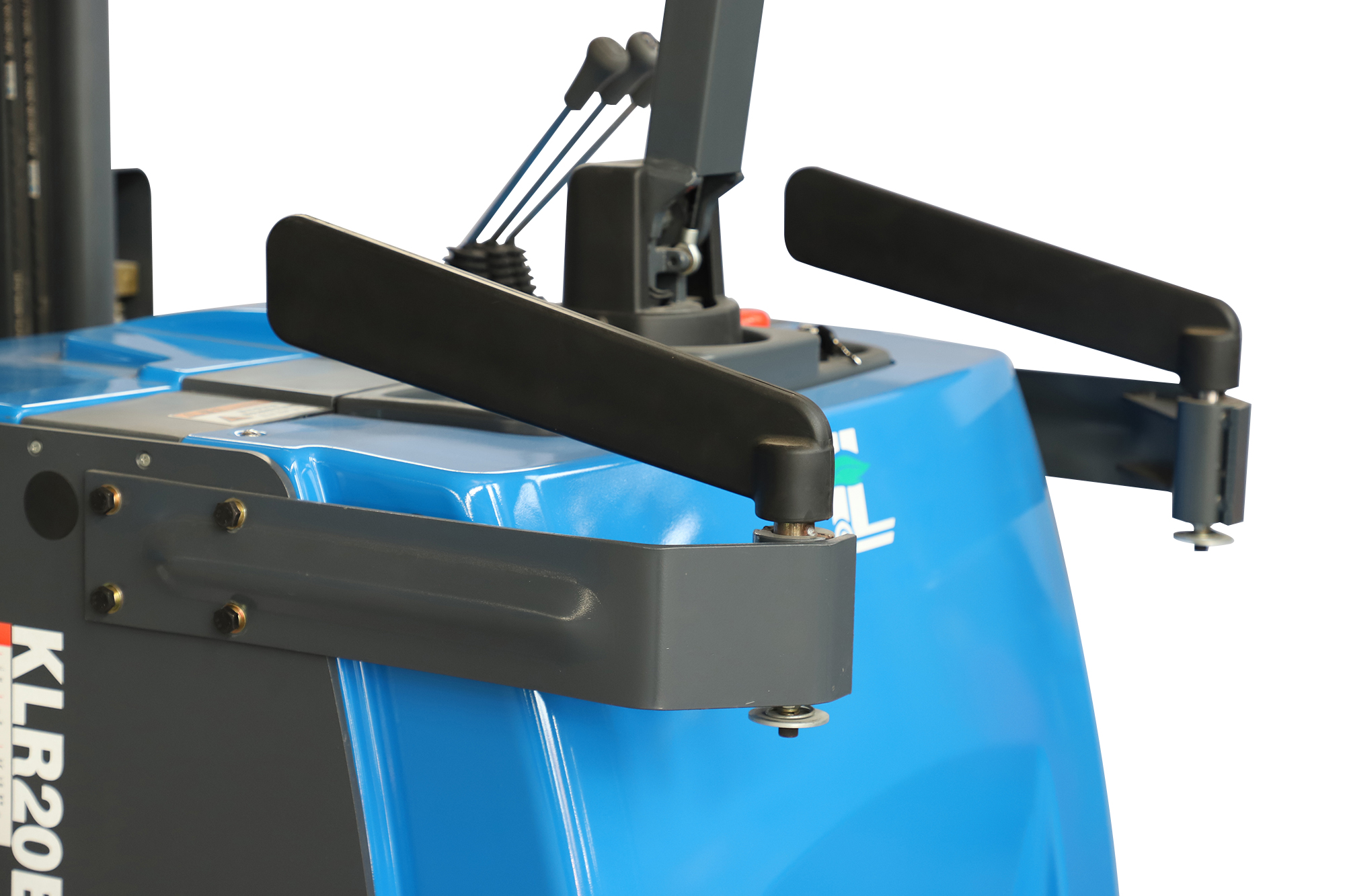

◎ Able-dismantled and folded protective armrest.
◎ Li-ion battery
Get A Quote
PREV: Klr-H Series 1.5t-2.5t 2.5m-7.5m Stand-Up Electric Reach Forklift
NEXT: KLR-C Series 1.5T-2.5T 3m~9.5m Stand-up Electric Reach Forklift
  • Product Details
  • Load Chart
  • Video
  • Contact Us
Model KLR10E KLR15E KLR20E
Performance Maximum load capacity kg 1000 1500 2000
load center Q mm 500 500 500
Maximum lifting height H3 mm 1600 1600 1600
Reach length E mm 570 570 570
Tiltiing angle (up/down) deg °  3/5  3/5  3/5
Travel speed (without load) km/h 5.2 5.2 5.2
Travel speed (with load) km/h 5.2 5.2 5.2
Lifting speed (without load) mm/s 115 115 115
Lifting speed (with load) mm/s 92 92 92
Lowering speed (without load) mm/s 173 173 173
Lowering speed (with load) mm/s 530 530 530
Gradeability(without load ) % 8 8 8
Gradeability(with load ) % 5 5 5
Service weight(with battery) kg 2102 2102 2262
Dimensions Overall length of frame excluding fork length & mast reach length L mm 1890 1890 1890
Overall length of frame excluding fork length without mast reach  with platform unfolded mm 2307 2307 2307
Overall length including fork length excluding mast reach length G mm 2420 2420 2420
Overall length including mast reach length G1 mm 2950 2950 2950
Overall width of frame B mm 1034 1034 1034
Overall height when mast lowered to lowest H1 mm 2200 2200 2200
Overall height when mast lifted to highest H4 mm 2636 2636 2641
Wheelbase Y mm 1510 1510 1510
Fork size mm 1070*35*100 1070*35*100 1070*40*100
Adjustable range of fork outside width R mm 210-700 210-700 210-700
Fork height when fork lowered to lowest  S mm 60 60 65
Min ground clearance   mm 55 55 55
Theoretical Width of minimum  aisle for right-angle  stacking （1200x1000） Asts mm 2640 2640 2640
Minimum turning radius (without platform) Wa mm 1771 1771 1771
Minimum turning radius (with platform) Wa1 mm 2193 2193 2193
Overhead guard height mm 2215 2215 2215

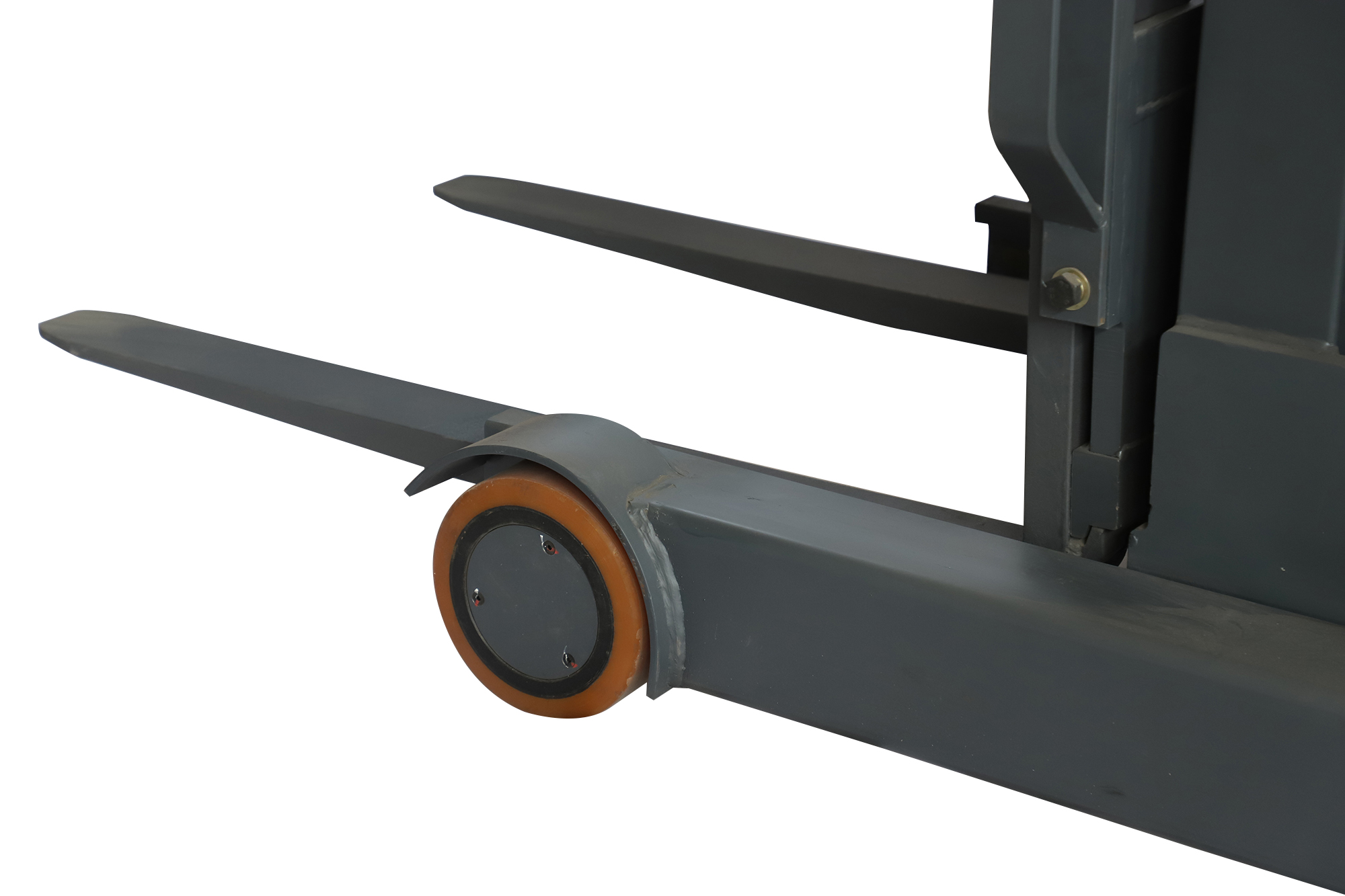

Tire Front wheel mm 210*85 210*85 210*85
Drive wheel mm 230*75 230*75 230*75
Caster wheel mm 130*55 130*55 130*55
Wheel material polyurethane
Electrical components Drive motor type AC series motor
Rated output kw 1.5 1.5 1.5
Hoist motor type DC series motor
Rated output kw 3 3 3
Battery Voltage V 24
Capacity AH 240 240 240
Weight kg 195 195 222

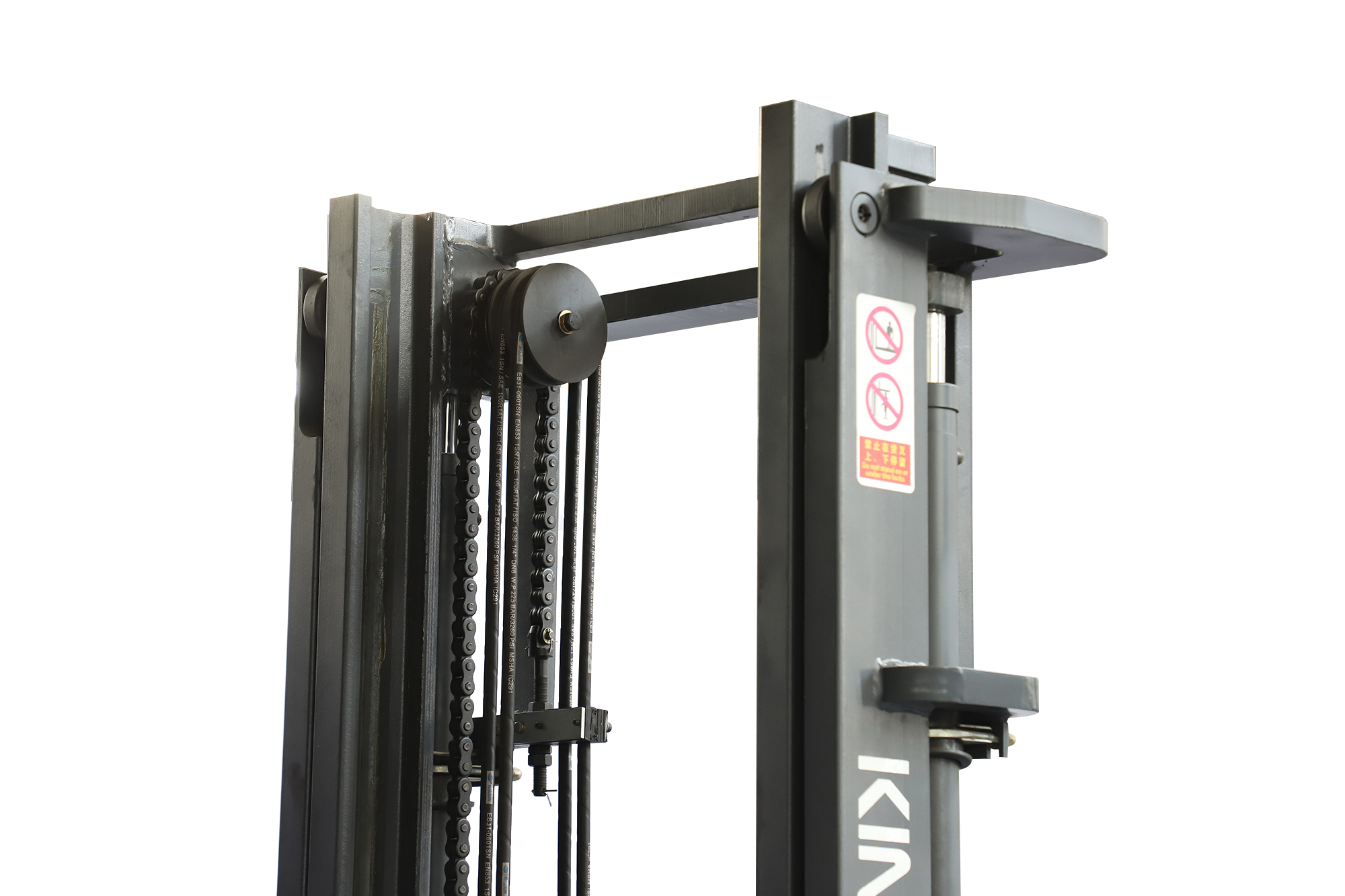

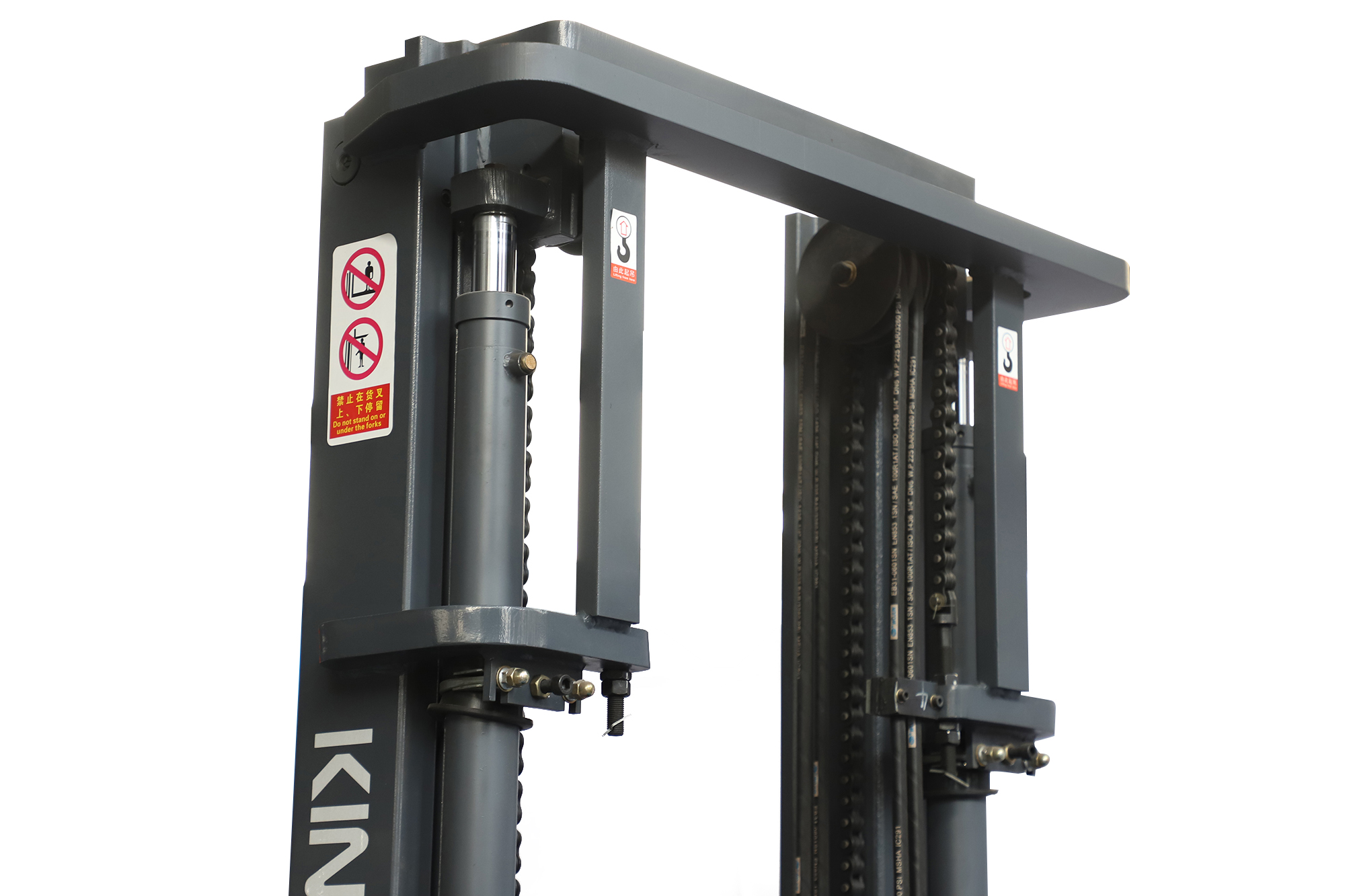

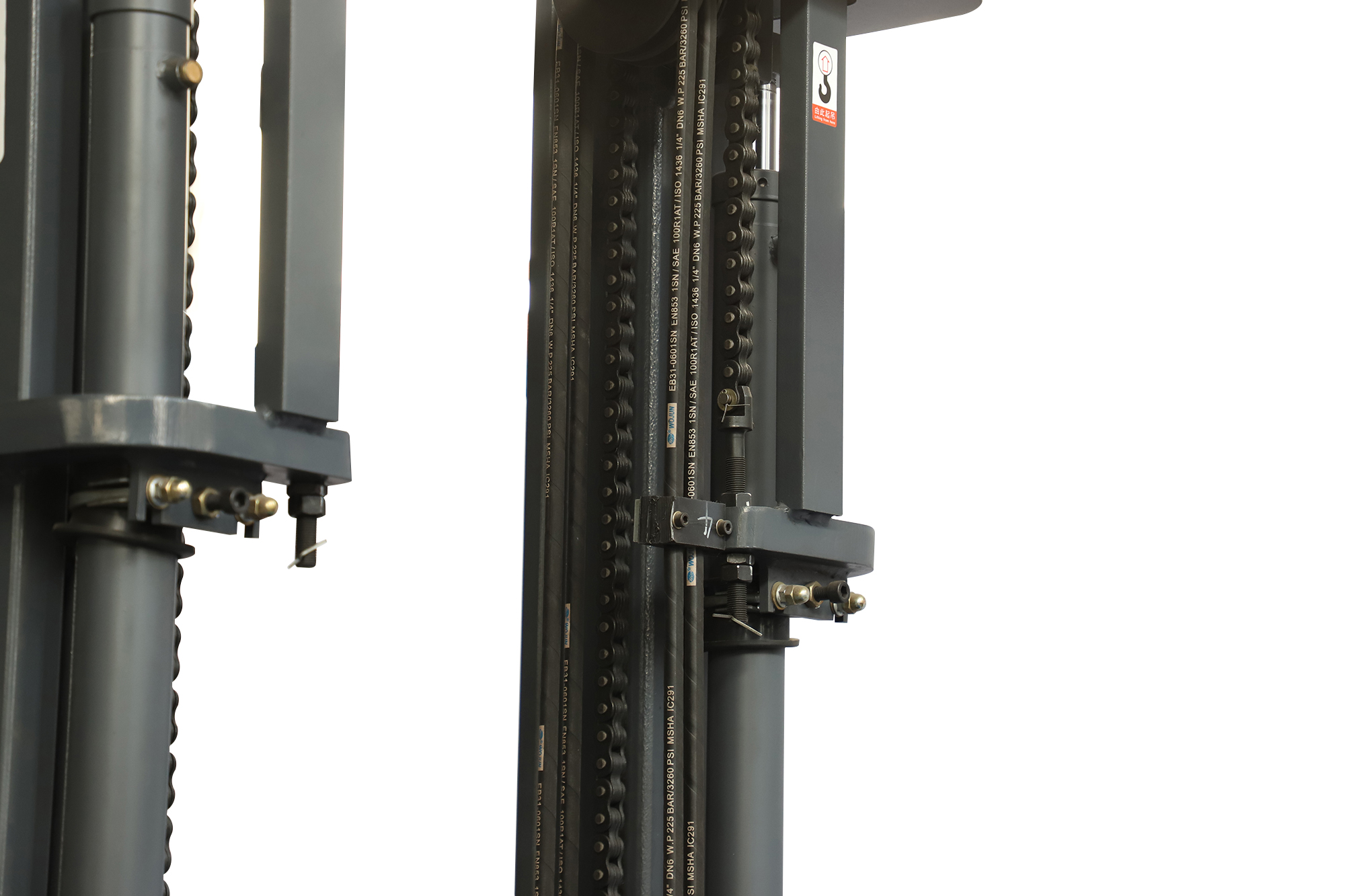

Mast type Max fork height Mast lowered 0.0Mast extended Free Lift
Simplex or Duplex mast (2stage) 2000 1475 3036
2500 1725 3536
3000 1925 4036
3500 2225 4536
4000 2475 5036
Triplex mast（3stage full free lift） 4000 1848 5013 1361/1366
4500 2015 5513 1527/1532
5000 2238 6033 1701/1706
5500 2398 6511 1859/1864
6000 2577 7035 2035/2040
