Home / Product / Electric Counterbalanced Forklift / KLA-H Series 0.8T-1.5T 1.6m~3.5m Electric counterbalanced Forklift with platform

Wholesale KLA-H Series 0.8T-1.5T 1.6m~3.5m Electric counterbalanced Forklift with platform

  • KLA-H Series 0.8T-1.5T 1.6m~3.5m Electric counterbalanced Forklift with platform
  • KLA-H Series 0.8T-1.5T 1.6m~3.5m Electric counterbalanced Forklift with platform
  • KLA-H Series 0.8T-1.5T 1.6m~3.5m Electric counterbalanced Forklift with platform
  • KLA-H Series 0.8T-1.5T 1.6m~3.5m Electric counterbalanced Forklift with platform
  • KLA-H Series 0.8T-1.5T 1.6m~3.5m Electric counterbalanced Forklift with platform
Electric Counterbalanced Forklift

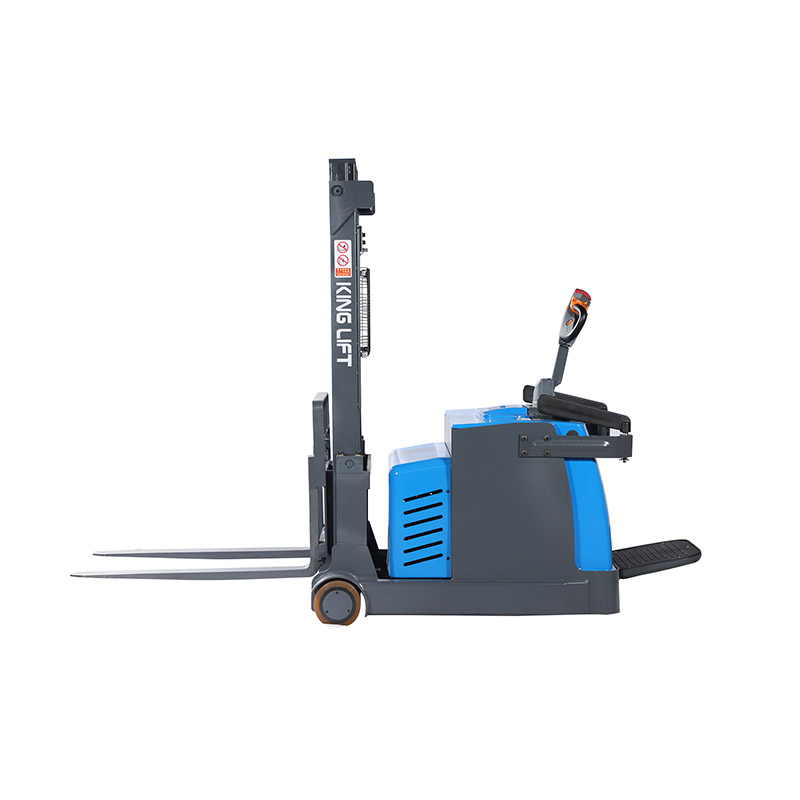

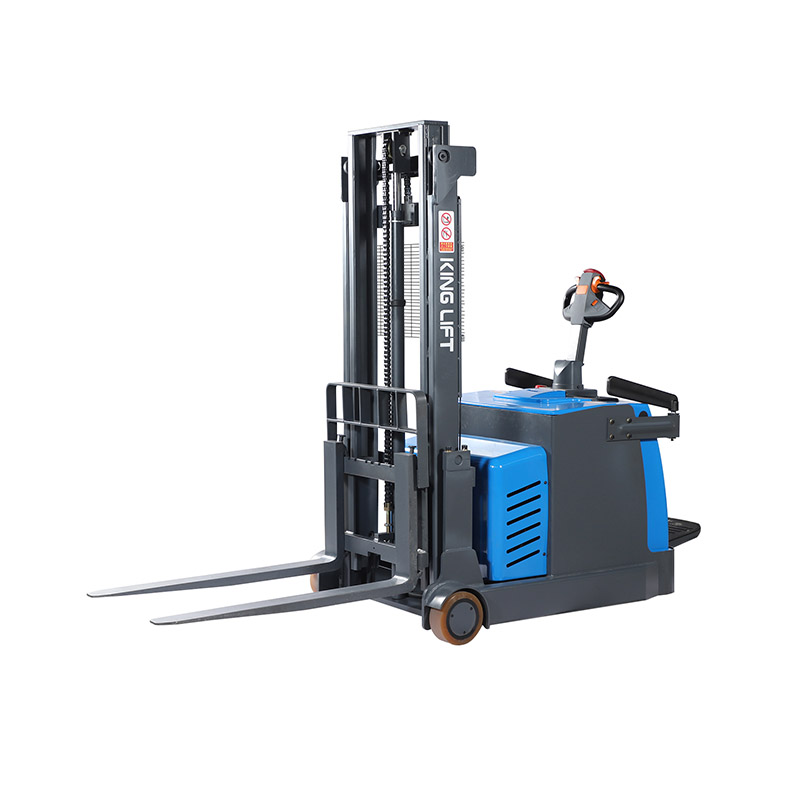

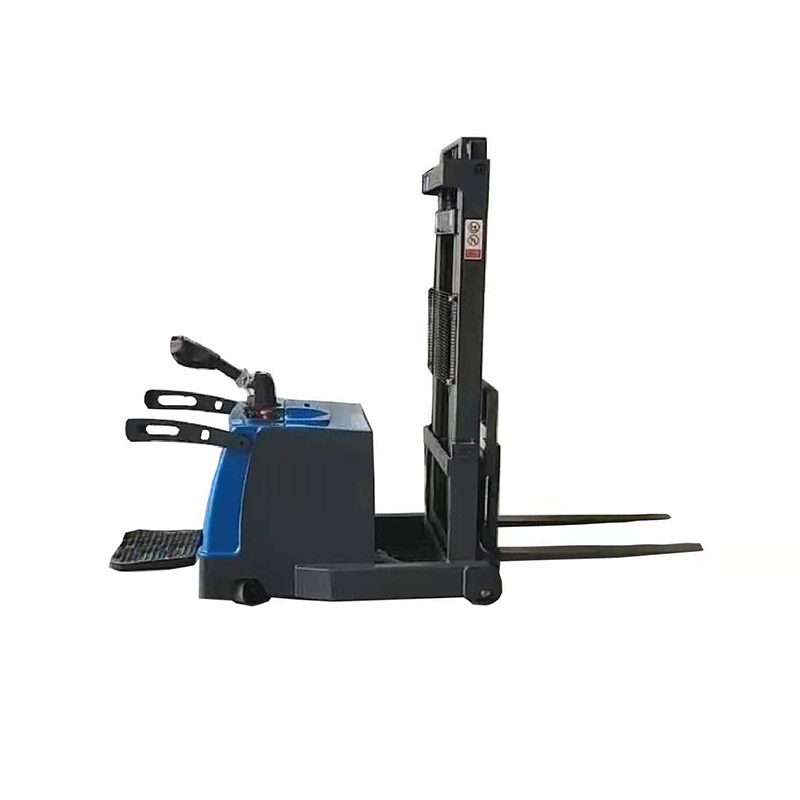

KLA-H Series 0.8T-1.5T 1.6m~3.5m Electric counterbalanced Forklift with platform

Product Profile
1.No straddle legs with counterweight, single-faced and double-faced pallets are both applicable.
2.With EPS turning system, operated by an operating handle
3.Short-wheelbase plus lightweight design, especially suits the operation on building floors and short-distance stacking.
4.Horizontal drive, the driving wheels are able - dismantled, replaced easily.
5.The mast is reinforced by side-rollers that enable the mast function more stably with less friction.
6.Use national standard 1244 leaf chain to replace traditional roller chain and enable the lifting performance much safer.

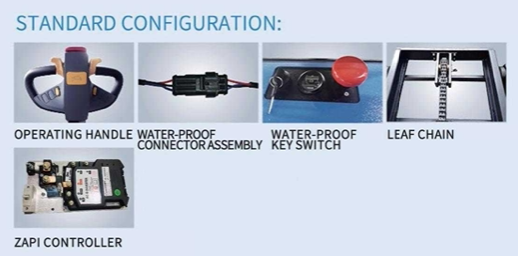

7.The vehicle is configured with main controller of KINLIFT, contactor of ALBRIGHT, water-proof connector assembly of electric power supply of AMP.
8.It performs multifunctional brakes, such as power-off brake of electromagnetic clutch, regenerating brake, reverse brake, as well as the brake against rolling down on the ramp.
9.Cut off the power supply automatically at the top lifting position.
Optional configuration
1.Special product model for refrigerated storage
2.High-capacity battery 270 AH/ 300 AH
3.Li-ion battery
Get A Quote
PREV: KLA-D Series 0.8T-1.2T 2m~3m Three wheel Electric counterbalanced Forklift
NEXT: KLA-A Series 0.8T-1.2T 1.6m~3m Walkie electric counterbalanced forklift
  • Product Details
  • Load Chart
  • Video
  • Contact Us
Model KLA08H KLA12H KLA15H
Performance Maximum load capacity kg 800 1200 1500
load center Q mm 500 500 500
Maximum lifting height H3 mm 1600 1600 1600
Travel speed (without load) km/h 5.5 5.5 5.5
Travel speed (with load) km/h 5 5 5
Lifting speed (without load) mm/s 121 121 121
Lifting speed (with load) mm/s 81 81 81
lowering  speed(without load) mm/s 105 105 105
Lowering  speed (with load)  mm/s 103 103 103
Gradeability (without load ) % 7 7 7
Gradeability (with load ) % 6 6 6
Service weight (with battery)  kg 1452 1784 1810
Dimensions（尺寸） Overall length of frame L mm 2460 2525 2904
Overall length of frame(with platform) L1 mm 2880 2945 3323
Overall width of frame  B mm 1020 1020 1020
Overall height when Mast lowered to lowest H1 mm 2095 2095 2095
Overall height when Mast lifted to highest H4 mm 2412 2412 2412
Wheelbase Y mm 986 1050 1430
Fork length  mm 1070 1070 1070
Fork spread width mm 210-670 210-670 210-670
Fork width mm 100 100 100
Fork height when fork lowered to lowest S mm 60 60 60
Min ground clearance  mm 55 55 55
Theoretical width of minimum  aisle for right-angle  stacking （1200x1000） Asts mm 2600 2660 3026
Minimum turning radius (without platform) Wa mm 1340 1400 1766
Minimum turning radius (with platform) Wa1 mm 1710 1770 2146
Tyre Front wheel mm 210*85 210*85 210*85
Drive wheel mm 250*80 250*80 250*80
Caster wheel mm 130*55 130*55 130*55
Wheel material polyurethane
Electrical components Drive motor type AC series motor
Rated output kw 1.5 1.5 1.5
Hoist motor type DC series motor
Rated output kw 2.2 2.2 2.2
Battery

 Voltage V 24
Capacity AH 160
Weight kg 150

Mast type     Max fork height Mast lowered       Mast extended
KLA08H/12H/15H KLA08H/12H/15H KLA08H/12H/15H
Simplex or Duplex mast   (2Stage) 2000 1495 2782
2500 1745 3282
3000 1995 3782
3500 2245 4282
