Electric Counterbalanced Forklift

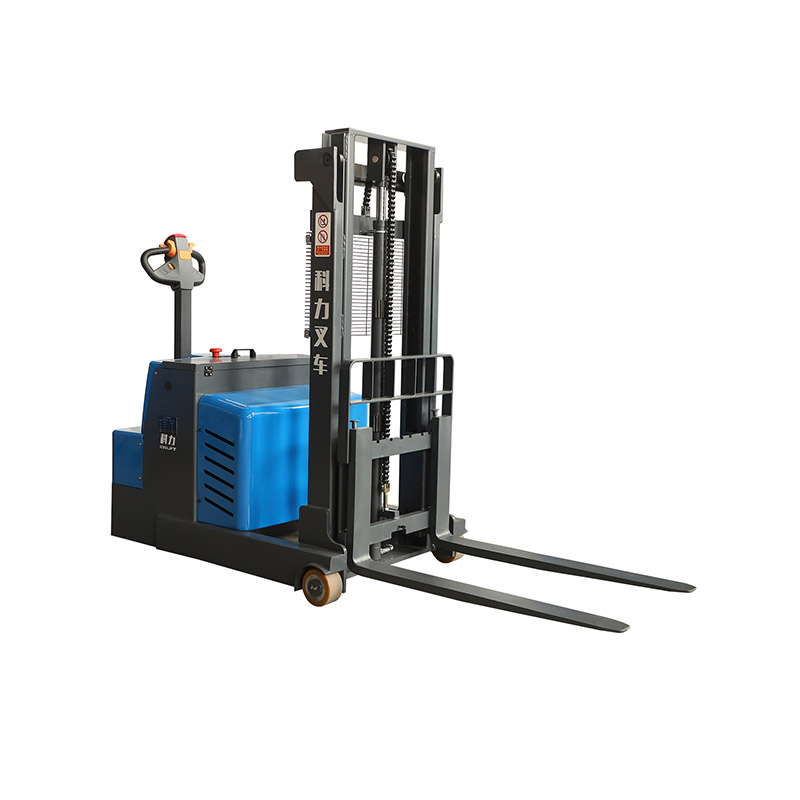

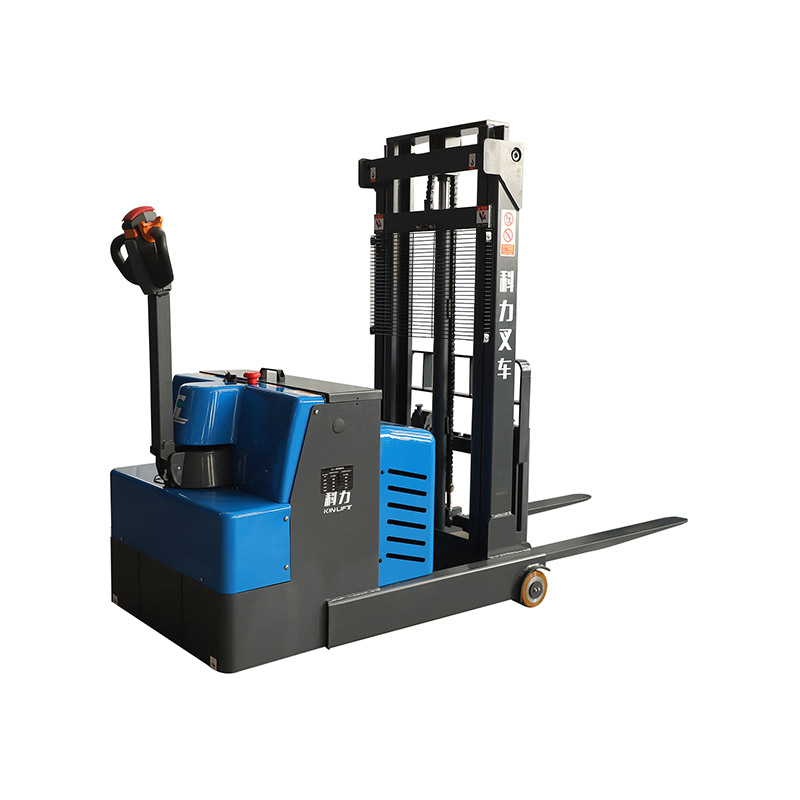

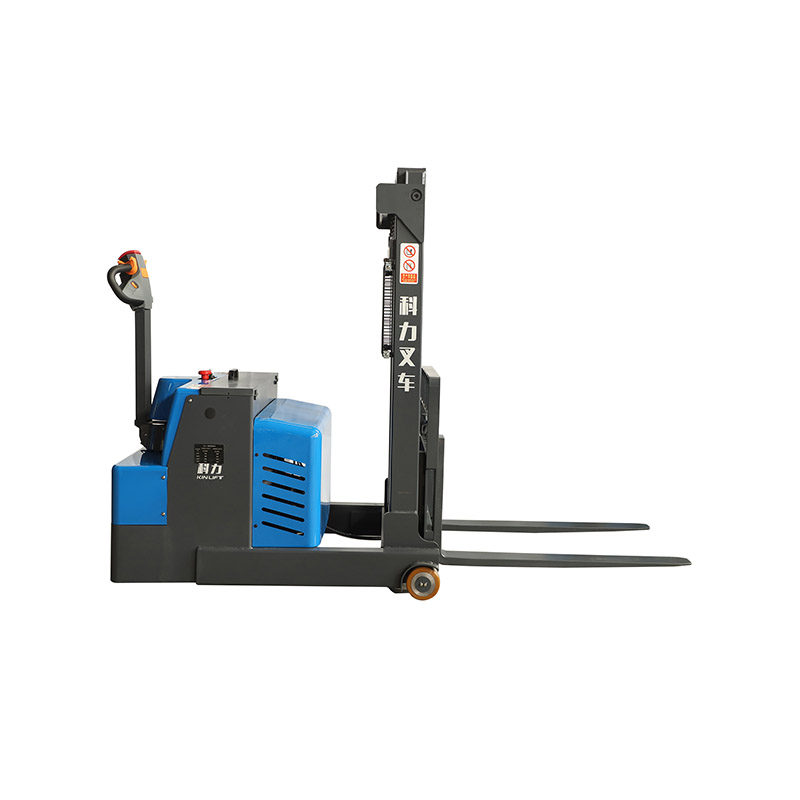

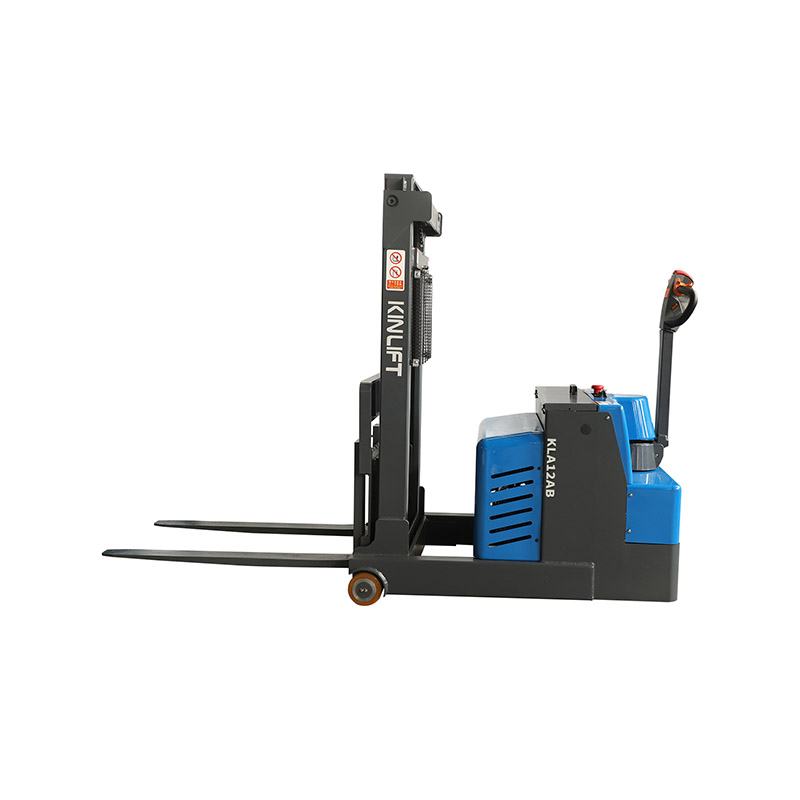

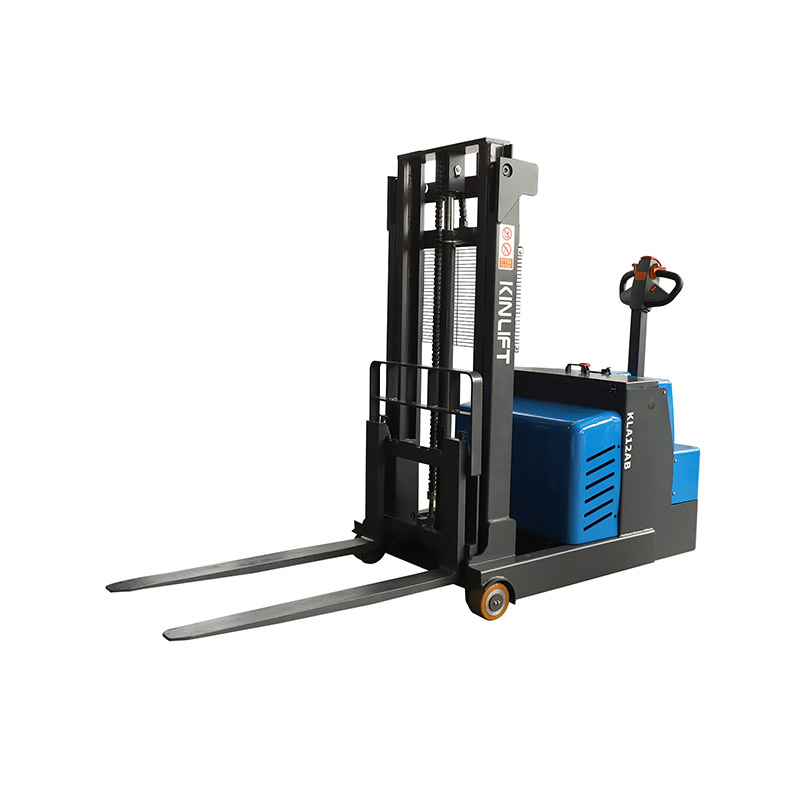

KLA-A Series 0.8T-1.2T 1.6m~3m Walkie electric counterbalanced forklift

BRIEF INTRODUCTION OF PRODUCT:
1.No straddle legs with counterweight, single-faced and double-faced pallets are both applicable.

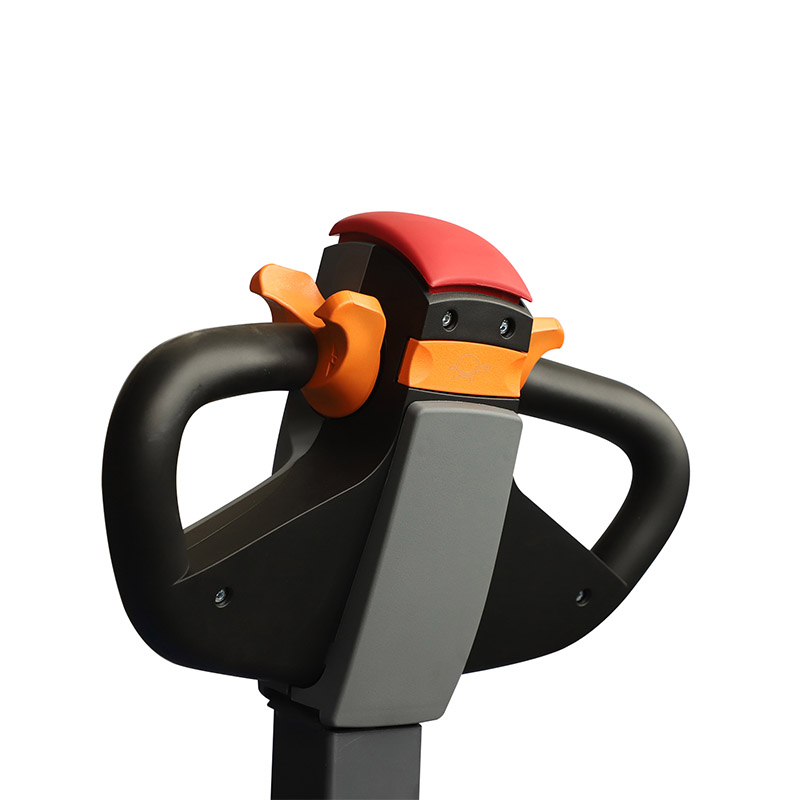

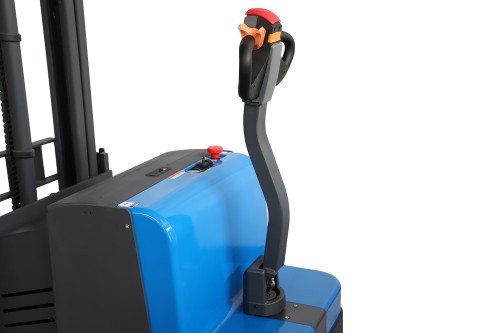

1.Mechanical steering system is the vehicle that is operated by an operating handle.
2.The vehicle is short-wheelbase plus designing for lightweight, especially applicable for the operation on building floors and short-distance stacking.
3.With horizontal drive, the driving wheels are able - dismantled and replaced easily.

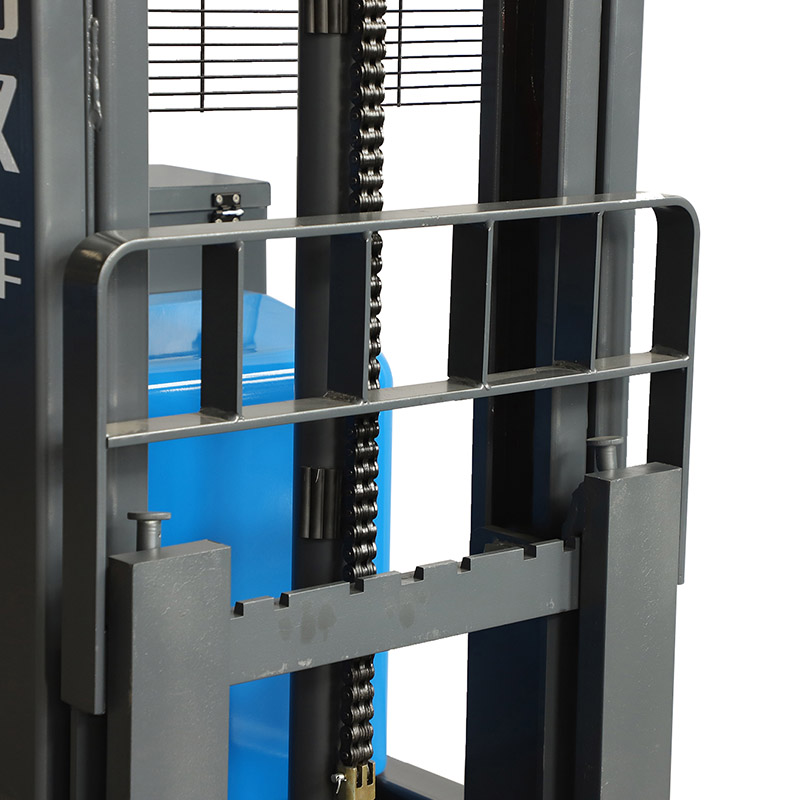

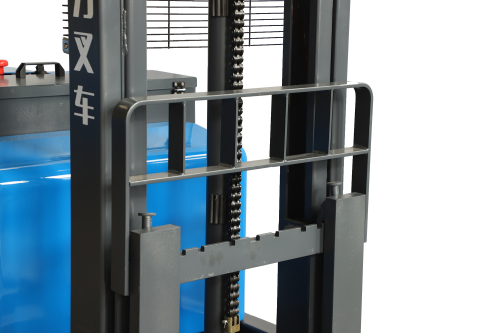

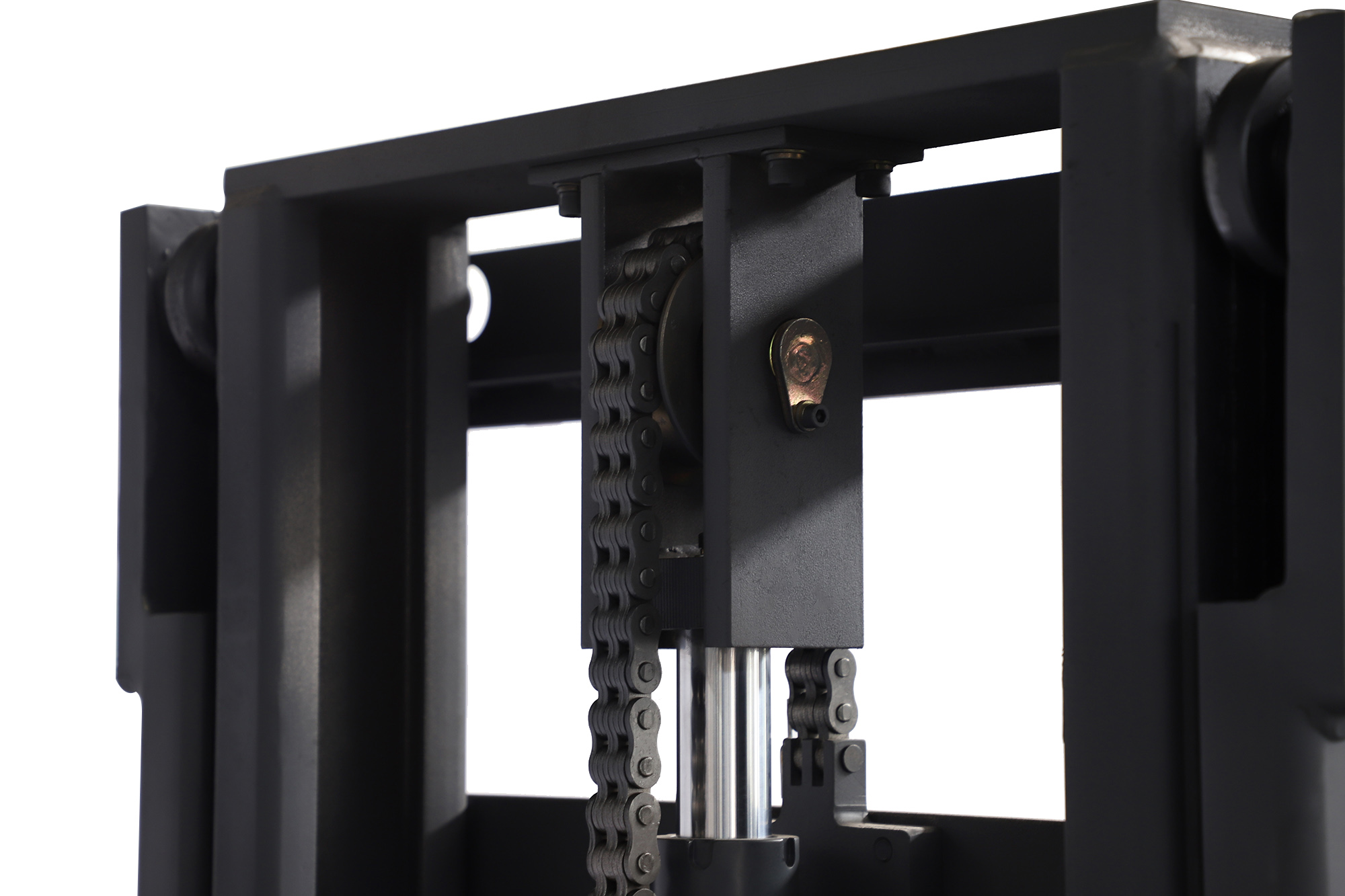

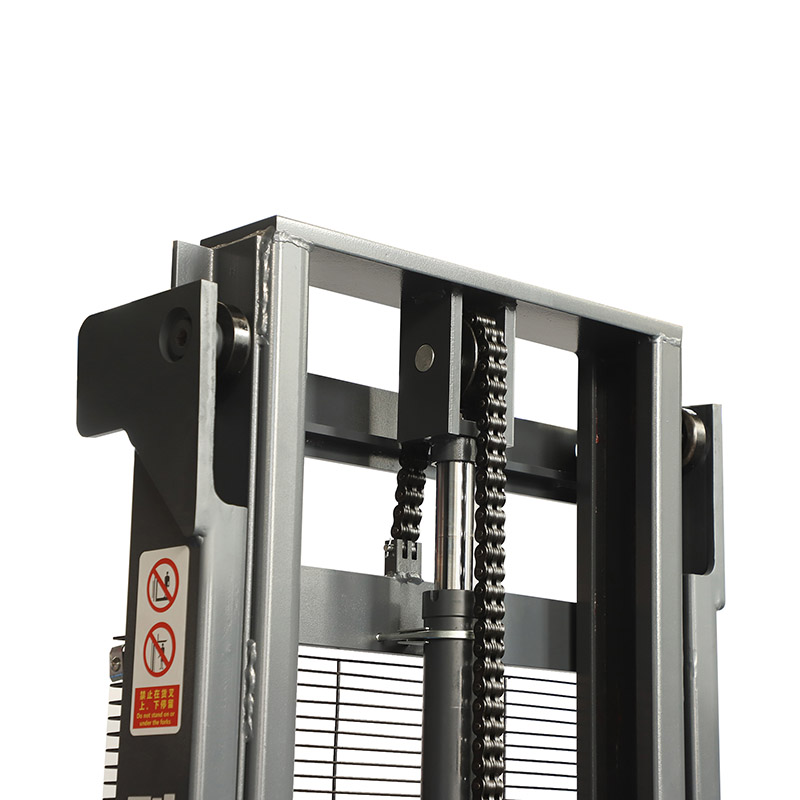

4.The mast is reinforced by side-rollers that enable the mast function more stably with less friction.
5.Use national standard 1244 leaf chain to replace traditional roller chain and enable the lifting much safer.

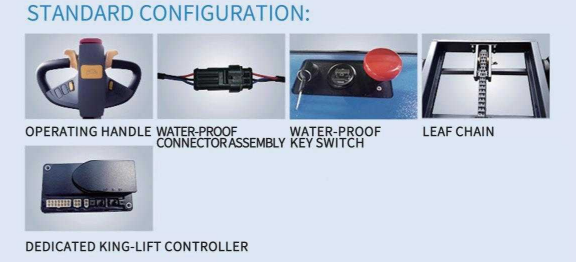

6.Main controller of KINLIFT ,Contactor of ALBRIGHT, water-proof connector assembly of electric power supply of AMP
7.Multifunctional brakes such as power-off brake of electromagnetic clutch, regenerating brake, reverse brake, as well as the brake against rolling down on the ramp.
8.Cut off the power supply automatically at the top lifting position.

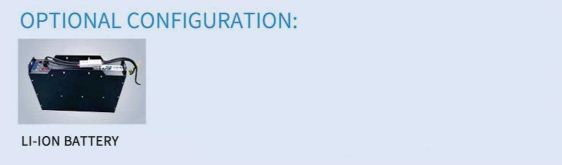

Optional Configuration
1.Special product model for refrigerated storage
2.High-capacity battery 270 AH/ 300 AH
3.Li-on battery
Get A Quote
PREV: KLA-H Series 0.8T-1.5T 1.6m~3.5m Electric counterbalanced Forklift with platform
NEXT: KLA Series 1T-2T 1.6m~4m Fully electric Counterbalanced Stackers
  • Product Details
  • Load Chart
  • Video
  • Contact Us
Model KLA08A KLA10A KLA12A
Performance Maximum load capacity kg 800 1000 1200
load center Q mm 450 450 450
Maximum lifting height H3 mm 1600 1600 1600
Travel speed (without load) km/h 5.2 5.2 5.2
Travel speed (with load) km/h 4.8 4.8 4.8
Lifting speed (without load) mm/s 121 121 121
Lifting speed (with load) mm/s 81 81 81
lowering  speed(without load) mm/s 105 105 105
Lowering  speed (with load)  mm/s 103 103 103
Gradeability (without load ) % \ \ \
Gradeability (with load ) % \ \ \
Service weight (with battery)      kg 965 1060 1190
Dimensions Overall length of frame L mm 2375 2375 2375
Overall length of frame(with platform) mm \ \ \
Overall width of frame  B mm 940 940 940
Overall height when Mast lowered to lowest H1 mm 2075 2075 2075
Overall height when Mast lifted to highest H4 mm 2376 2376 2376
Wheelbase Y mm 1145 1145 1145

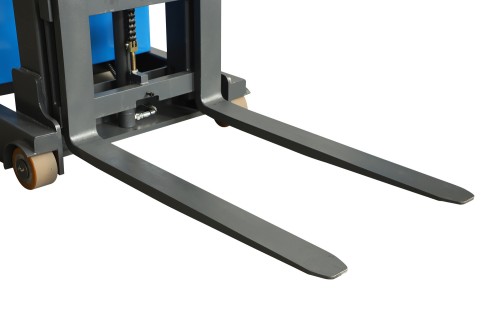

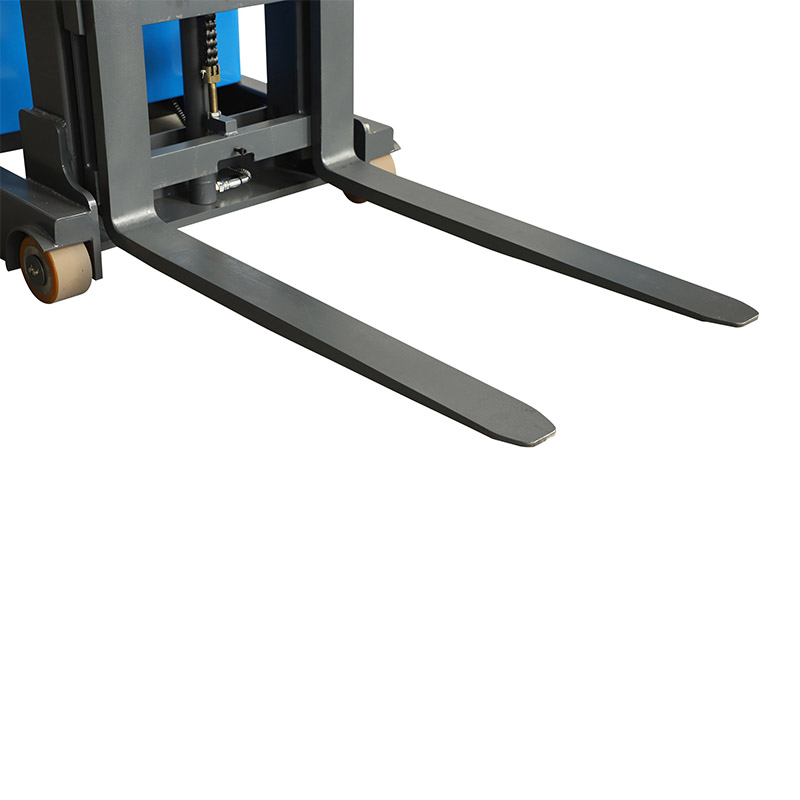

Fork length  mm 920 920 920
Fork spread width mm 210-670 210-670 210-670
Fork width mm 100 100 100
Fork height when fork lowered to lowest S mm 60 60 60
Min ground clearance  mm 40 40 40
Theoretical width of minimum  aisle for right-angle  stacking （1200x1000） Asts mm 2755 2755 2755
Minimum turning radius (without platform) Wa mm 1380 1380 1380
Minimum turning radius (with platform) Wa1 mm \ \ \

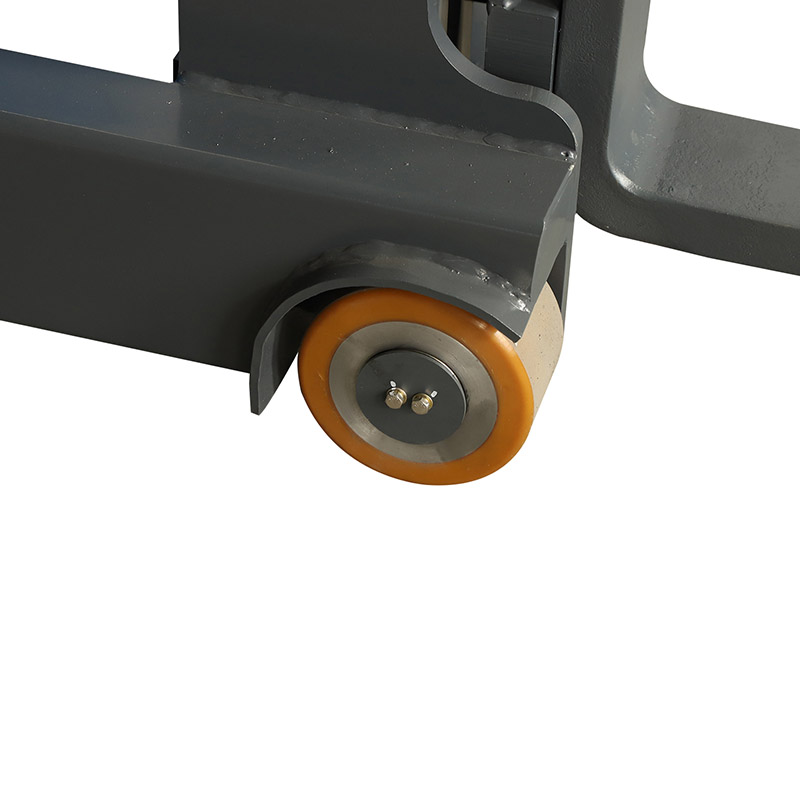

Tyre Front wheel mm 140*80 140*80 140*80
Drive wheel mm 210*75 210*75 210*75
Caster wheel mm \ \ \
Wheel material polyurethane
Electrical components Drive motor type  DC series motor
Rated output kw 0.75 0.75 0.75
Hoist motor type DC series motor
Rated output kw 2.2 2.2 2.2
Battery

 Voltage V 24 24 24
Capacity AH 100 100 100
Weight kg 35 35 35

Mast type     Max fork height Mast lowered       Mast extended
KLA08A KLA08A KLA08A
Simplex or Duplex mast   (2Stage) 2000 1470 2766
2500 1720 3266
3000 1970 3766
