Home / Product / Electric Counterbalanced Forklift / KLA-D Series 0.8T-1.2T 2m~3m Three wheel Electric counterbalanced Forklift

Wholesale KLA-D Series 0.8T-1.2T 2m~3m Three wheel Electric counterbalanced Forklift

  • KLA-D Series 0.8T-1.2T 2m~3m Three wheel Electric counterbalanced Forklift
  • KLA-D Series 0.8T-1.2T 2m~3m Three wheel Electric counterbalanced Forklift
  • KLA-D Series 0.8T-1.2T 2m~3m Three wheel Electric counterbalanced Forklift
  • KLA-D Series 0.8T-1.2T 2m~3m Three wheel Electric counterbalanced Forklift
Electric Counterbalanced Forklift

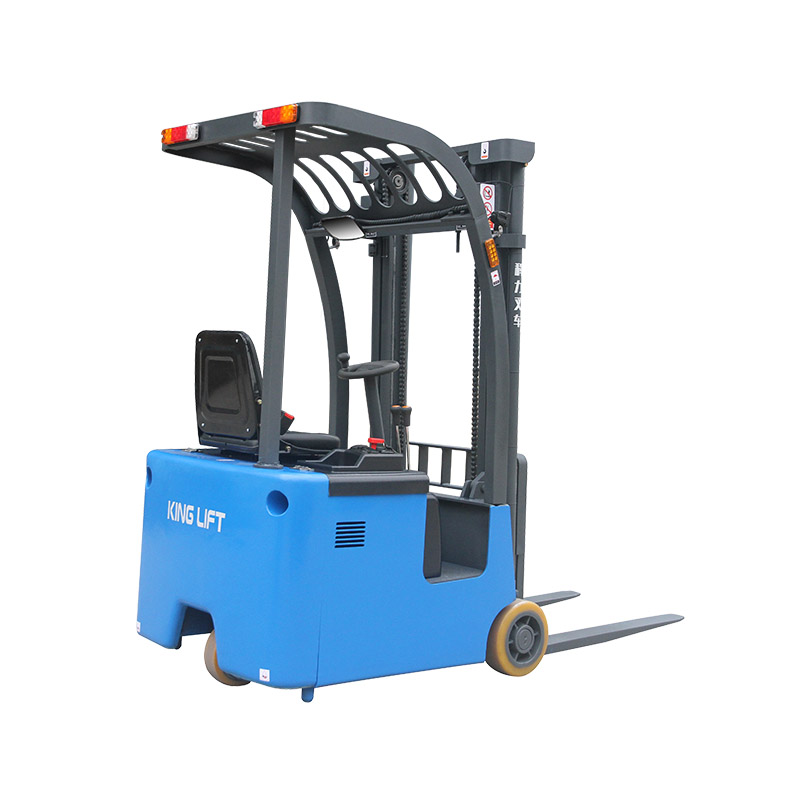

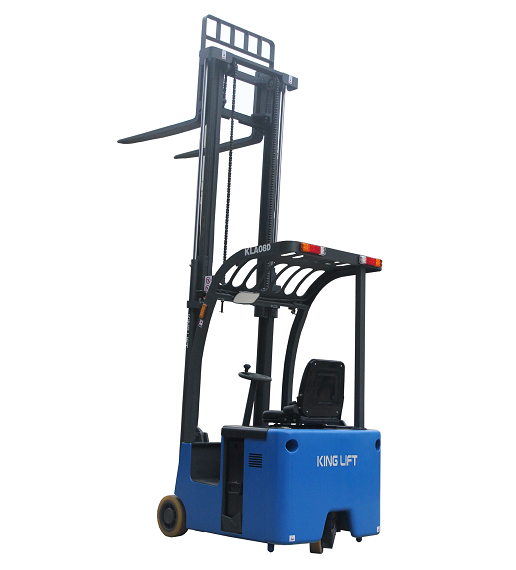

KLA-D Series 0.8T-1.2T 2m~3m Three wheel Electric counterbalanced Forklift

No straddle legs with counterweight, single-face and double-face pallets are both applicable.
Short-wheelbase for stacking across narrow aisle suit operating on some building floors.
Tilting performance of mast

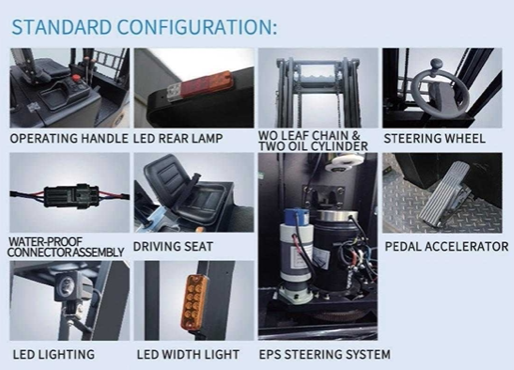

Operated by a steering wheel
EPS turning system enables the operator steer the 3-wheeler with less force, increasing the sensitivity, improving the characteristics of steering reversal. So the travel speed slows down automatically as travelling on the curve to make the driving easier and safer.
Vertical drive of AC engine is no need carbon brush, having a better start function and regenerating braking function on the ramp, effectively increasing the work efficiency and service duration of electric engine plus more energy-saving.
With humanized operating platform, data cable can plug into the USB port matched.
Lifting by double chains and two oil cylinders, which enables the view of operator  better.
The bigger front wheels improve the passage capacity.
The vehicle is configured with main controller of ZAPI, Contactor of ALBRIGHT, water-proof connector assembly of electric power supply of AMP.
Side-pulling design of battery replacement that enables the forklift keep working continuously.
Side-pulling battery design is better for replacement and maintenance.
Adjustable safety seat enables the driver safer and more comfortable.
Integrated control system of high-frequency MOS tube.
LED work lamp, LED width lamp, LED rear lamp
Cut off power supply automatically at the top height.

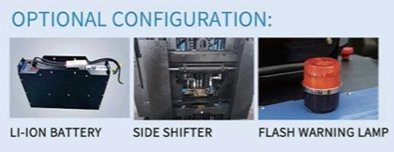

Optional configuration
1.Special model of refrigerated storage
2.Warning flash lamp
3.Imported battery
4.Side-shifter of forks
5.Li-ion battery
Get A Quote
PREV: KLA-E Series 0.6T-1.2T 1.6m~4m Short-wheelbase Electric counterbalanced truck
NEXT: KLA-H Series 0.8T-1.5T 1.6m~3.5m Electric counterbalanced Forklift with platform
  • Product Details
  • Load Chart
  • Video
  • Contact Us
Model KLA08D KLA10D KLA12D
Performance Maximum load capacity kg 800 1000 1200
load center Q mm 500 500 500
Maximum lifting height H3 mm 2000 2000 2000
Front Overhang X mm 165 165 165
Tiltiing angle (up/down) deg ° 3/6 3/6 3/6
Travel speed (without load) km/h 5.5 5.5 5.5
Travel speed (with load) km/h 5 5 5
Lifting speed (without load) mm/s 97 97 97
Lifting speed (with load) mm/s 75 75 75
lowering  speed(without load) mm/s 130 130 130
Lowering  speed (with load) mm/s 140 140 140
Gradeability (without load ) % 7 7 7
Gradeability (with load ) % 6 6 6
Service weight (with battery)       kg 1950 1950 2150
Dimensions（尺寸） Overall length of frame L1 mm 2270 2270 2270
Overall width of frame B1 mm 1150 1150 1150
Overhead guard height H5 mm 1950 1950 1950
Overall height when Mast lowered to lowest H1 mm 1493 1493 1493
Overall height when Mast lifted to highest H4 mm 2775 2775 2775
Wheelbase Y mm 920/1005 920/1005 920/1005
Fork length  mm 920 920 920
Fork spread width mm 210-680 210-680 210-680
Fork width mm 100 100 100
Fork height when fork lowered to lowest S mm 60 60 60
Min ground clearance  mm 73 73 73
Theoretical width of minimum  aisle for right-angle  stacking （1200x1000） Asts mm 2500 2500 2500
Minimum turning radius  Wa mm 1188 1188 1188
Tyre Front wheel mm 305*127 305*127 305*127
Drive wheel mm 250*75 250*75 250*75
Wheel material polyurethane
Electrical components Drive motor type  AC series motor
Rated output kw 1.5 1.5 1.5
Hoist motor type DC series motor
Rated output kw 2.2 2.2 2.2
Battery

 Voltage V 24
Capacity AH 210
Weight kg 195

Mast type     Max fork height Mast lowered     Mast extended
KLA08D/10D/12D KLA08D/10D/12D KLA08D/10D/12D
Simplex or Duplex mast   (2Stage) 2000 1493 2775
2500 1743 3275
3000 1993 3775
