KLD-H Series 1.3m 0.5t-1t Electric Walkie Stacker

The Electric Walkie Stacker features a double linkage oil cylinder assembly that alternates between locking and lifting. It is equipped with a three-position four-way valve oil circuit control system, enabling synchronized movement between the lifting rod and fork, as well as the cylinder body and machine body door seat. When the movable door seat and fork shift relative to each other, one component is securely supported and positioned on the ground or carriage to ensure stability. Designed with a lightweight concept, it incorporates a force balance fulcrum at the carriage edge, a counterweight on the fork head, and weight reduction on the door column frame tail. The main components utilize stretching and hole turning processes for reliable force and guaranteed strength. A swinging guide wheel under the movable door seat smoothly pushes the body into the carriage, facilitating maintenance and adjustment. Handrails on both sides of the door frame enhance ease and speed in pushing and pulling goods. This versatile stacker can follow and walk alongside a van, enabling self-loading and unloading of the truck, thereby addressing the challenge of stacking and handling in the final ten meters of logistics distribution efficiently.

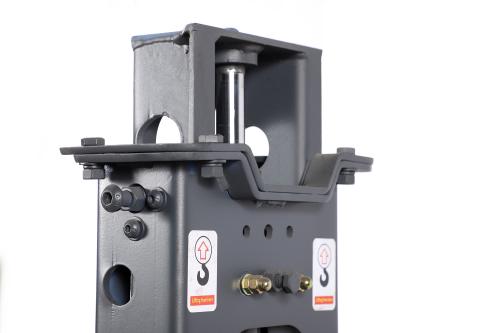

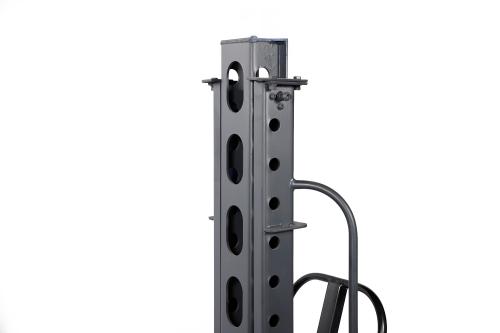

mast	oil cylinder	pull handle

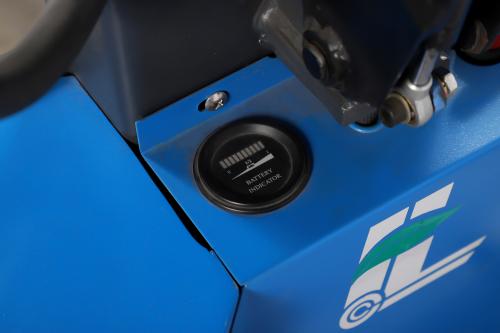

battery indicator

1.Double linkage oil cylinder assembly, locking and lifting alternately.

2.Three-position four-.way valve oil circuit control system, lifting rod and fork linkage, cylinder body and machine body door seat linkage.

3.When the movable door seat and fork move relative to each other,one component must be supported and positioned on the ground or cariage before it can

move.

4.lightweight design concept,force balancefulcrum at the edge ofthe cariage, fork head adds countenweight,door column frame tal reduces weight, maincomponents use stretching and hole tuming process, force is reliable, strength is guaranteed.

5.Swinging guide wheel is instaled under the movable door seat o push the body into the carriage smoothly,which is convenient for maintenance and adjustment0 Handralils are installed on both sides of the door frame, which makes it more convenient and quick to push and pull goods.

6.lt can follow the van and walk with the vehicle, and can realize self-loading and loading of the truck, which perfectly solves the problem of stacking and handlingin the last ten meters of logistics distribution.
