KLD-K Series 1.6m 2t Electric Walkie Stacker

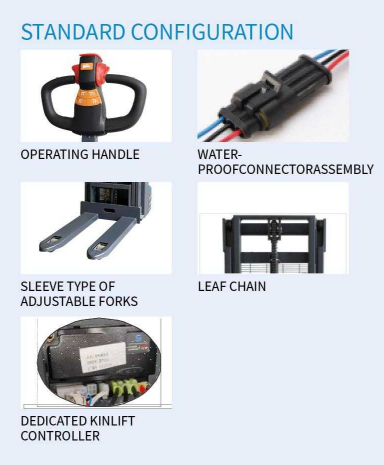

Mechanical turning system, operated by an operating handle

equipped with horizontal drive, drive wheel is able-dismantled and easily replaced

The mast is reinforced by precise steel side-roller, guiding to diminish the frictionand effectively boosts the stability of the machine.

Adopt national standard 1244 leaf chain replace traditional roller chain, whichenables the lifting operation of goods safer.

Straddle legs are made of solid strap iron, which enables the bearing force of the legs stronger.

configured with kinlift dedicated controller , contactor of albright. and water-proofconnector assembly of electric power supply of amp.

The stacker performs multifunctional brakes such as power-off brake of electromagnetic clutch, regenerating brake, reverse brake, as well as the brake against rolling down on the ramp.

Sleeve type of adjustable forks are flexible and convenient to use.

Cut off power supply automatically at the top lifting height.

Can implement upright travel at tortoise speed.

1233 chain	supporting wheel

1. Special model of refrigerated storage

2. Fixed forks

3. Wider straddle legs customized

4. Li-ion battery

The KLD-K Series 1.6m 2t Electric Walkie Stacker features mechanical steering with handlebar operation for intuitive control. It boasts a horizontal drive system, where the drive wheels are removable and incredibly easy to replace. Precision steel side rollers are installed on the door frame to serve as guides and minimize friction, significantly enhancing the stability of the forklift truck's frame. The adoption of the national standard 1244 plate chain replaces the traditional roller chain, ensuring safer cargo lifting operations. The legs are constructed from solid flat iron, providing superior load-bearing strength. The forklift is equipped with a Keli special controller, an ALBRIGHT contactor, and an AMP waterproof power connector for reliable performance. It also features an electromagnetic clutch with multiple braking functions, including power failure brake, regenerative brake, reverse brake, and ramp anti-slip brake for enhanced safety. The sleeve-type adjustable pitch forks offer greater flexibility and convenience in use. Additionally, it automatically powers off after raising, and realizes turtle speed upright walking for precise maneuvering.
